MIG/MAG Operating Modes
General
WARNING!
Operating the device incorrectly can cause serious injury and damage to property.
▶
Do not use the functions described here until you have fully read and understood the
Operating Instructions.
▶
Do not use the functions described here until you have fully read and understood all
of the Operating Instructions of the system components, especially the safety rules.
For details of the meaning, settings, setting range and units of the available welding
parameters (e.g., gas pre-flow time), please refer to the "Setup parameters" chapter.
Symbols and
explanations

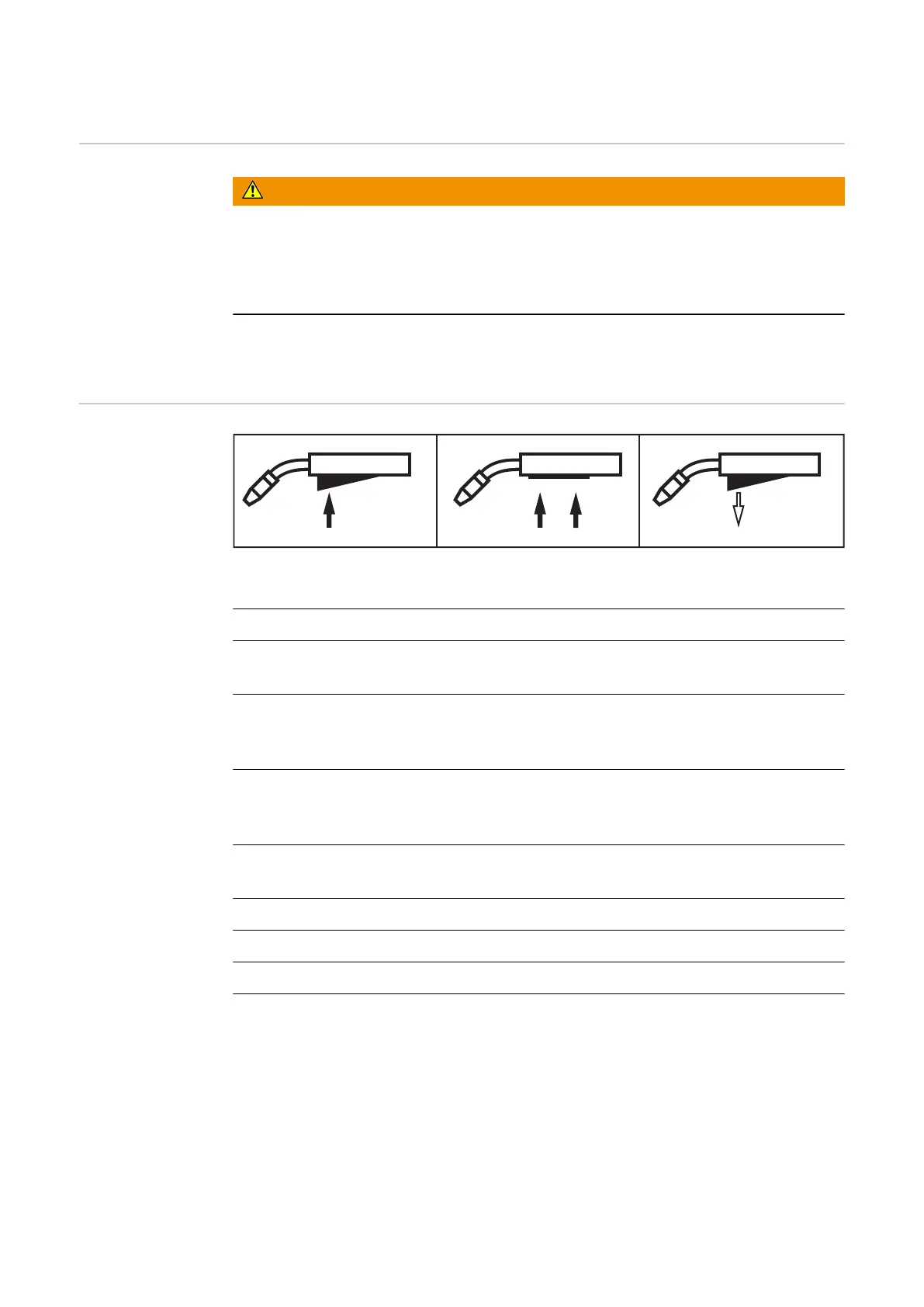

Press the torch trigger | Hold the torch trigger | Release the torch trigger
GPr Gas pre-flow time
I-S Starting current
Can be increased or decreased depending on the application
SL Slope
Starting current is continuously lowered as far as the welding current and the
welding current as far as the final current
I Welding current phase
Even heat input into the parent material whose temperature is raised by the
advancing heat
I-E Final current
To fill up end-craters
GPo Gas post-flow time
SPt Spot welding time / interval welding time
SPb Interval pause time
62
