ASSEMBLY
11
MTF−051059L
TOOLS REQUIRED FOR ASSEMBLY
1 − Knife
2 − 1/2” wrenches (or adjustable wrenches)
2 − 9/16” wrenches (or adjustable wrenches)
2 − 3/4” wrenches (or adjustable wrenches)
1 − 3/8” wrenches (or adjustable wrenches)
1 − Pair pliers or screw driver (to spread cotter pin)
HOW TO MEASURE SCREW SIZE
LENGTH
DIAMETER
CONTENTS OF SHIPPING CARTON
1− Snowthrower
1− Container of Fuel Stabilizer (Located in Parts Bag)
1− Parts Bag
WARNING: Always wear safety glasses or eye
shields while assembling snowthrower.

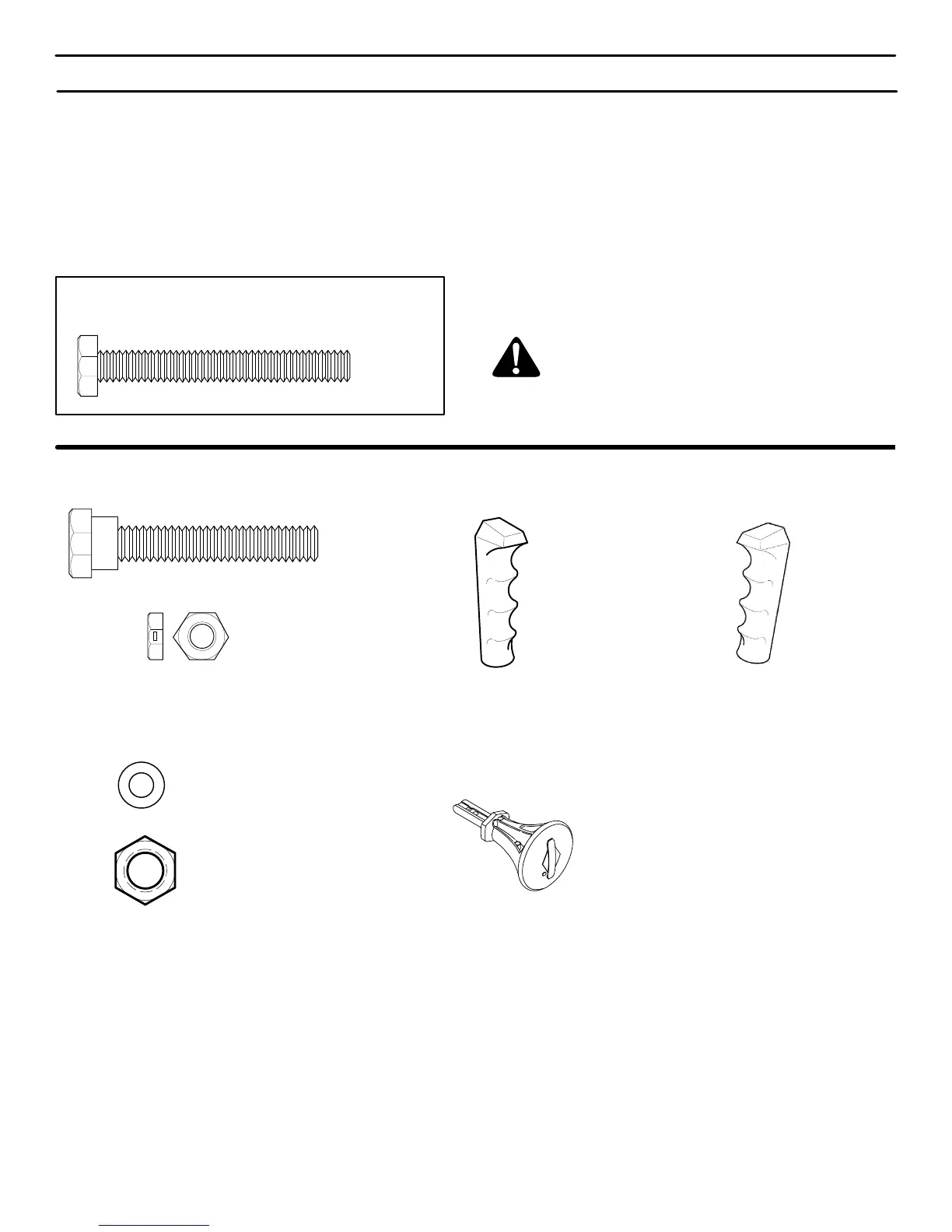

PARTS BAGS CONTENTS:
*2− Shear Bolt
*2− Nut
1 − Shift Lever Knob
(not actual size)
1 − Washer
1 − Nut
1 − Remote Chute
Knob (not actual size)
1 − Ignition Keys
