ASSEMBLY
14
MTF−051059L
REMOTE CHUTE CONTROL KNOB
1. Assemble the remote chute knob onto the lever until
snug against the nut (see Figure 8).
2. Make sure lip on the remote chute knob is pointed to-
ward the engine.
3. Tighten the nut against the bottom of the remote chute
knob.
SPEED SELECT KNOB
1. Thread the knob onto the lever as far as possible. Make
sure that the knob points forward (See Figure 8).
2. Tighten the jam nut against the knob securely.

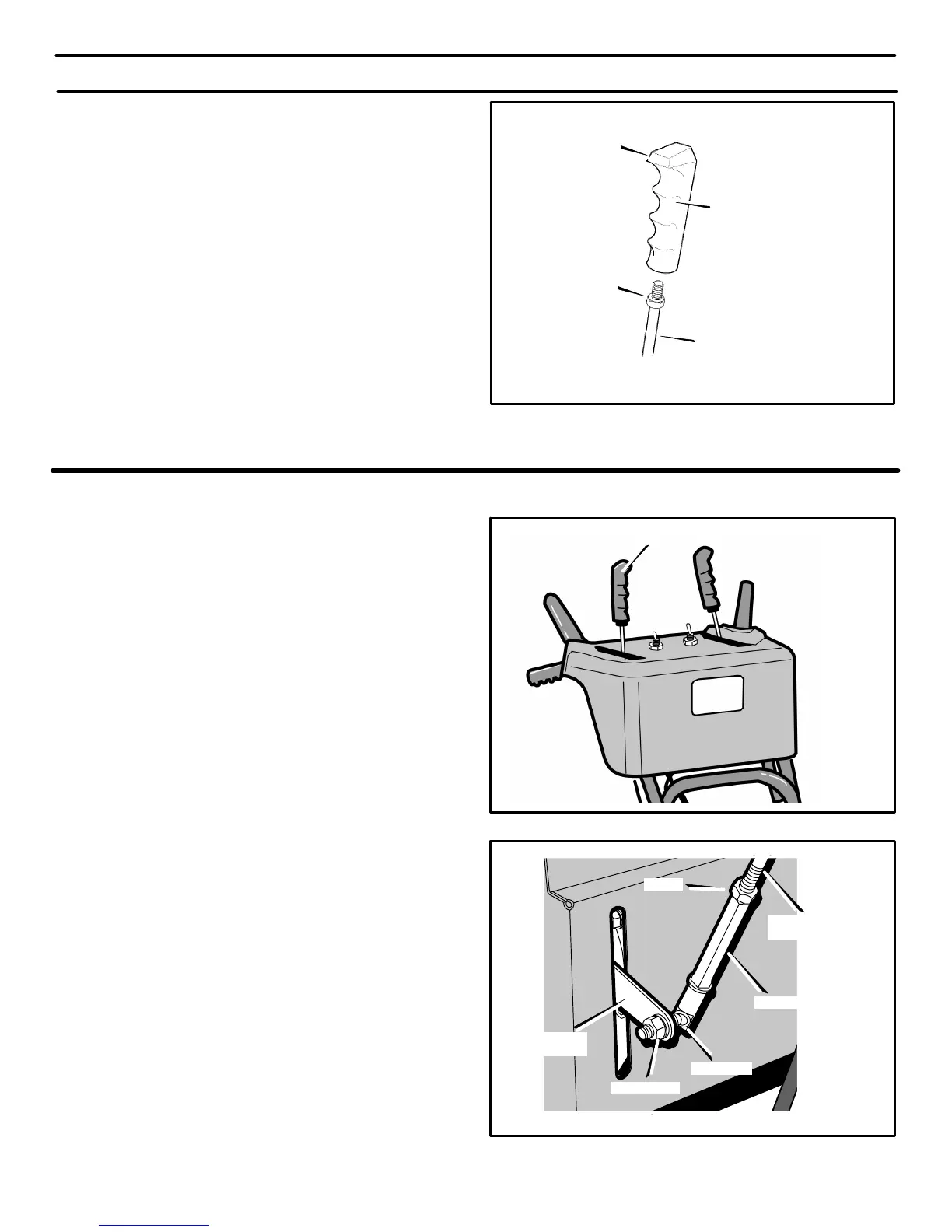

Figure 8
Remote Chute
Control Knob
Nut
3/8”
Lever
LIp
HOW TO INSTALL
THE SPEED CONTROL ROD
1. Put the speed select lever to the NEUTRAL position.
See Figure 9.
2. Attach the ball joint, located on the bottom end of the
speed control rod, to the shift yoke assembly. See
Figure 10. The fasteners (washer and nut) are in the
parts bag.
3. The length of the ball joint and speed control rod have
been pre−adjusted at the factory. If an adjustment is re-
quired, loosen the nut. Remove the fasteners to discon-
nect the ball joint from the shift yoke assembly. To
lengthen or shorten the speed control rod, turn the
adapter to obtain the correct length.
4. Make sure the speed select lever functions correctly.
Move the speed select lever through all speeds.
Speed Select Lever
Figure 9
Figure 10
Ball Joint
Speed Control
Rod
Shift Yoke
Assembly
Fasteners
Nut
Adapter
