Frontier ST1332 - Parts Schematics

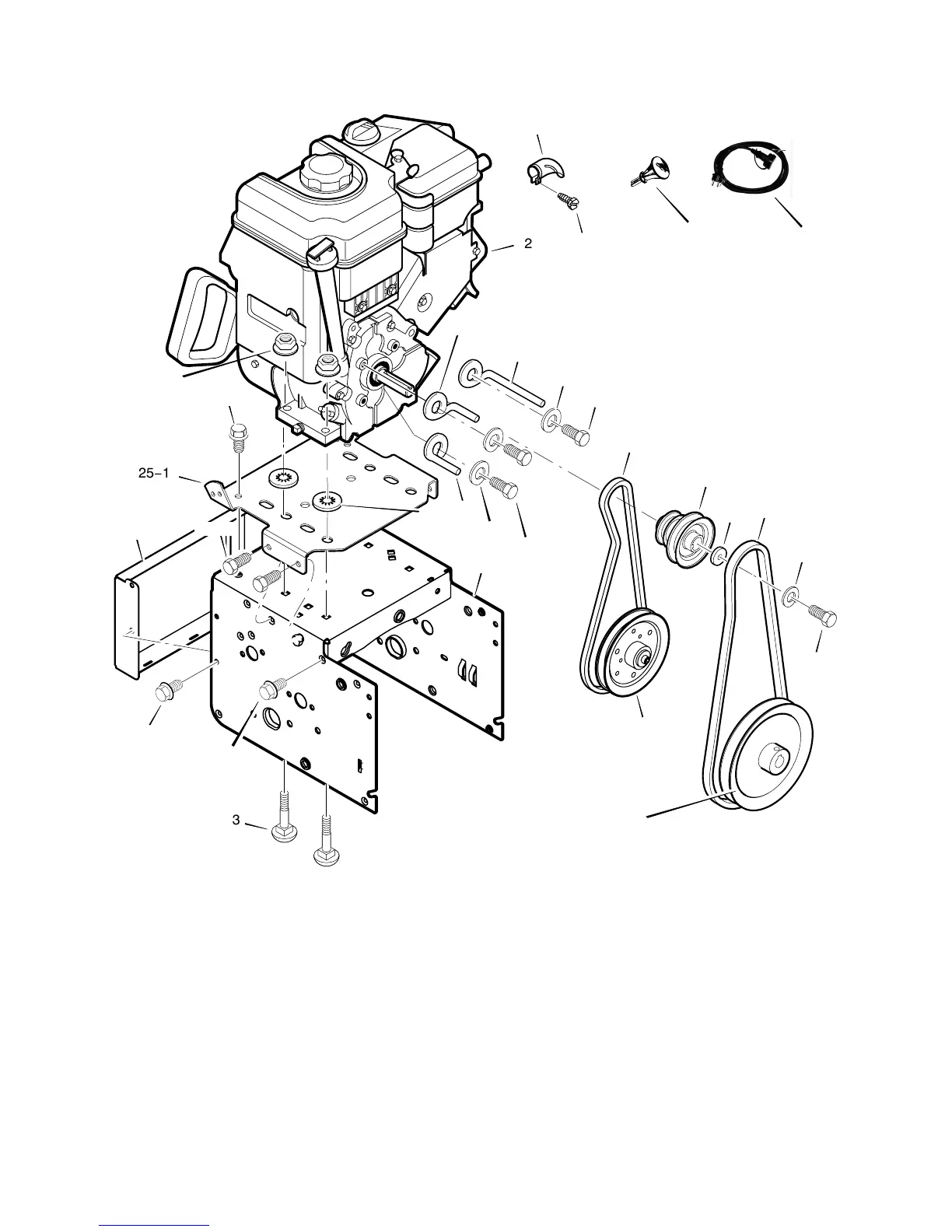

FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D
41
MTF−051059L
ENGINE
1
Á
Á
ÁÁ
ÁÁ
25−1
2
3
25−4
25−2
25−3
6
5
20
22
24
18
8
10
12
16
Ref. Drive Page
Ref. Auger Housing
Page
14
19
19
25−5
25−2
25−2
22
24
26
27
28
Key No. Part No. Description Key No. Part No. Description
1 MT6219 CORD, STARTER
2 − − − − − − ENGINE
3 MT002x97 BOLT, CARRIAGE 5/16−18
5 MT028x76 RETAINER, PUSH
6 MT710026 NUT, HEX 5/16−18
8 MT1501109 PULLEY, ENGINE
10 MT717x170 WASHER
12 MT71063 WASHER .38ID
14 MT001x20 SCREW, 3/8−24X1.00
16 MT37x127 BELT, HYDRO DRIVE
18 MT585416 BELT, AUGER V 4L
19 MT1501368 GUIDE, BELT
20 MT1501201 GUIDE, BELT
22 MT71060 WASHER, SPTLK .31X.58X.08
24 MT710097 SCREW, 5/16−24X 0.75
25 − − − − − − FRAME ASSEMBLY
25−1 MT1501062E511 PLATE, ENGINE MOUNT
25−2 MT310169 SCREW, TAP 1/4−20 X .63
25−3 MT25x020 SCREW, TAP 5/16−18 X .50
25−4 MT1501295E511 FRAME, MOTOR BOX
25−5 MT1501333E511 PANEL, BACK − HYDRO
26 MT1501214 KEY, ENGINE
27 MT226462 DEFLECTOR, MUFFLER
28 MT810140 SCREW
−− MTF−051059L OWNER’S MANUAL
