Frontier ST1332 - Page 48

FRONTIER MODEL ST1332 FACTORY MODEL 632130x16D
48
MTF−051059L

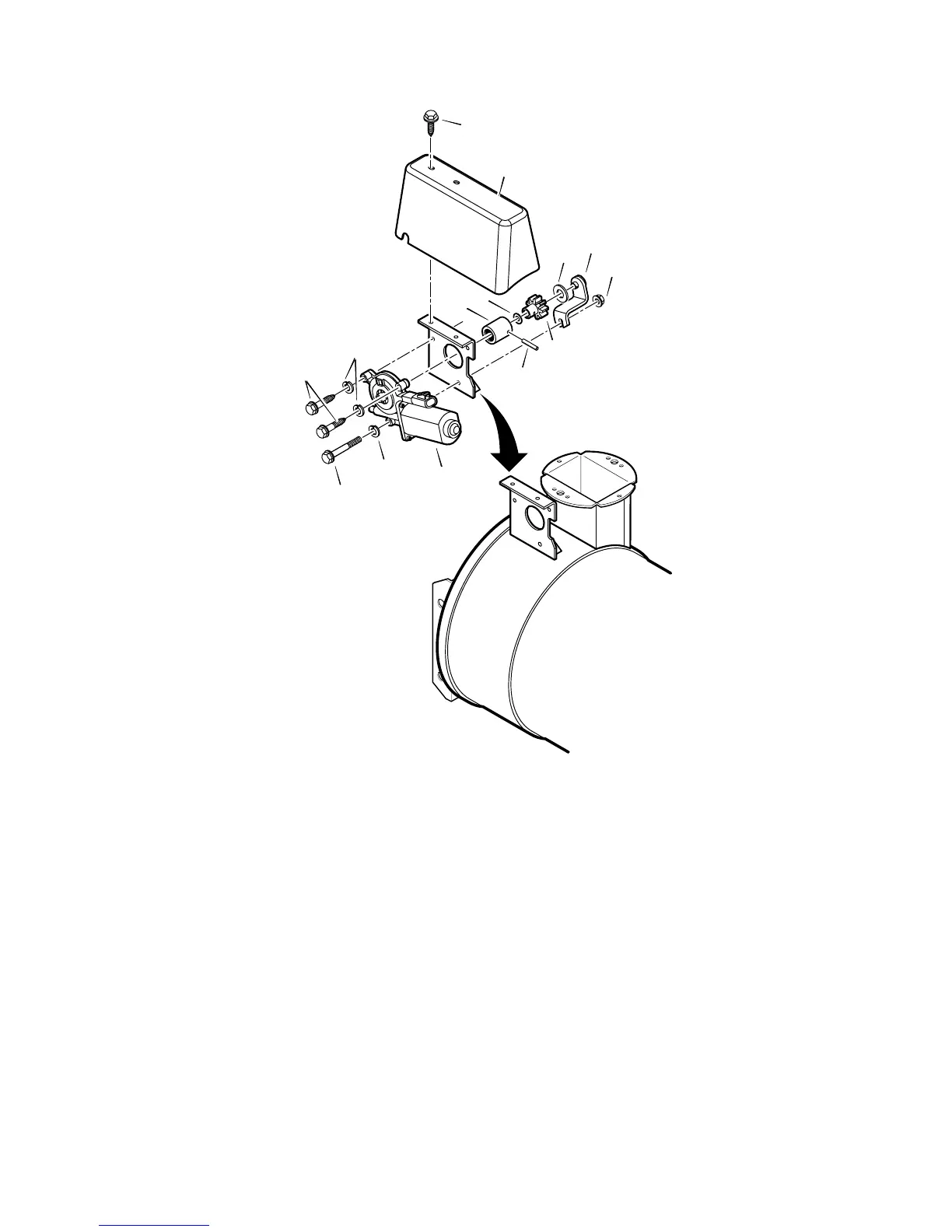

CHUTE ROTATION MOTOR
1
2
3
4
5
7
8
9
10
11
12
13
11
14
Key No. Part No. Description
1 MT1501347 COVER, MOTOR
2 MT26x263 SCREW
3 MT17x185 WASHER
4 MT1501396 BRACE, CHUTE GEAR
5 MT15x143 NUT
7 MT1501067 GEAR
8 MT032x75 PIN, SPRING
9 MT1501430 RING, RETAINER
10 MT1501341 ADAPTER
11 MT018x30 WASHER
12 MT26x310 SCREW
13 MT001x94 BOLT, HEX
14 MT1501340 MOTOR, ELECTRIC
