3. What do you want to control? How do you want to control it?
Your CM900 can let teachers control or communicate with practically any device or person. Now is the time to plan what
you want to do.

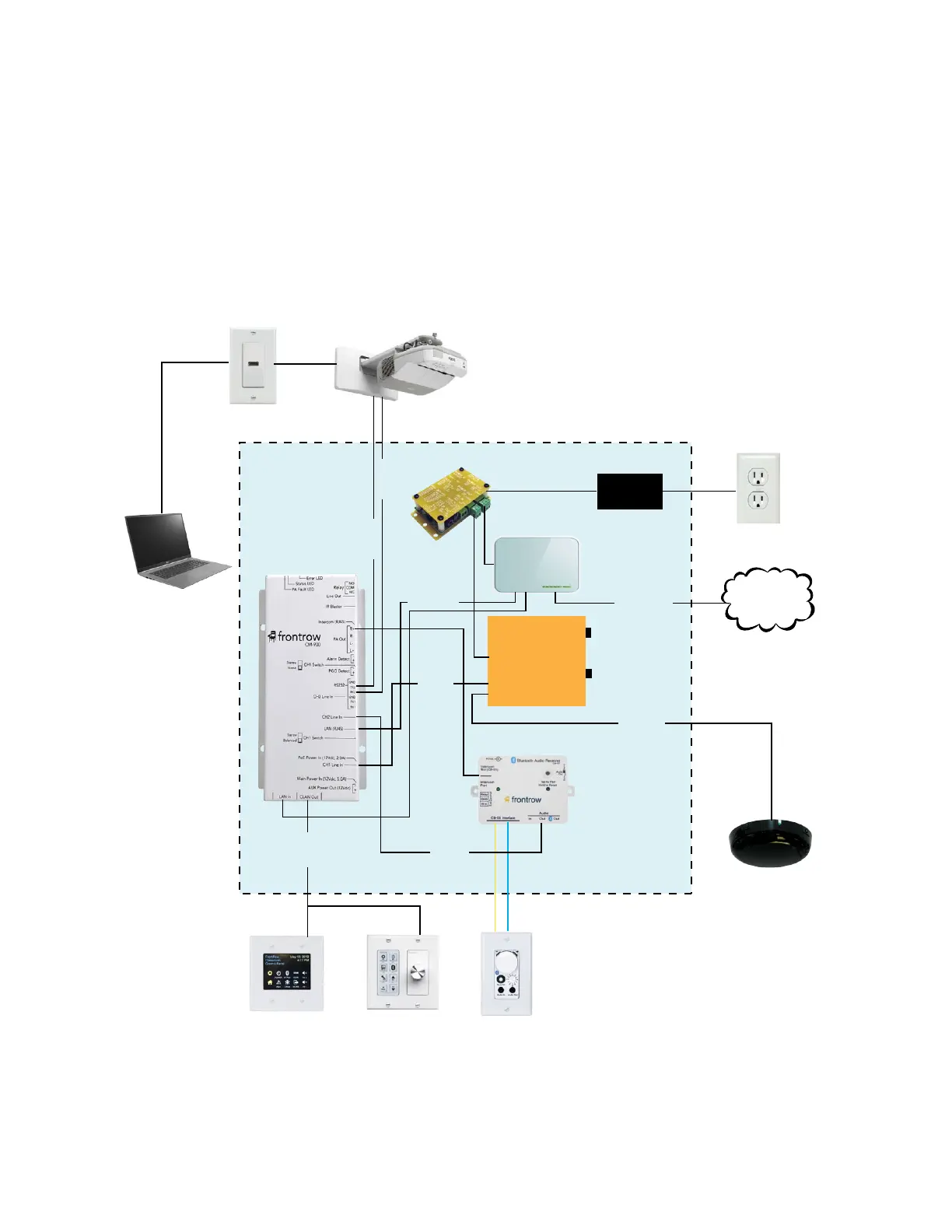

Example 1: Typical setup with projector
In this example, the CM900 works to turn a projector on and off, switch inputs or execute any command the projector
has in it’s control library. The diagram also shows optional Bluetooth integration. If FrontRow Conductor
™
is being used
in the school, the CM900 can also initiate intercom calls and trigger alerts. In combination with powerful tools like
FrontRow Maestro
™
, this can allow you to ‘network’ and manage projectors that are otherwise not online. Below are
the basic connections for controlling a projector serially.
ETHERNET
SWITCH
CMBT
CM
9
00
CB55
CB6000
CB2050
SCHOOL
NETWORK
HDMI
POWER
SUPPLY
SYMBIO
CEILING SENSOR
AUDIO
CLAN
NETWORK
SENSOR
AUDIO
NETWORK
RS232
AUDIO
PROJECTOR
COMPUTER
OR
AND/
OR
