HIGH EFFICIENCY DECATHLON SERIES GAS FRYERS
CHAPTER 1: SERVICE PROCEDURES
1-23
1.7.8 Replacing the Frypot (cont.)
12. Remove screws securing flue to frypot (access
from above; a nut-driver with an extension or
long screwdriver is required). Retrieve any
screws dropped into the flue during removal of
the flue cap and frypot bracket.
13. Remove the clevis clip and oil return handle
rod from the oil return valve at the rear of the
fryer. Slip Section A of the clevis clip off of
the oil return handle by pulling up on the rings.
Slide the oil return handle out of the bracket
and Section B of the clevis clip. Repeat for the
drain flush handle (if applicable).
14. Loosen the two screws on the front of the oil
return handle bracket at the front of the fryer.
Remove the bracket and handle and set aside
for reassembly. Repeat for the drain flush
handle (if applicable).

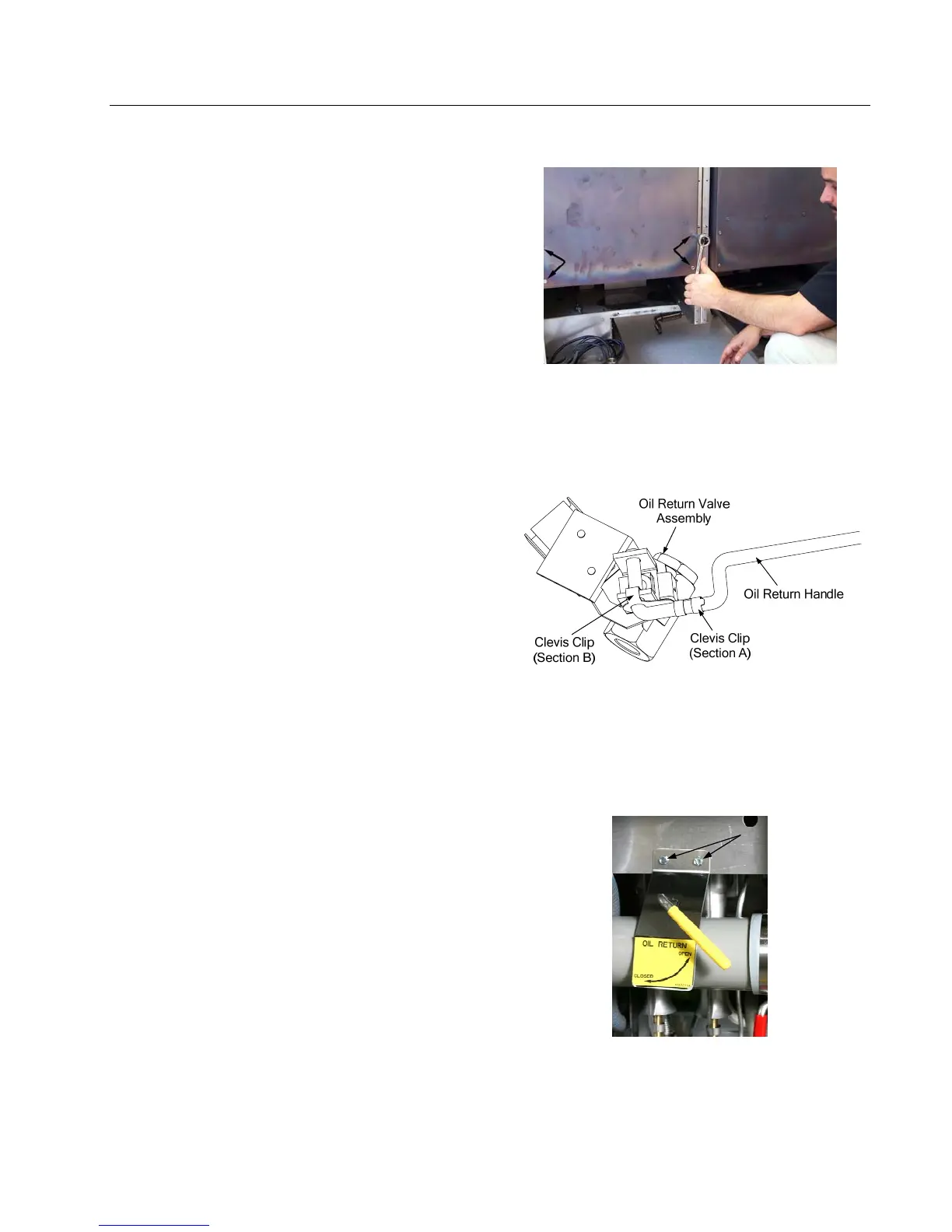

Oil-return handle bracket and screws.
Disconnect oil-return handle from clevis clip
and valve.
Removing bolts (arrows) securing flue to
frypot.
