Frymaster H14 Series - Preparing the Built-In Filter Unit

4-2
4.2 Built-In Filtration System Operation
Both the FootPrint III (FP III) and Filter Magic II (FM II) filtration systems allow the cooking oil or
shortening in one frypot to be safely and efficiently filtered while the other frypots in a battery
remain in operation. Although different in design and appearance, the operation of the FootPrint III
and Filter Magic II systems is identical. Operation of the FootPrint III system is illustrated in this
discussion, but the steps described apply equally to the Filter Magic II system.
Most reported problems with these systems are caused by improper operation. Careful attention to
the step-by-step instructions that follow will ensure that your system operates as intended.
4.2.1 PREPARING THE FILTER UNIT FOR USE

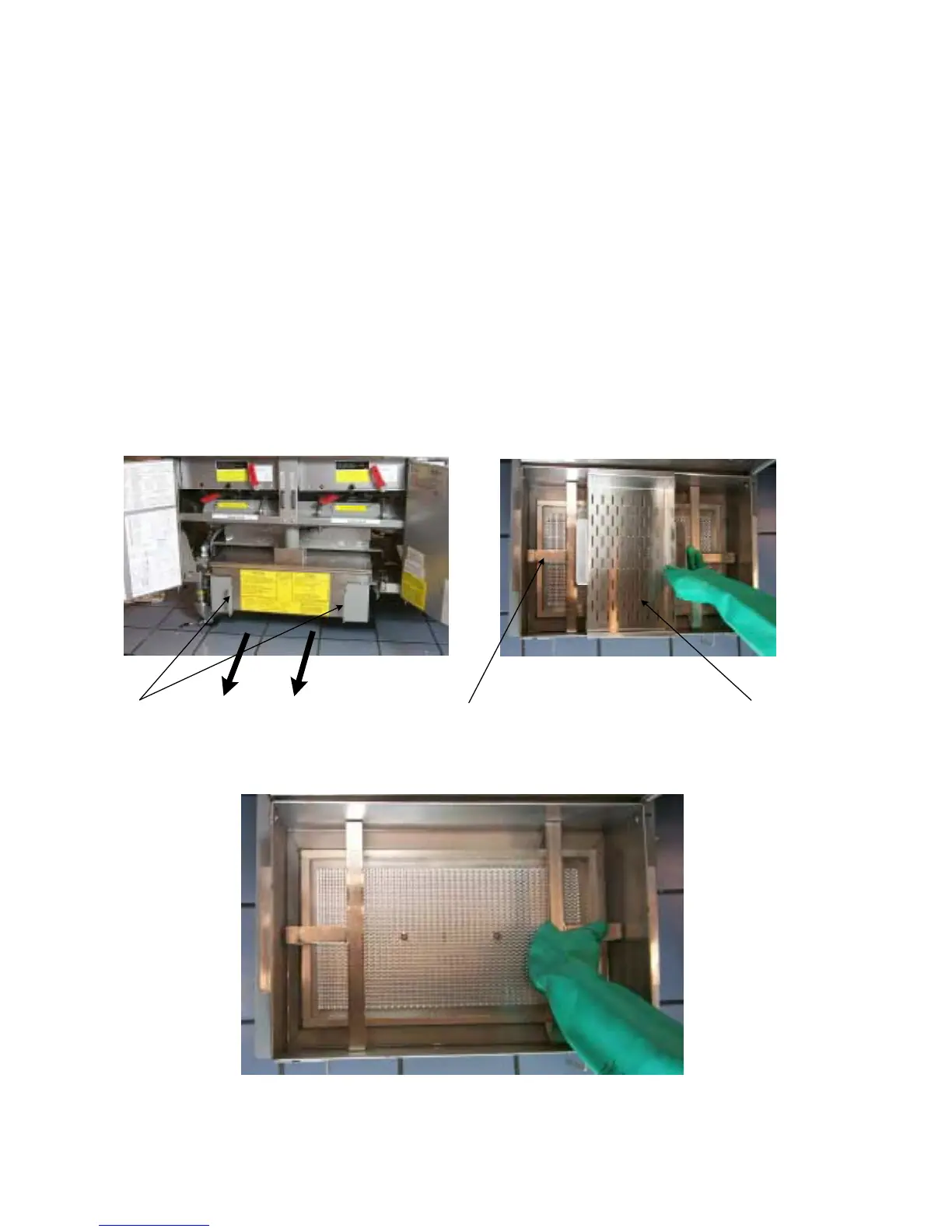

1. Pull the filter unit from the cabinet, open the cover, remove the crumb tray, and remove the paper
hold-down ring.
Paper Hold-down Ring Crumb Screen
Handles
Slide Pan Assembly Out
Removing paper hold-down ring.
