FS S3410 Series User Manual

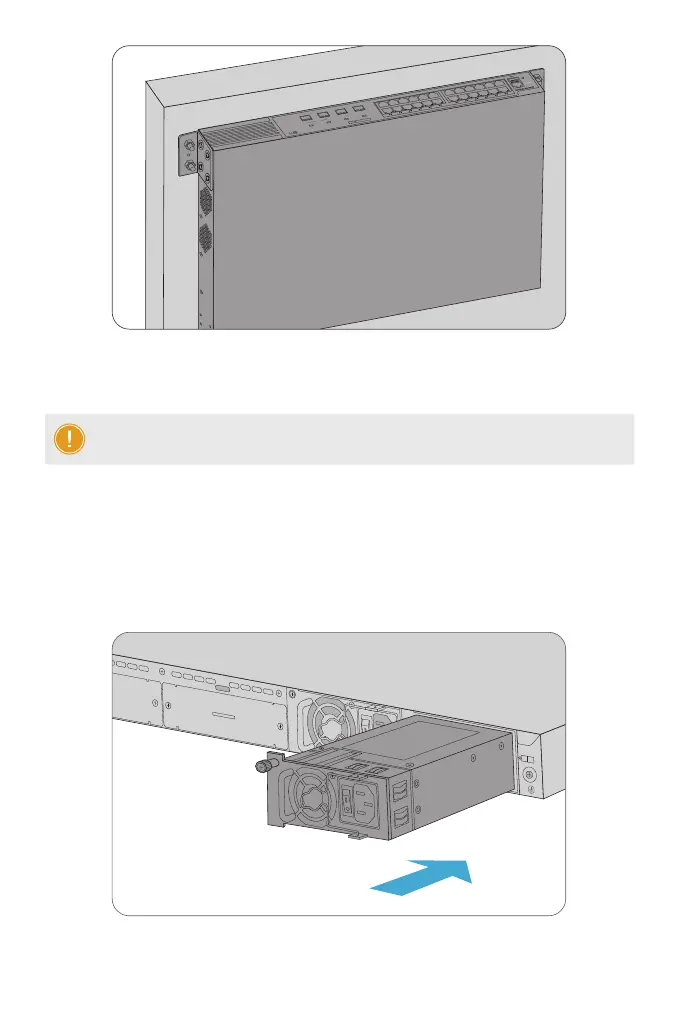

2. Use the expansion screws to securely attach the mounting brackets on the wall.
Installing the Power Supply Module
1
Power
2
Input
Module1
Module2
Output
Input
Output
PoE
Status M1 M2 PWR1 PWR2 PoE
1 2
3 4
5 6
7 8 9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
24 25 2623
Green=1000M Yellow=10/100M On=Link Flashing=ACT PoE LED:Green=Good Supply Yellow=Over Load
CONSOLE
SFP+
S3410-24TS-P
PoE+
NOTE: Suitable for mounting on concrete or other non-combustible surface only.
S3410-24TS-P/S3410-48TS-P
Module1

FS S3410 Series Specifications

General

Brand	FS
Model	S3410 Series
Category	Switch
Language	English
