1.8 Parts Replacement
1.8.1 Removing a Power Module and Fan Module
Hardware Installation and Parts Replacement
Switch Hardware Installation and Maintenance Guide
Removing a Fan Module
1. Loosen the captive screws of the fan module.
2. Grasp the handle and pull the fan module out of the slot gently.
3. Install the filler panel in the unoccupied slot and put the removed fan module back into its packaging
materials.
Figure 12: Removing a Fan Module
• Slowly and vertically remove the fan module.
• Install a fan slot blanking plate if no fan module is installed in the removed position to maintain proper
ventilation and prevent dust accumulation.
Removing a Power Module
1. Press the latch on the module and grasp the handle with one hand. Place your other hand under the
module tosupport its weight. Pull the power module out of the slot gently.
2. Install the filler panel in the empty slot. Put the removed module back into its packing materials.

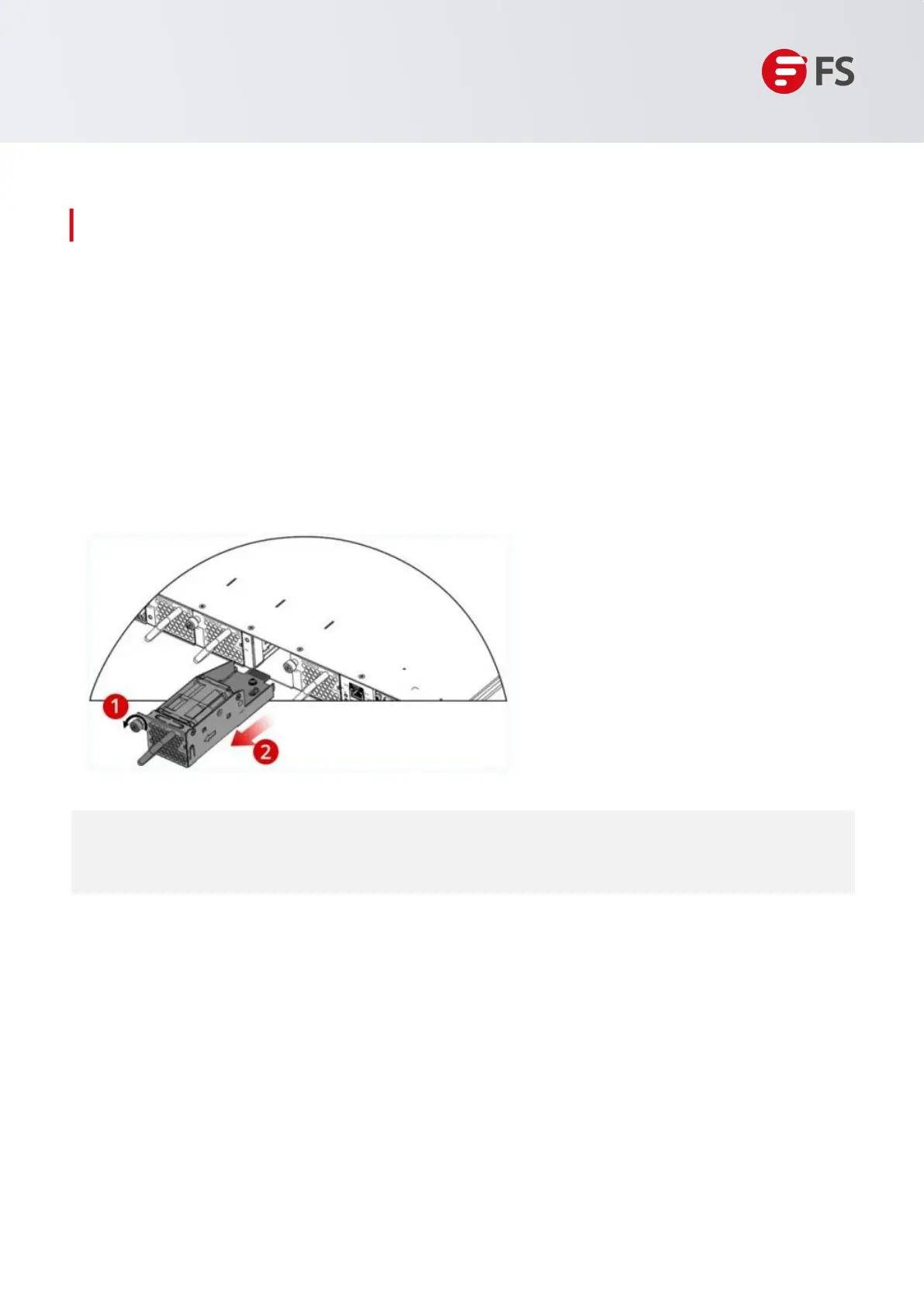

Figure 13: Removing a Power Module

FS S5860 Series Specifications

General

Category	Switch
MAC Address Table Size	128K
Series	S5860
Operating Temperature	0°C to 45°C
Dimensions	440mm x 400mm x 43.6mm (17.32in x 15.75in x 1.72in)
VLAN Support	4096
Storage Temperature	-40°C to 70°C
Jumbo Frame	9K
