b) Energised impuls (6-12 V AC o. 6-24 V DC): yellow cable on / red cable on
Drive unit power supply 12 V DC:
Thick red cable on
Thick black cable on

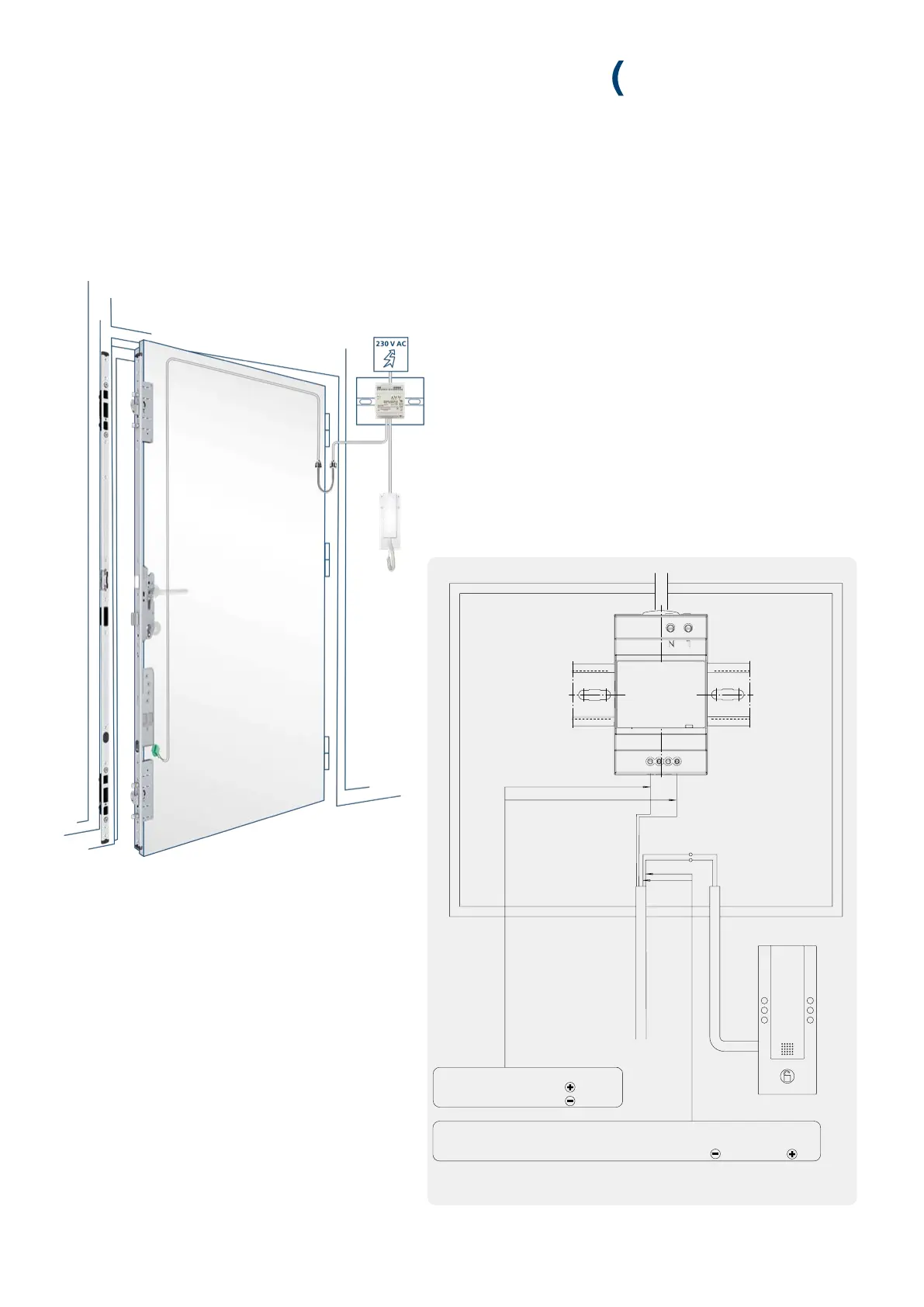

Opening impulse from two-way intercom system or access control system:
a) Potential-free impulse: yellow cable / green cable
Cable from motor lock
Cable from two-way intercom system
DIN rail power
supply unit
12 V DC
The white cable has no function in this installation version.
Switch cabinet with
DIN rail power supply unit
To Next Page
