multitronic
881/881GL/ServoAccess
The delivery content depends on the respective version. The
basic components are described below.
Multipoint locking system with one-piece or standard
strike plates
Latch conversion
Setting possibilities
± 2mm
2.1 BASIC COMPONENTS | SETTING POSSIBILITIES

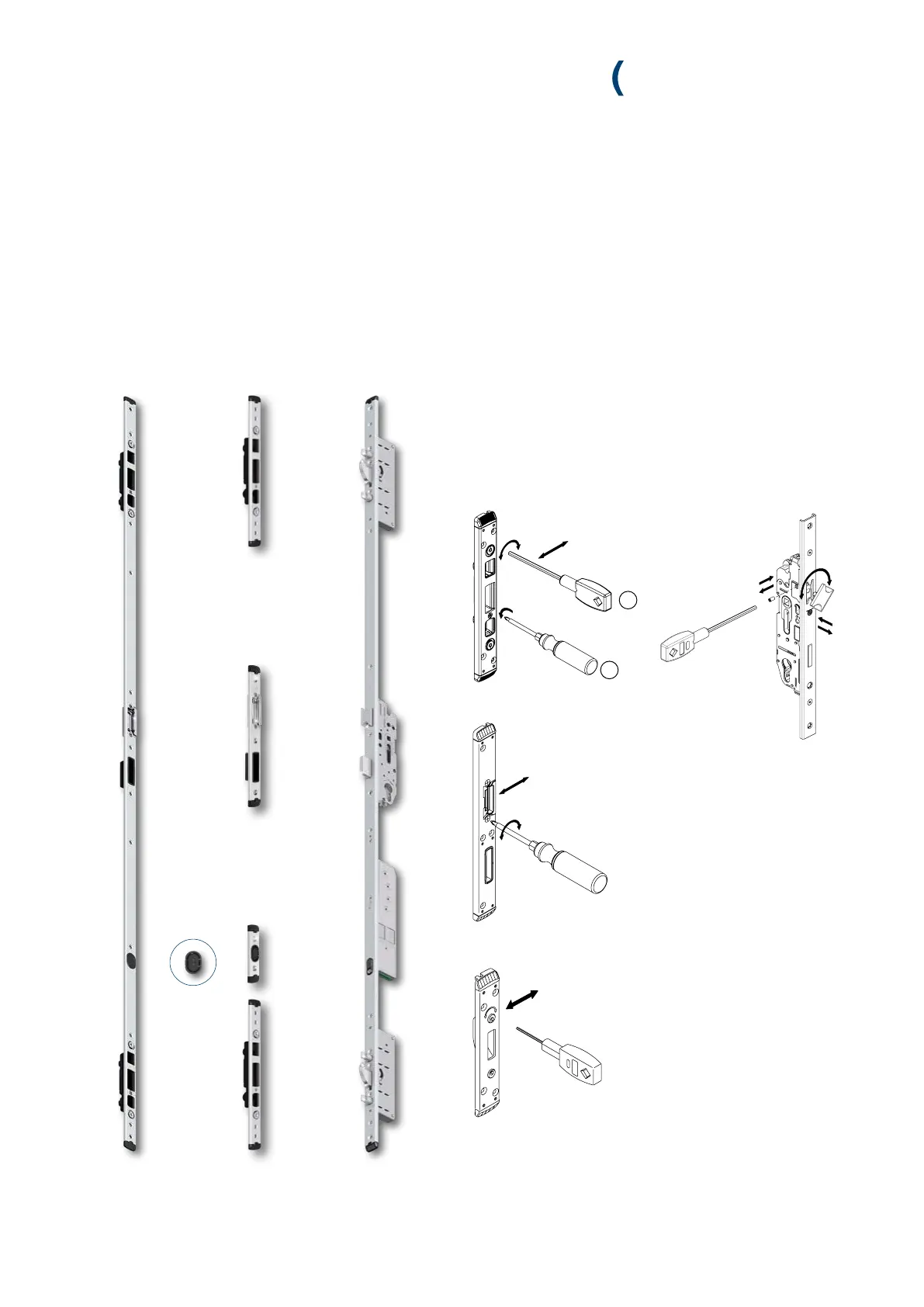

Adjustment of one-piece/
standard strike plates
A reliable function of the door system is only guaranteed if
lock and door have been installed correctly and hinges and
one-piece/standard strike plates have been adjusted cor-
rectly. In order to achieve an optimal tightness of the door,
the one-piece/standard strike plates can be adjusted as
follows:
SW 2
Contact
magnet
Standard
strike plate
type 4/10/11
multitronic 881
type 11
One-piece
strike plates
type 4/10/11
90°
SW 4
2.
1.
± 2mm
± 2mm
SW 4
