Fuji Xerox DocuPrint CM415 AP

2 Product Overview
62
Product Overview
2
* : Attach the ferrite core to the cable connected to the connector.

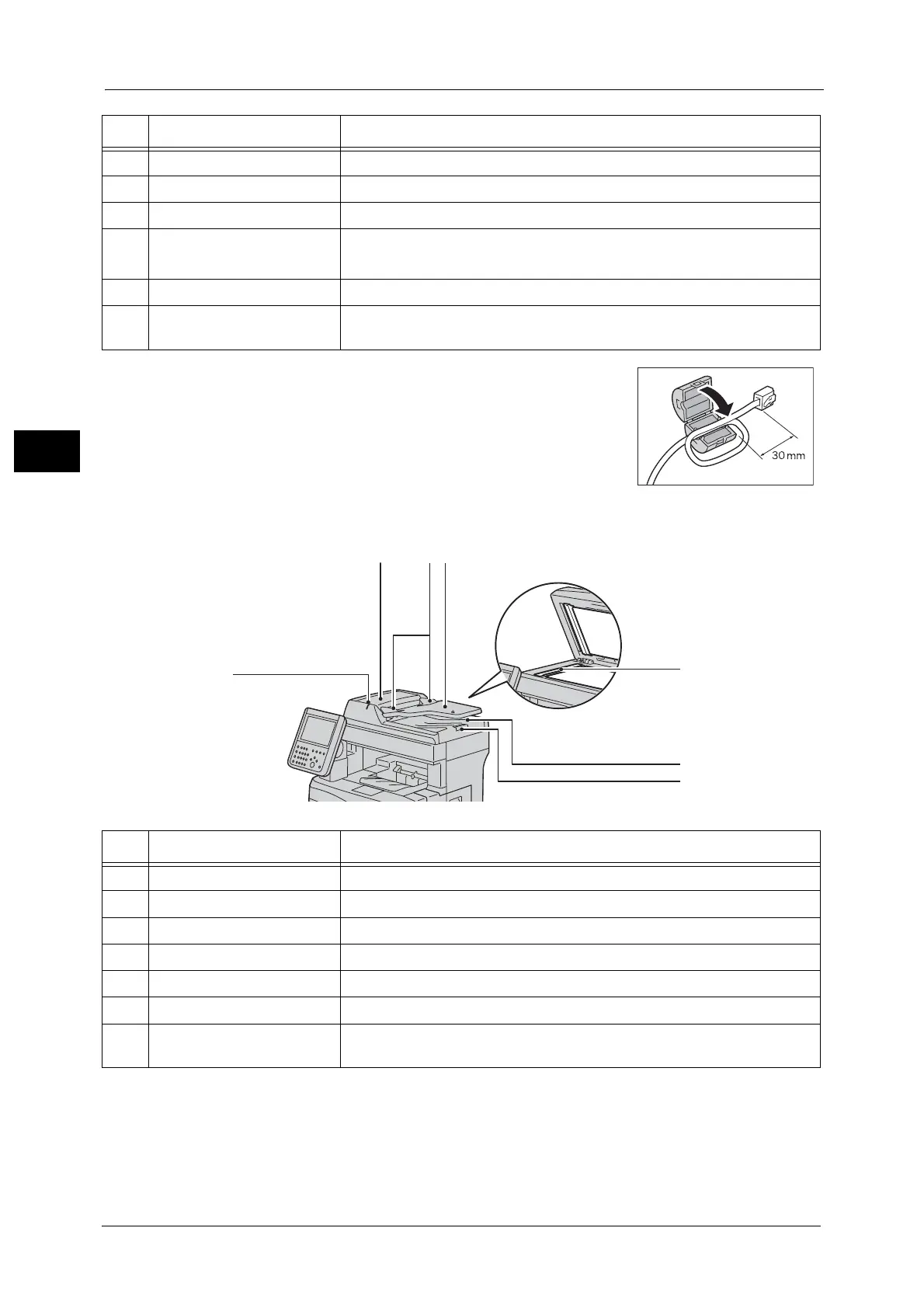

 Duplex Automatic Document Feeder
Note •In this guide, "document feeder" means both the Duplex Automatic Document Feeder unless
expressly restricted to one of them.
7 USB 2.0 interface connector Connects a USB memory cable for printing.
8 Duplex module Automatically prints or copies on both sides of paper.
9 Second BTR Transfers toner to paper.
10 Fusing unit Fuses toner to paper.
Important • Do not touch this unit as it is extremely hot.
11 Power connector Connects to the power code.
12 Rear cover Open this cover to clear paper jams, replace consumable, and clean the
machine.
No. Component Function
4
23
7
5
6
1
No. Component Function
1 Confirmation indicator Lights up when a document is loaded correctly.
2 Left cover Open this cover to clear paper jams.
3 Document guides Use these guides to align the edges of documents.
4 Document feeder tray Load documents here.
5 Document output tray Scanned documents are delivered here.
6 Document stopper Prevents outputs from falling off.
7 Constant velocity transport
glass
Scans a loaded document.
