Color monitor 21P3
18 - English A26361-K618-Z100-2-5E19

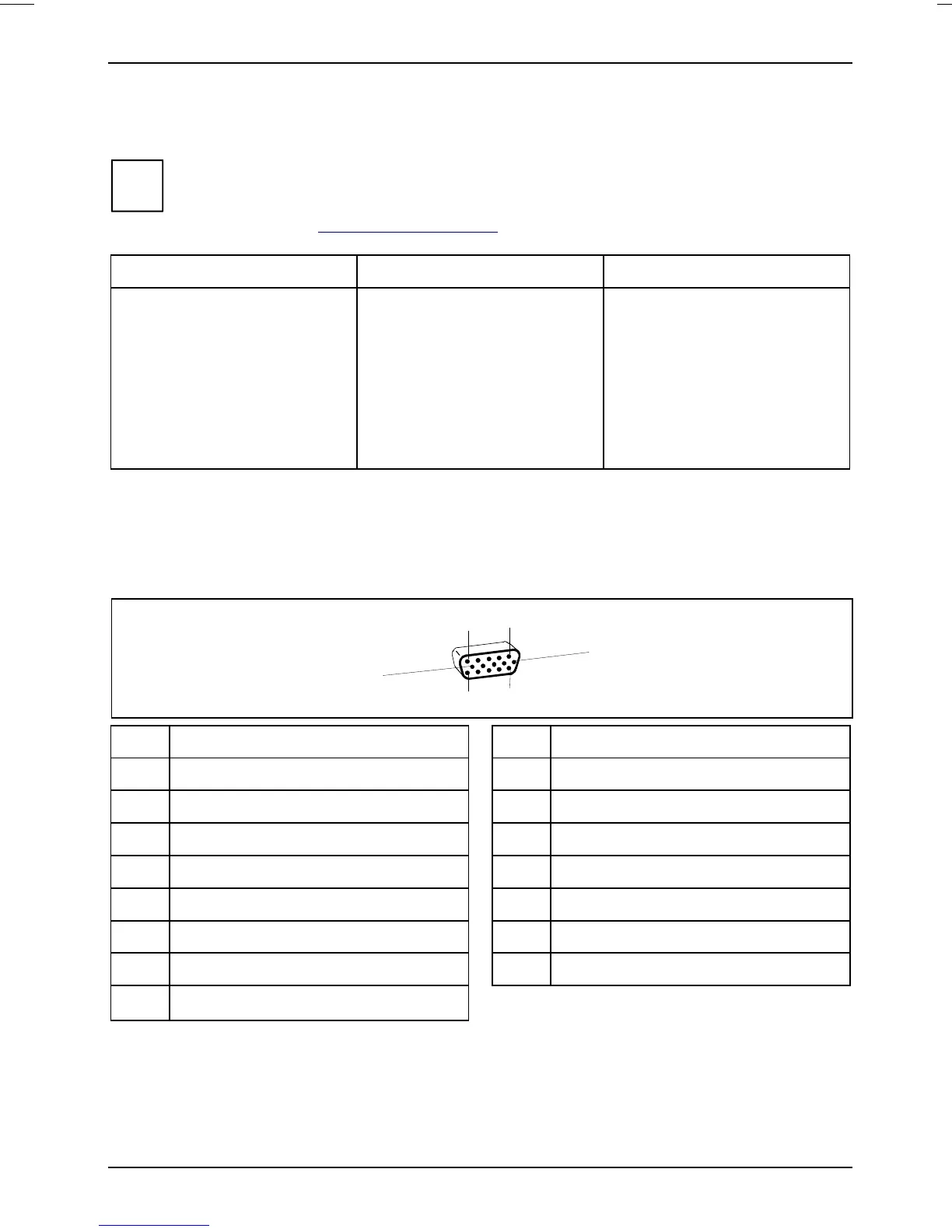

Preset operating modes
i
The display position and size have been set to optimum values at the factory for the
operating modes listed above. Depending on the screen controller used, it may be
necessary to adjust the display position and size. In this case, you can change and save
the settings (see "Operation of the monito
").
Horizontal frequency Refresh rate Screen resolution
31.5 kHz
31.5 kHz
63.9 kHz
68.7 kHz
100.3 kHz
91.2 kHz
107.0 kHz
112.4 kHz
112.5 kHz
70 Hz
60 Hz
100 Hz
85 Hz
110 Hz
85 Hz
100 Hz
90 Hz
85 Hz
720 x 400
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1280 x 1024
1600 x 1200
1600 x 1280
For ergonomic reasons we recommend a refresh rate of at least 75 Hz and a maximum resolution of
1024 x 1280 pixels.
Pin assignment D-SUB (15-pin)
1
5
6
10
11
15
Pin Meaning Pin Meaning
1 Red video input 9 +5 V for DDC
2 Green video input 10 Logic ground
3 Blue video input 11 Monitor ground
4 Monitor ground 12 DDC data (SDA)
5 DDC Return 13 H. sync
6 Red video ground 14 V. sync
7 Green video ground 15 DDC data (SCL)
8 Blue video ground
