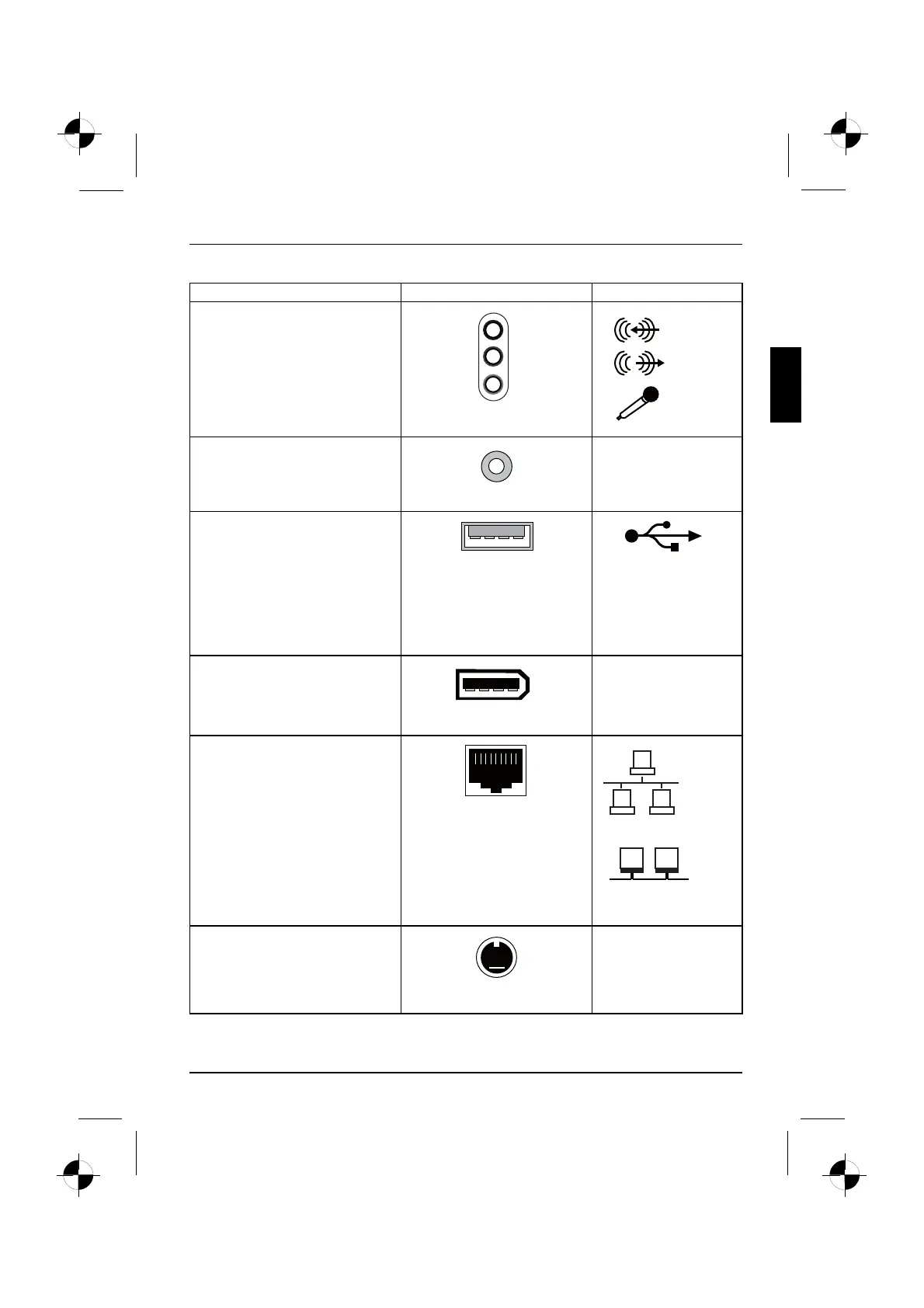

Connections and Controls
Description Figure Symbol
Sound (external sound sources, e.g.
active loudspeaker, microphone)
• Sound onboard
When an additional sound card is
installed, there is no sound function
on the motherboard, and “Sound
onboard“ is not a vailable.
3.5 mm jack sockets
Line In
Line Out
Mic
Digital sound connection, see also
motherboard manual.
Cinch connection (Coax)
SPDIF Out
Connection for USB devices (e.g.
keyboard, mouse IR sender/receiver
module, scanner, printer)
USB 2.0
Important information on USB 2.0:
In order to guarantee a reliable da ta
transfer rate, we recommend that
you use a USB connection cable no
longer than 3 m.
USB socket
or USB
Connection for FireWire or
IEEE-1394-compatible devices (e.g.
video recorder, digital camera)
FireWire
FireWire socket
1394
Network or DSL modem
RJ-45 so cket
or
or LAN
Video input and output connection
(optional)
(see documentation for the VGA
card)
4-pin or multi-pin socket
SVIDEO IN
SVIDEO OUT
10600985329, edition 1 English - 5
