Mechanics
A26361-D1218-Z180-1-7619 English - 5

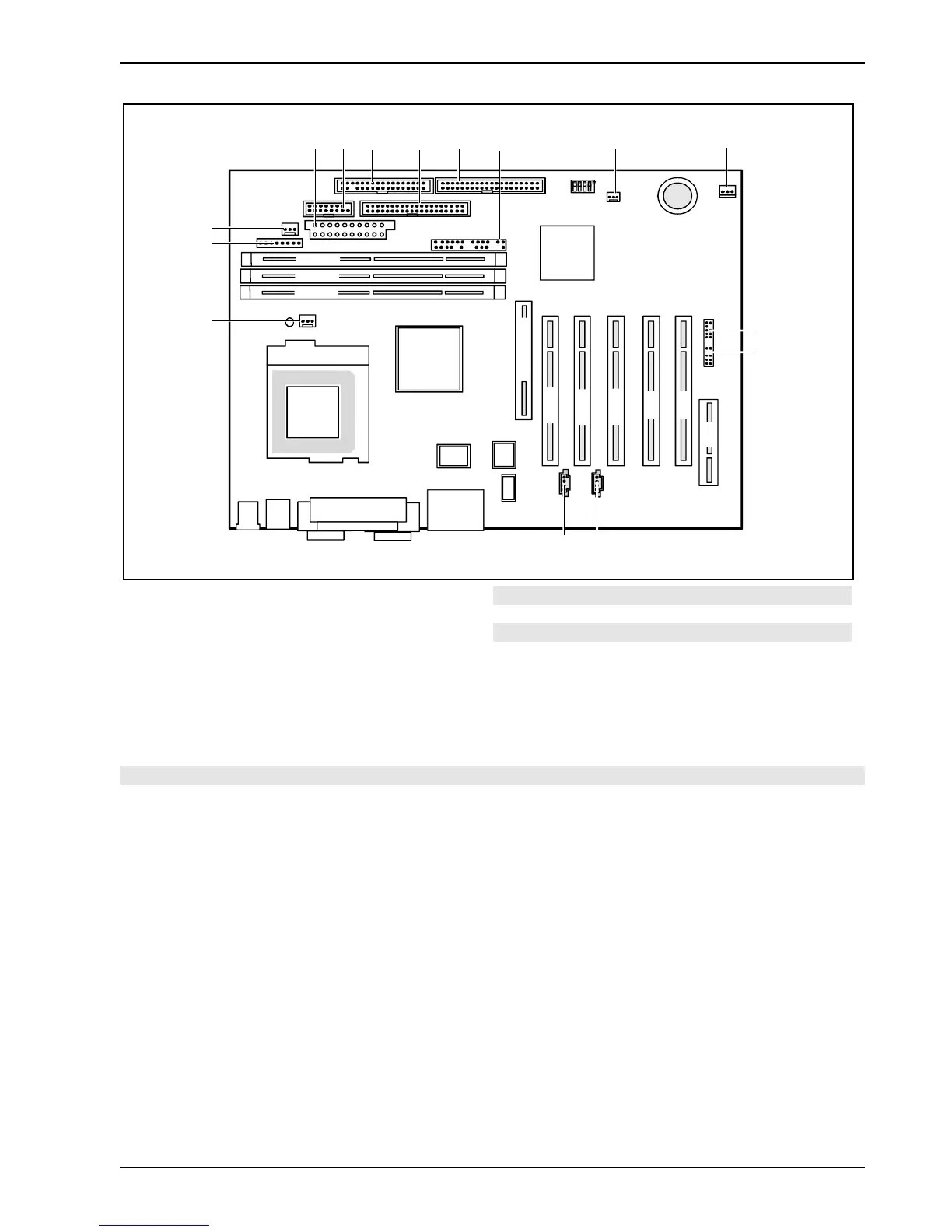

DIMM 2
PCI 3
AGP / GPA
DIMM 1
PCI 2
PCI 1
PCI 4
PCI 5
CNR
DIMM 3
21
3
4
56
7
8
9
10
1112
13
14
15
1 = Power Supply
2 = Serial chipcard reader interface or serial
port 2
3 = Floppy Disk Drive
4 = IDE drives 3 and 4 (secondary)
5 = IDE drives 1 and 2 (primary)
6 = Connector for control panel and
loudspeake
7 = Wake On LAN
1 = Fan 2 (e. g. for the processor)
2 = USB port 4
3 = USB port 3
4 = CD audio input
5 = AUX audio input
6 = Fan 1 (e. g. for the processor)
7 = Power supply monitoring
8 = Cover monitoring
The components and connectors marked are not necessarily present on the system board.
