Mechanics
4 - English A26361-D1218-Z180-1-7619
Mechanics

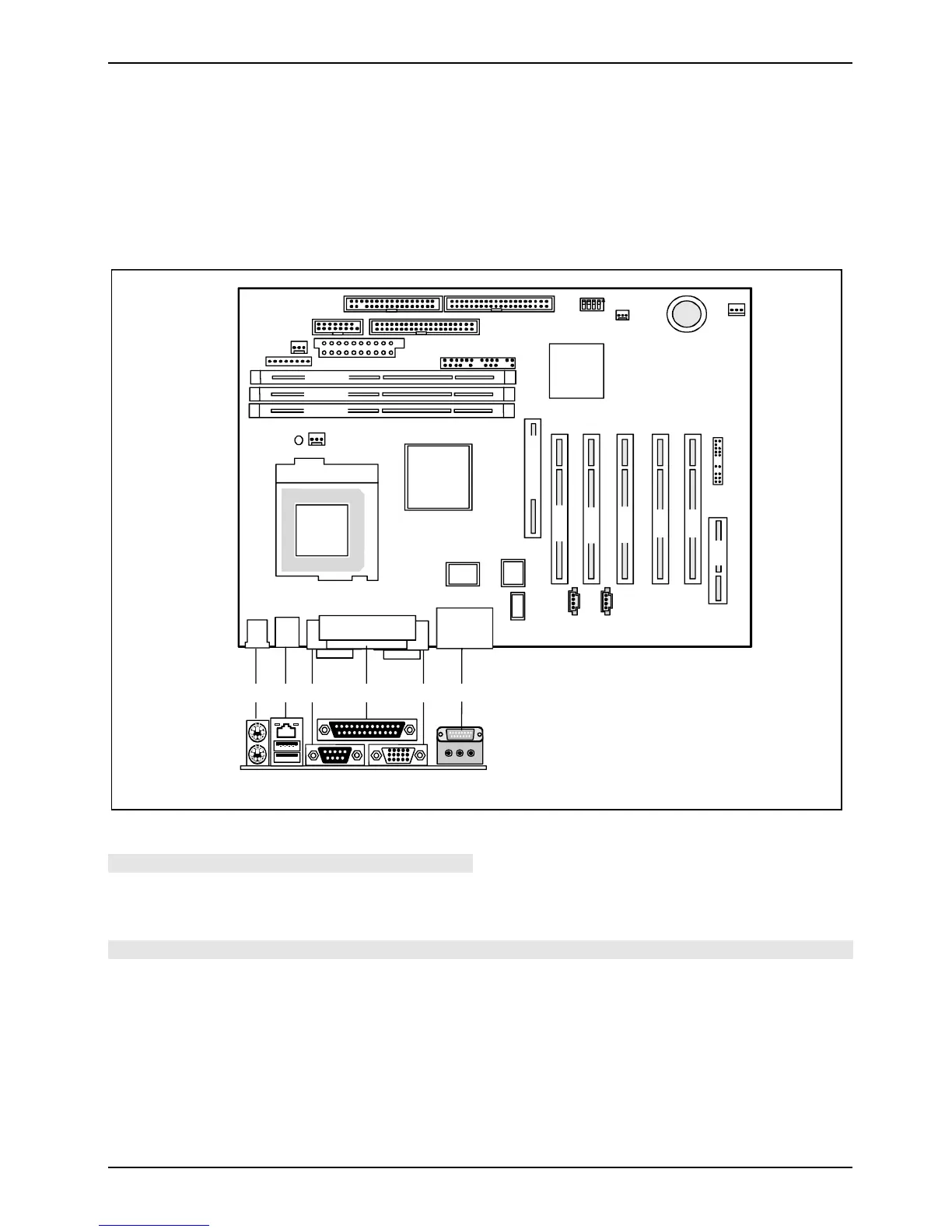

Layout System board D1218
ATX 12" x 8’’ (304,8 mm x 203.2 mm)
Some of the following connectors are optional and may therefore not be included on your system
board.
DIMM 2
PCI 3
AGP / GPA
DIMM 1
PCI 2
PCI 1
PCI 4
PCI 5
CNR
DIMM 3
2
31
4
5 6 7
8
9a 9c9b
1 = PS/2 Mouse Controller
2 = PS/2 keyboard port
3 = LAN port
4 = USB ports 1 and 2
5 = Serial Port 1
6 = Parallel Port
1 = VGA port
2 = Game/Midi
9a = Audio Line-Out
9b = Audio Line-In
9c = Audio Micro-In
The components and connectors marked are not necessarily present on the system board.
