Fujitsu Siemens Computers D1218 User Manual

Mechanics
A26361-D1218-Z180-1-7619 English - 11

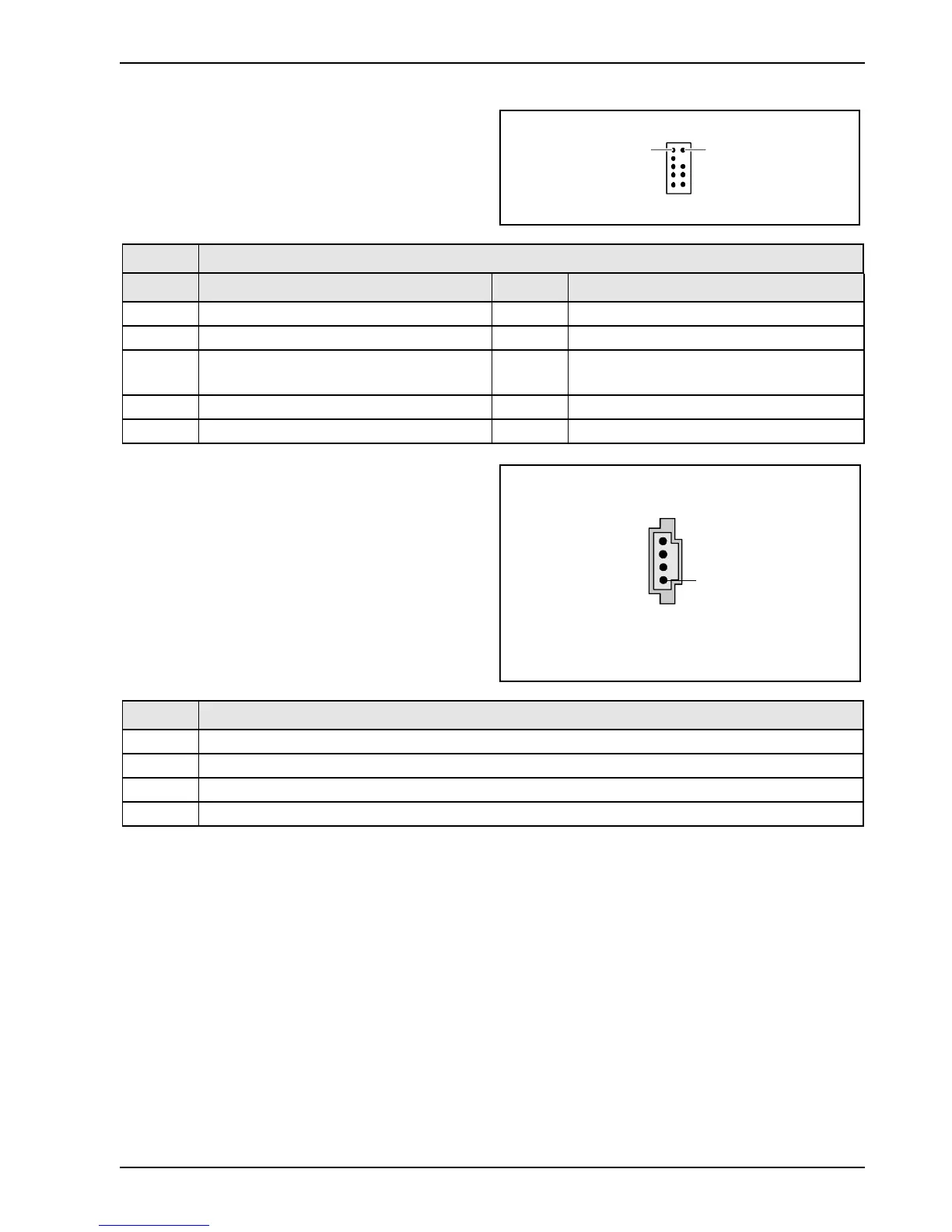

USB port - Single channel
1
2
Pin Signal
Pin Signal Pin Signal
1 VCC Dual (max. 250mA) 2 VCC Dual (max. 250mA)
3 Reserved 4 Key
5
Power supply on
(max 1 second low pulse)
6 GND
7 Data positive 8 Data negative
9 GND 10 Over current (low asserted)
CD-ROM audio connector (internal)
1
Pin Signal
1 Left CD audio input
2 CD GND
3 CD GND
4 Right CD audio input
