Mechanics
8 - English A26361-D1218-Z180-1-7619

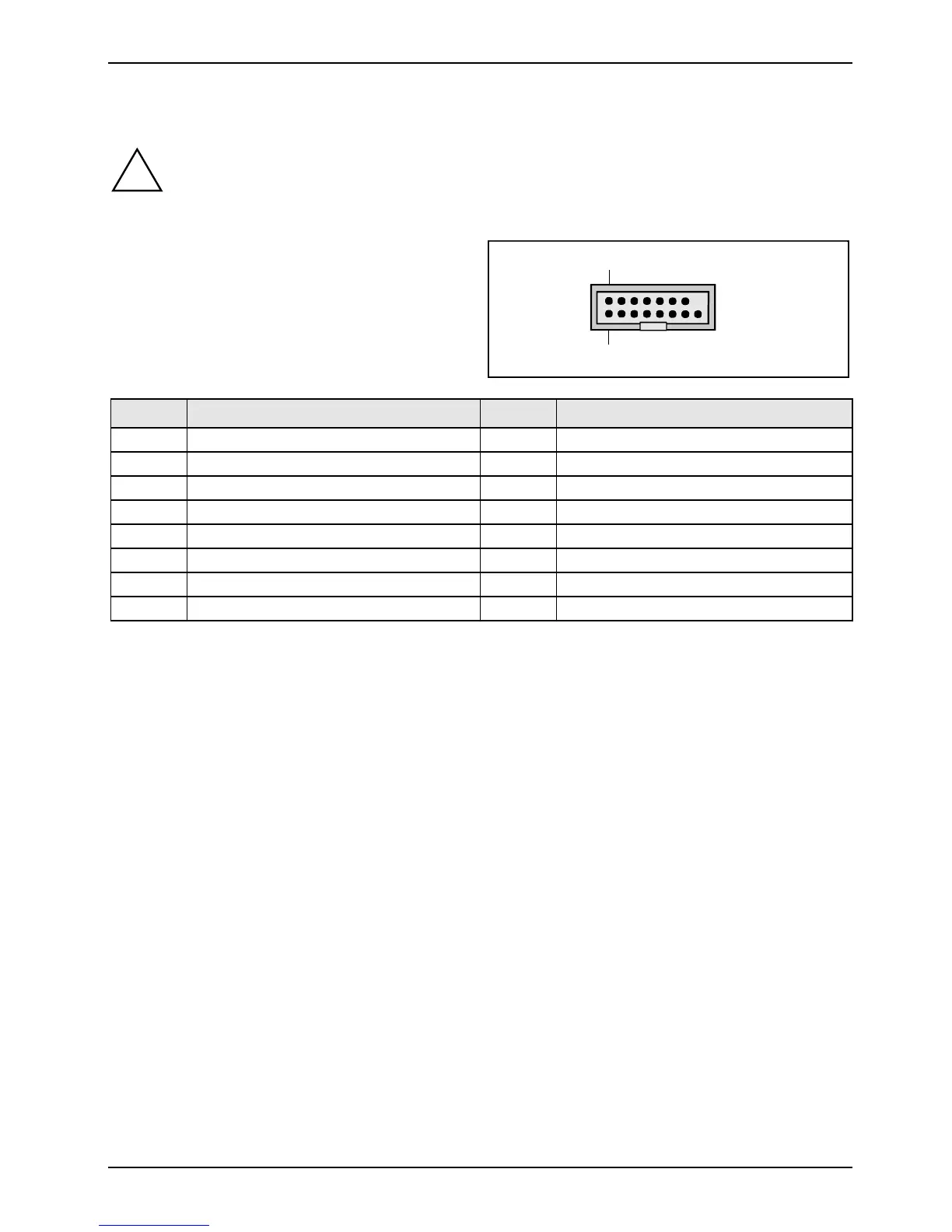

Connectors
!
Some of the following connectors are optional!
Serial chipcard reader or internal
serial port 2 (COM 2)
external via optional cable
1
2
Pin Signal Pin Signal
1 DCD 2 2 DSR 2
3 SIN 2 4 RTS 2
5 SOUT 2 6 CTS 2
7 DTR 2 8 PC_On_Strobe
9 GND 10 VCC Auxiliary
11 EXT SMI (low asserted) 12 VCC
13 RESET (high asserted) 14 GND
15 GND 16 Key
