  3 Rack Configuration and Installation  123
E
The procedure for connecting racks is shown below (example: connecting an expansion rack to the
right of the base rack).
1 Remove the front and rear doors.
For information on the procedure for removing the front and rear doors, see "4.3 Changing
the Position of the Door Rotation Axis".
Note: Before starting the work, confirm that the racks do not move.
2 Remove the retaining screws for the top cover, and then remove the side
cover.
Remove the two M12 screws securing the top cover at the front and rear corners on the right,
since the other rack will be connected to the right of this rack.
Remove the 10 screws securing the side cover, and then remove the side cover.
Note: Be careful when working at height on the top cover. Never put your foot on the rack
because it is very dangerous.
The weight of the side cover is about 13 kg. Be careful when removing it.
Be careful not to lose the side cover screws removed here. They will be used later.

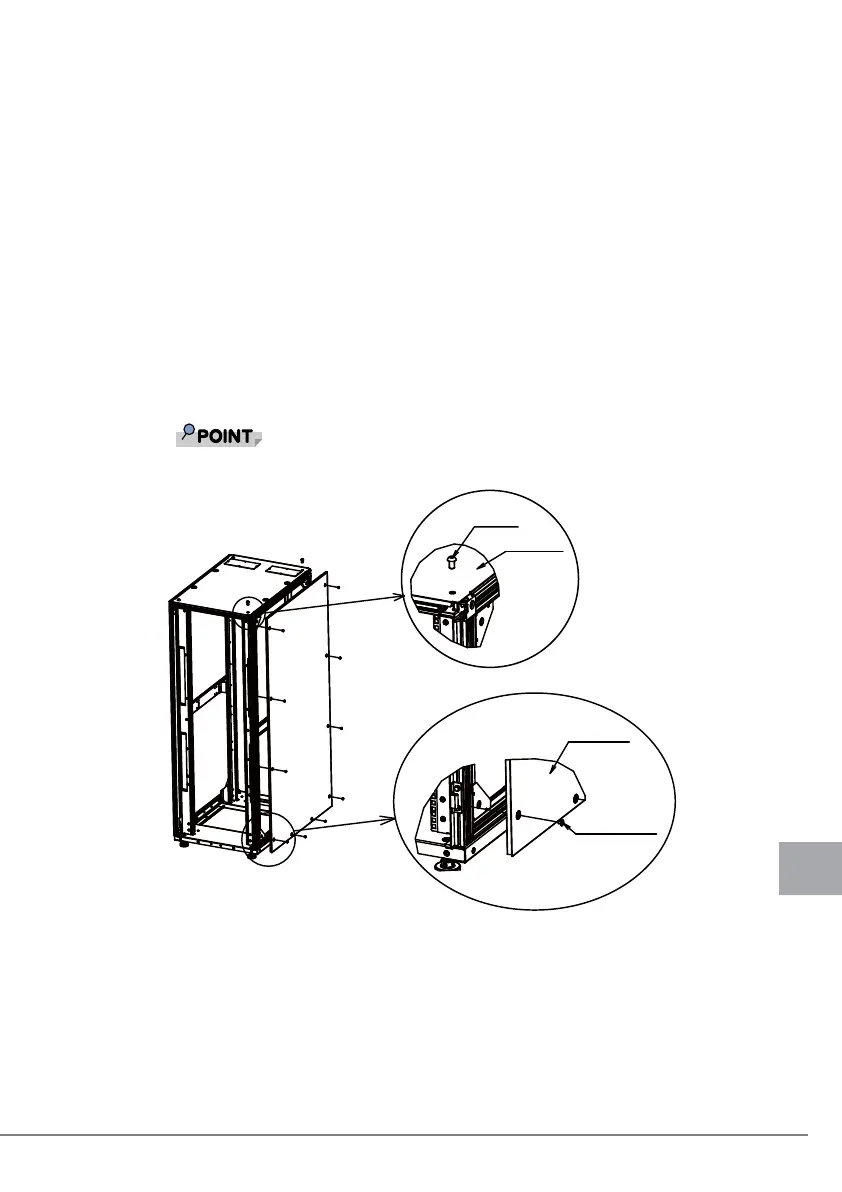

M12 screw
Top cover
Side cover
Side cover screw
