3 Install M6 core spring nuts on the front and rear of the existing rack.
Install M6 core spring nuts at the bottom of the front H frame of the rack, on the side to be
connected to the other rack (right side when viewed from the front).
Install M6 core spring nuts at the bottom of the rear H frame of the rack, on the side to be
connected to the other rack (left side when viewed from the rear).
For information on the procedure for installing the core spring nuts, see "4.2 Installing and
Removing Core Spring Nuts".
’
4 Attach the shield rubber on the connection side.
Attach vertical shield rubber jointing strips 1 and 2 to the front and rear H frames on the right
side of the existing rack.
Either one can be attached to the top.
For information on the locations for attaching them, see the detailed figure that shows the
locations for attaching the vertical shield rubber jointing strips.
Attach the horizontal shield rubber jointing strip to the upper D frame on the right side of the
existing rack.
For information on the location for attaching it, see the detailed figure that shows the
locations for attaching the horizontal shield rubber jointing strips.
’

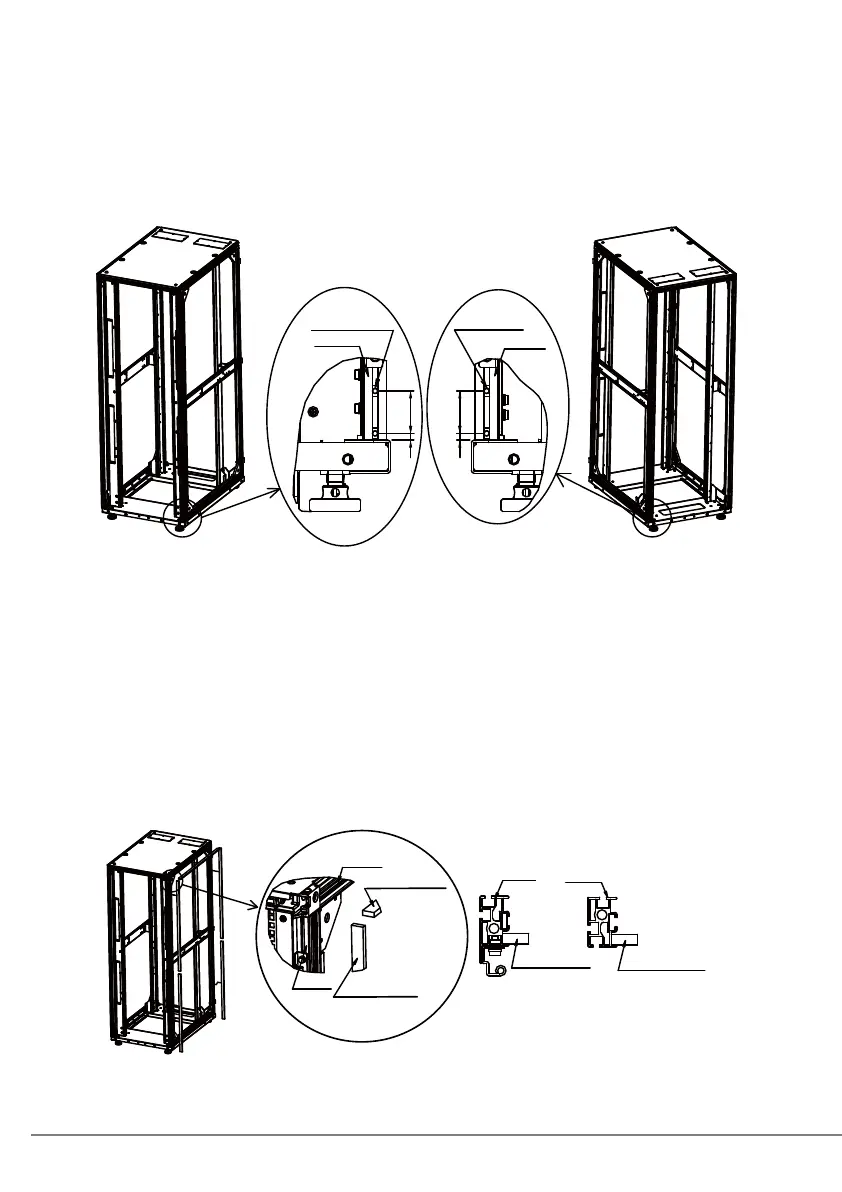

Front
Rear
H frame
M6 core spring nut
H frame
M6 core spring nut
D frame
H frame
Vertical shield rubber
jointing strip
Horizontal shield rubber
jointing strip
Positioning of vertical shield rubber
jointing strip in detail
H frame
Vertical shield rubber
jointing strip
Positioning of horizontal shield rubber
jointing strip in detail
D frame
Horizontal shield rubber
jointing strip
