4 Handling the Rack after Installation 137
E

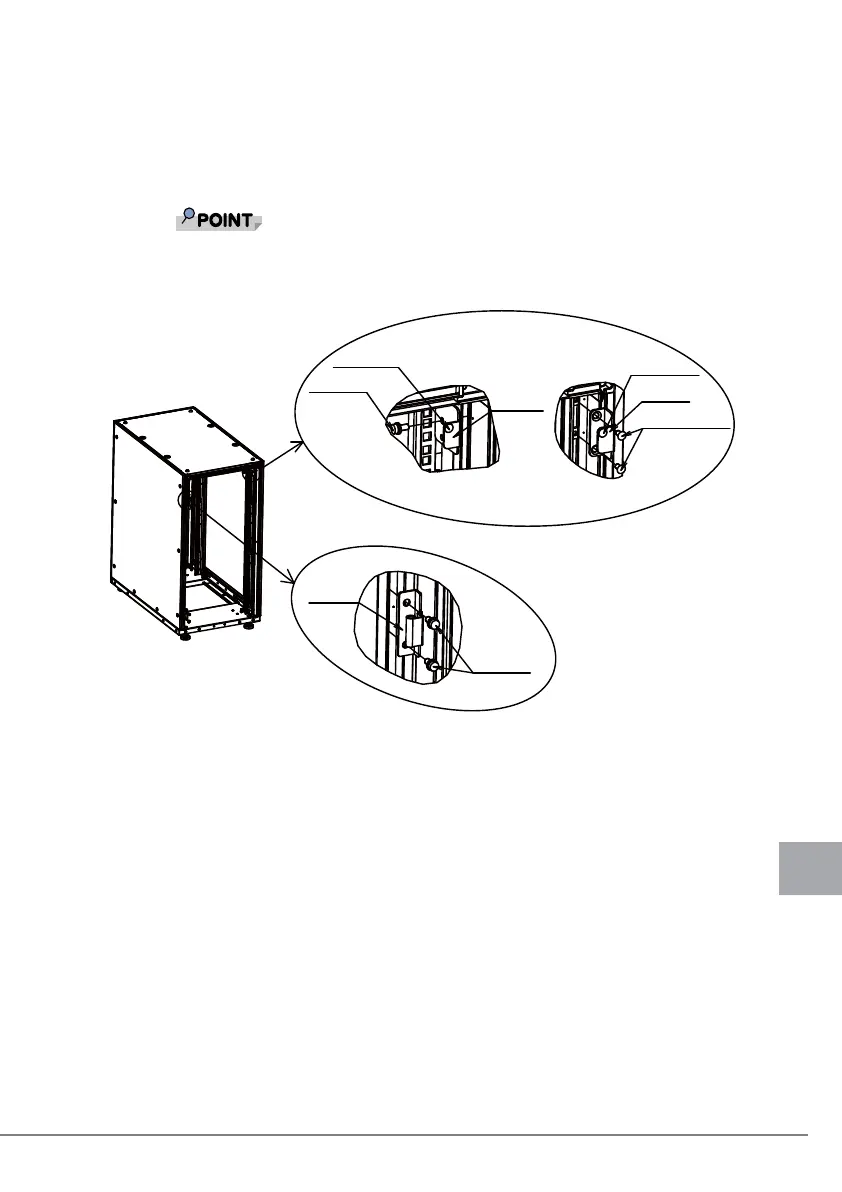

4 Install the rack-side hinges and lock plates.
・ Using the bar nuts for the hinges installed in step 3, secure the rack-side hinges with M6
screws to the upper and lower parts of the frame.
・ Use the core spring nuts to install lock plates to the upper and lower parts of the frame.
(For Models 2724, 2737, 2742, 2616, and 2624): Secure them with M6 screws.
(For Model 2642): Secure them with M5 screws.
Confirm that the shield rubber is attached to the upper and lower lock plates.
Upper lock: The shield rubber should be along the top.
Lower lock: The shield rubber should be along the bottom of the bracket.
Model 2642
Shield rubber
Model 2724/2737/2742
Model 2616/2624
M6 screws
Lock plate
M6 screw
Lock plate
M5 flat head screws
Rack-side
hinge
Shield rubber
To Next Page
