138

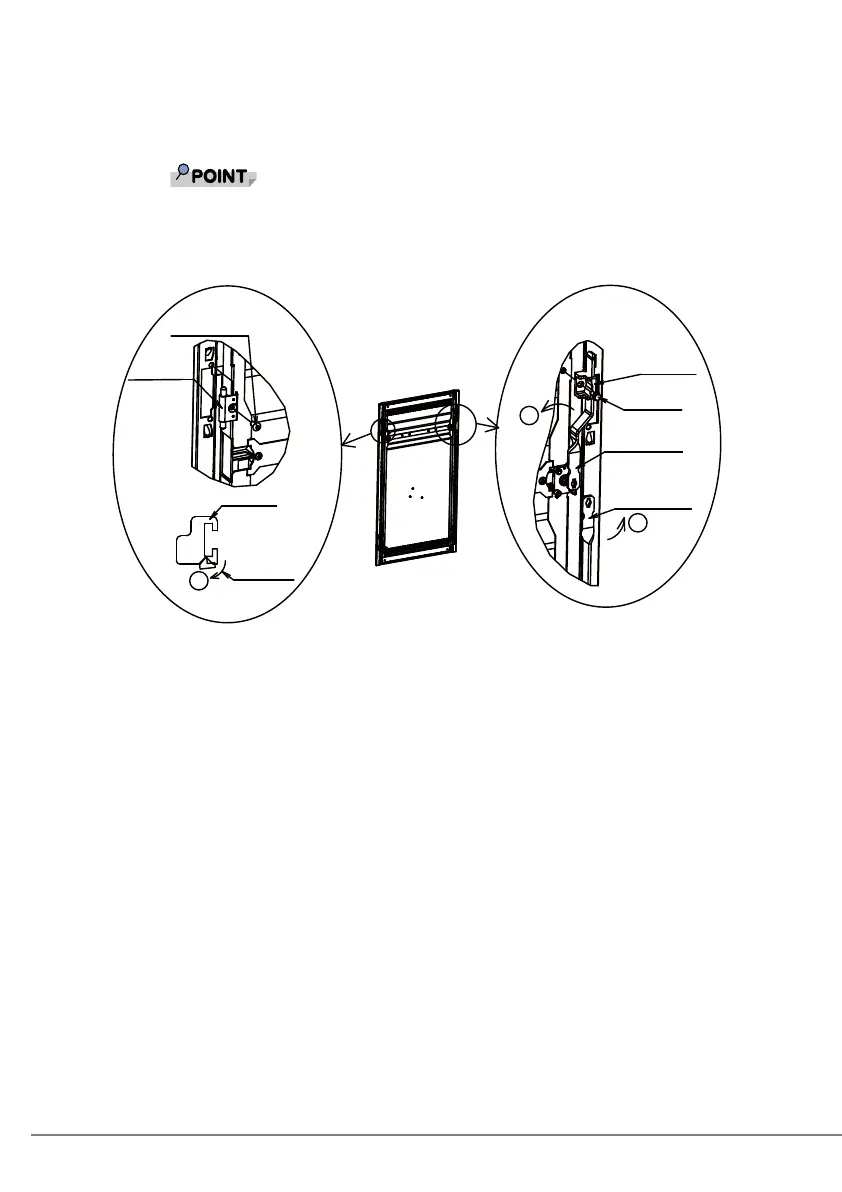

5 Remove the door-side hinges and the door bars.
・ Remove the M5 hexagon socket bolts to remove the door-side hinges.
・ Remove the M4 screw to remove the rail guide and the upper and lower door bars.
・ Remove the rail guide from the door bar.
Remove the upper and lower door bars by rotating the bar in the direction of arrow
(1).
When removing the rail guide from the door bar, bend it as shown at (2) in the
figure.
Door-side
hinge
M5 hexagon
socket bolt
M4 screw
Upper door bar
Bending of
guide
Rail guide
Rail guide
Lower door bar
To Next Page
