  4 Handling the Rack after Installation  141
E

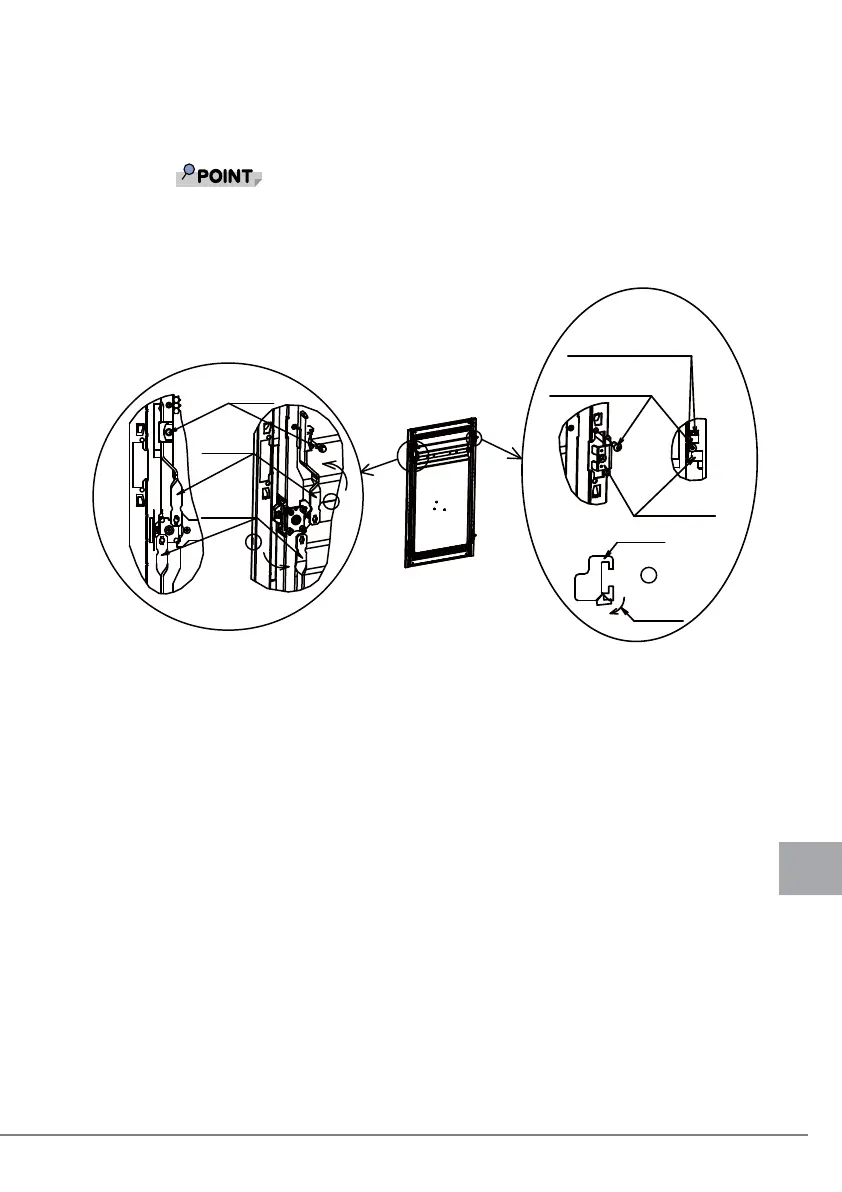

8 Install the door-side hinges and the door bars.
Install the door-side hinges with the M5 hexagon socket bolts.
Install the rail guide on the door bar.
Install the rail guide and the upper and lower door bars using M12 screws.
Push the door-side hinge straight into the metal plate of the door.
Install the upper and lower door bars by rotating the tilted bar to orientation (1).
When removing the rail guide from the door bar, bend it as shown at (2) in the
figure.
Bending of
guide
Door-side hinge
M5 hexagon socket bolt
M4 screw
Upper door
bar
Lower door
bar
Rail guide
ࠬࠤ࡯࡞
Firmly push top and side
of door hinge straight into
metal plate of door
