146

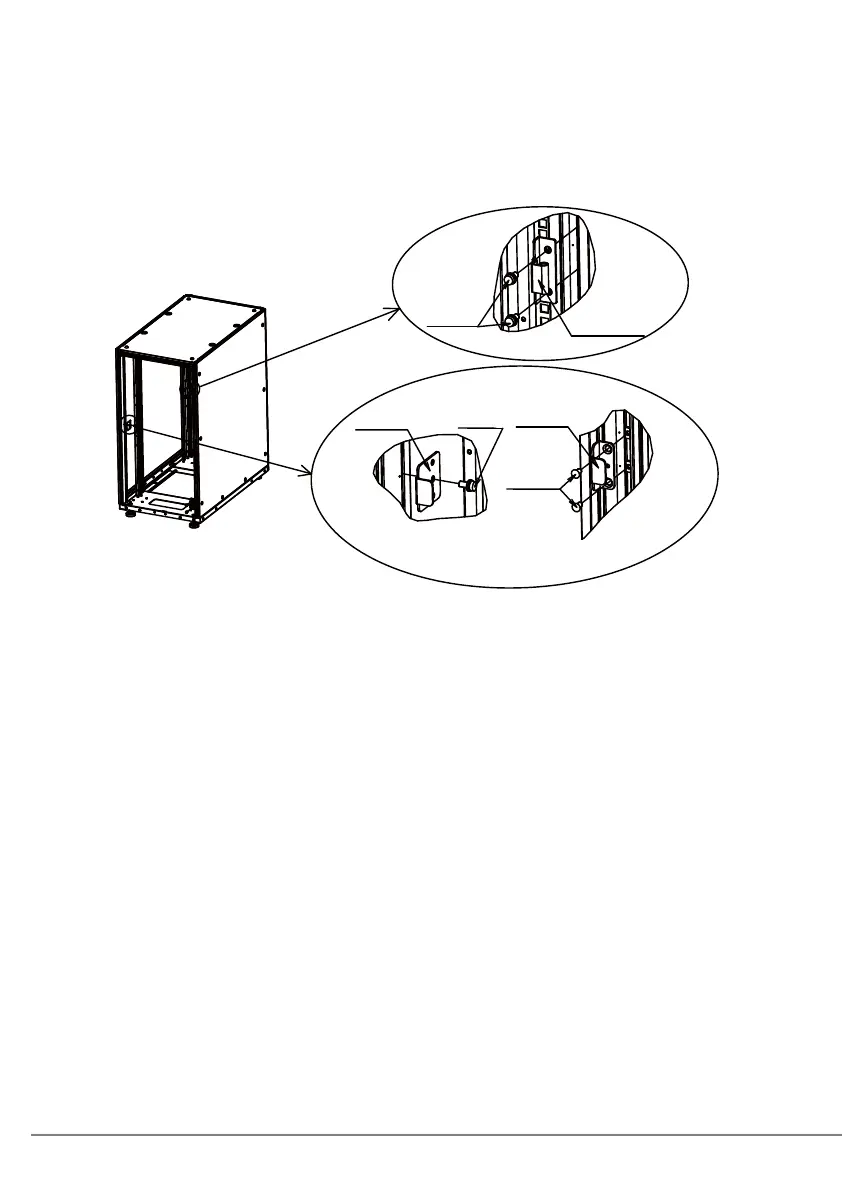

4 Install the rack-side hinges and lock plates.
・ Using the bar nuts for the hinges installed in step 3, secure the rack-side hinges with M6
screws to the H frame.
・ Use the core spring nut(s) to install a lock plate near the center of the frame.
(For Models 2724, 2737, 2742, 2616, and 2624): Secure it with an M6 screw.
(For Model 2642): Secure it with M5 screws.
Model 2642
Model 2724/2737/2742
Model 2616/2624
Lock plate
Lock plate
M6 screws
Rack-side hinge
M6 screw
M5 screws
To Next Page
