152

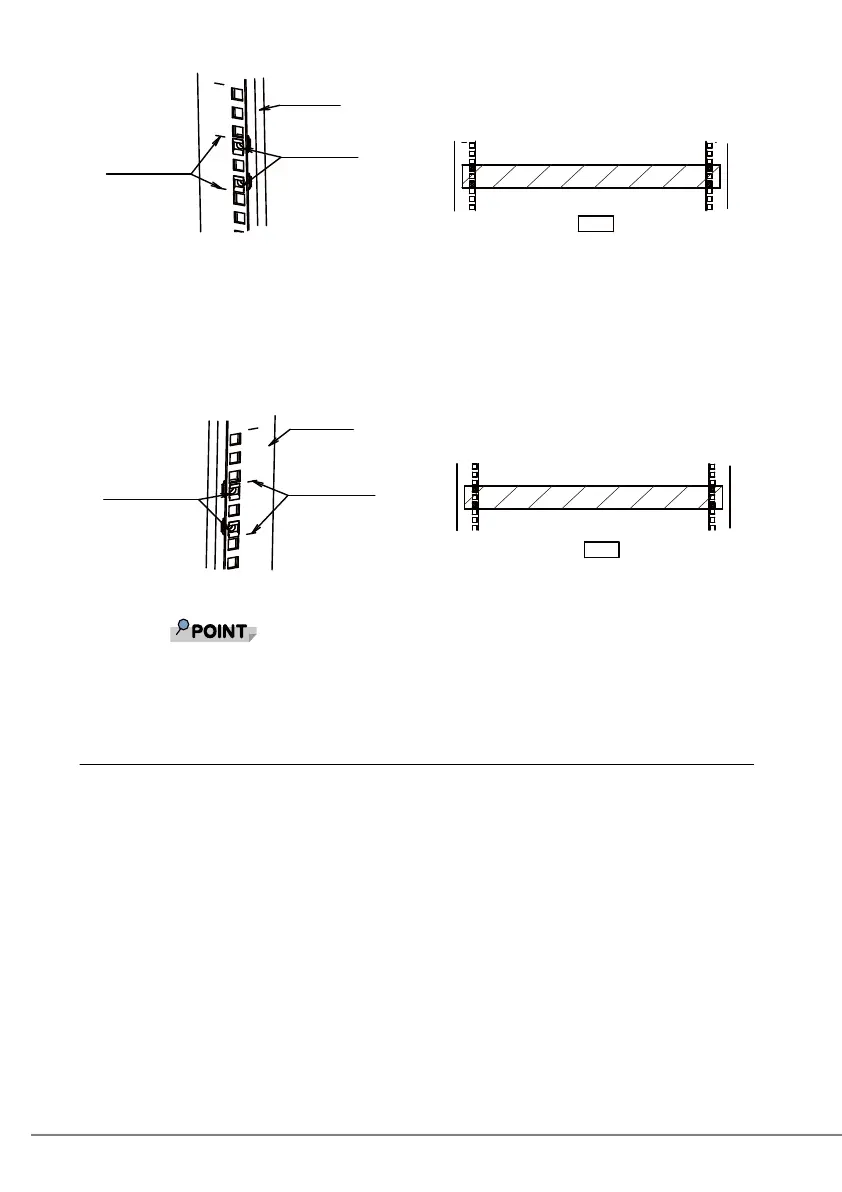

2 Open the rear door, and insert the M6 cage nuts into the rear post of the
rack.
The mounting locations are as follows: one nut in each of the upper and lower square holes
among the three square holes (height of 1 U) at the location line marking the mounting
location of the table. Two nuts on each of the left and right sides make up a total of four nuts.
Align the heights of all attached M6 cage nuts.
4.4.2 Attaching rear brackets and temporarily mounting the
table
1 Using the rear M6 cage nuts that were attached in step 2 according to
"4.4.1 Inserting cage nuts" temporarily fix rear brackets R and L to the rack
post.
Use M6 screws to fix the brackets in position.
Mounting location (1 U)
Front
Location lines
Rack post
M6 cage nuts
Rear
Location lines
Rack post
M6 cage nuts
Mounting location (1 U)
To Next Page
