In step 2, you will mount the table on rear brackets L and R. Temporarily fix the
rear brackets in position to the extent that the table will not drop down when it is
placed on the rear brackets.
Carefully follow the installation directions for rear brackets L and R.

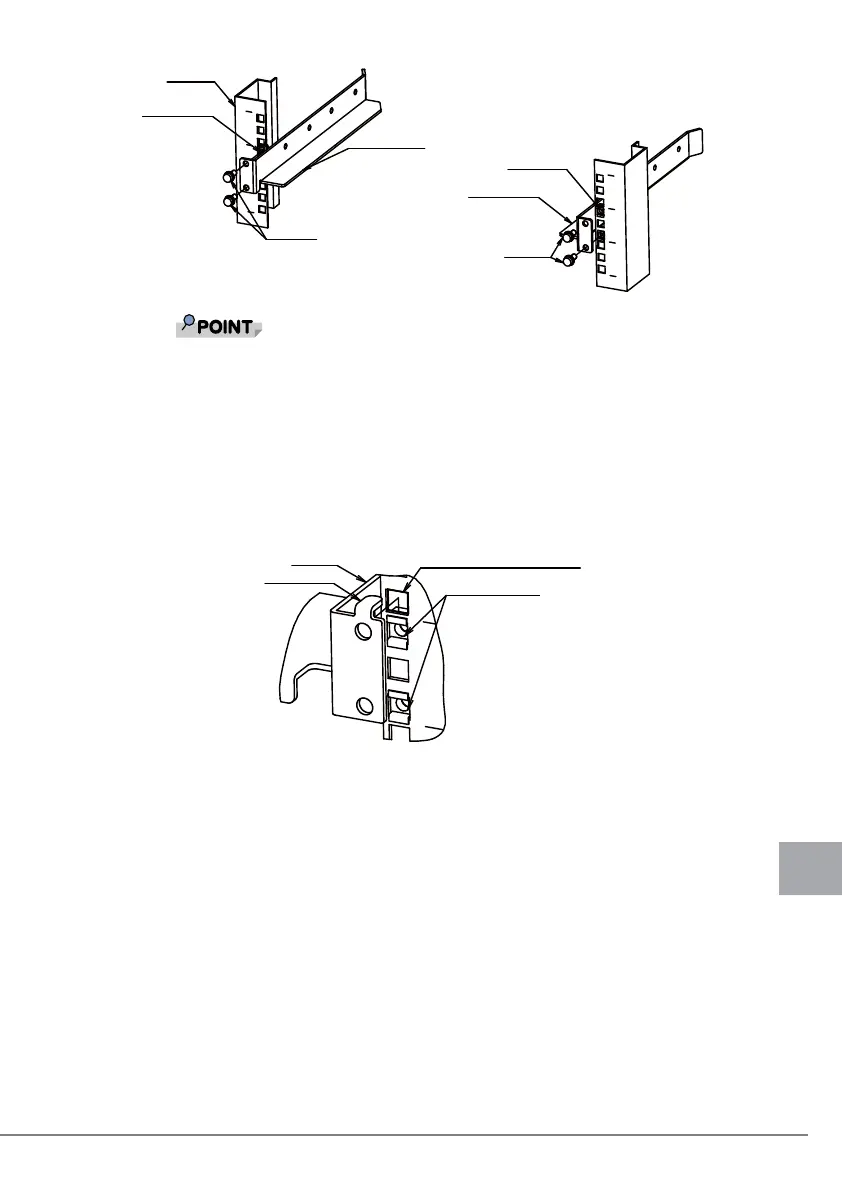

2 Temporarily mount the table by inserting the hook at the front of the table
into the square hole right above the M6 cage nut that was attached in step
2 according to "4.4.1 Inserting cage nuts".
Place the rear of the table on the rear brackets L and R that were attached in step 1.
M6 screws
Rear bracket R
Rear bracket L
Rack post
M6 cage nut
M6 cage nut
M6 screws
M6 cage nuts
Table
Hook
Square hole for inserting hook
To Next Page
