158
4.5.1 Inserting cage nuts
Insert the M5 and M6 cage nuts into the rack posts (front and rear).
For information on the procedure for inserting the cage nuts, see "4.1 Inserting and Removing Cage
Nuts".
1 Open the front door, and insert the M6 cage nuts into the front post of the
rack.
Insert the M5 cage nuts into the center square hole among the three square holes (height of
1 U) at the location line marking the mounting location of the table. One nut on each of the
left and right sides makes up a total of two nuts.
Insert the M6 cage nuts into the upper and lower square holes among the three square holes
(height of 1 U) at the location line marking the mounting location of the table . Two nuts on
each of the left and right sides make up a total of four nuts.
2 Open the rear door, and insert the M6 cage nuts into the rear post of the
rack.
The mounting locations on rack posts are as follows: one nut in each of the upper and lower
square holes among the three square holes at the location line. Two nuts on each of the left
and right sides make up a total of four nuts.
Align the heights of all attached M6 cage nuts.
Attach the M5 cage nuts to only the front posts of the rack, not to the rear posts.

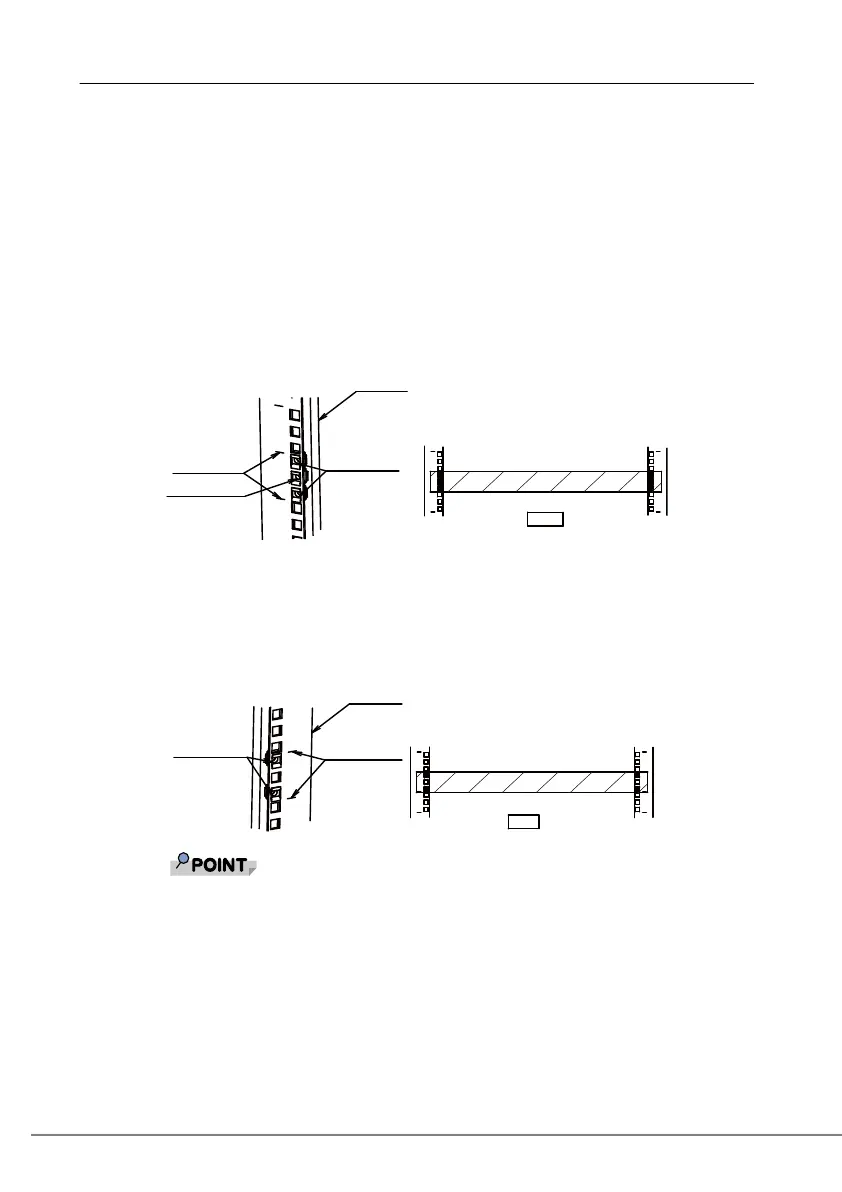

Mounting location (1 U)
Front
Location lines
M6 cage nuts
Rack post
M5 cage nut
Rear
M6 cage nuts
Rack post
Location lines
Mounting location (1 U)
To Next Page
