4.6.1 Inserting cage nuts
Insert M5 cage nuts into the rack posts (front and rear).
For information on the procedure for inserting the cage nuts, see "4.1 Inserting and Removing Cage
Nuts".

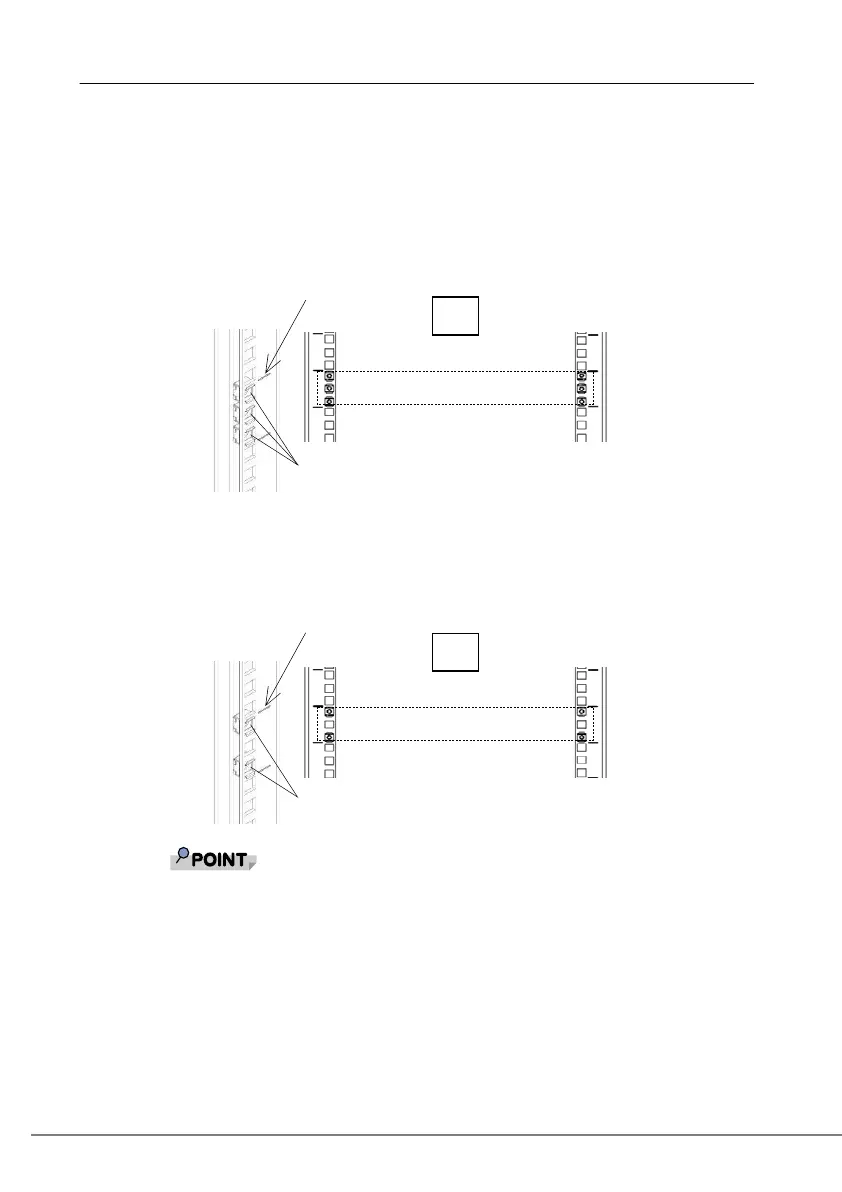

1 Insert M5 cage nuts into the front rack posts.
The mounting locations on the front of the rack are as follows: one nut in each of the three
square holes (height of 1 U) at the location line marking the mounting location of the table.
Three nuts on each of the left and right sides make up a total of six nuts.
2 Insert M5 cage nuts into the rear rack posts.
The mounting locations on the rear of the rack are as follows: one nut in each of the upper
and lower square holes among the three square holes at the location line. Two nuts on each of
the left and right sides make up a total of four nuts.
Align the heights of all attached M5 cage nuts.
Front
Mounting location (1 U)
M5 cage nuts
Location line
Rear
M5 cage nuts
Location line
Mounting location (1 U)
