LANDOCK
The LANdock is powered from an AC adapter
which comes with it.
To Install your Notebook in a docking device:
1. Put your notebook in Suspend mode or
turn off the power.
2. To use a docking device with your note-
book they both must be on a flat surface.
3. Remove all connections from the rear panel
of your notebook. (See Figure 1-9 on
page 8.)
4. Make sure that the adjustment feet are flat
against the bottom of the notebook and the
covers of the connectors, both rear panel
and right side panel,are closed.
5. Make sure that the slide cover in the rear
panel is completely open.
If the total memory displayed is not what you
believe it should be, check that your memory
upgrade module is properly installed. If it is
properly installed and the capacity is not cor-
rectly recognized,see the Troubleshooting
Section starting on page 119.

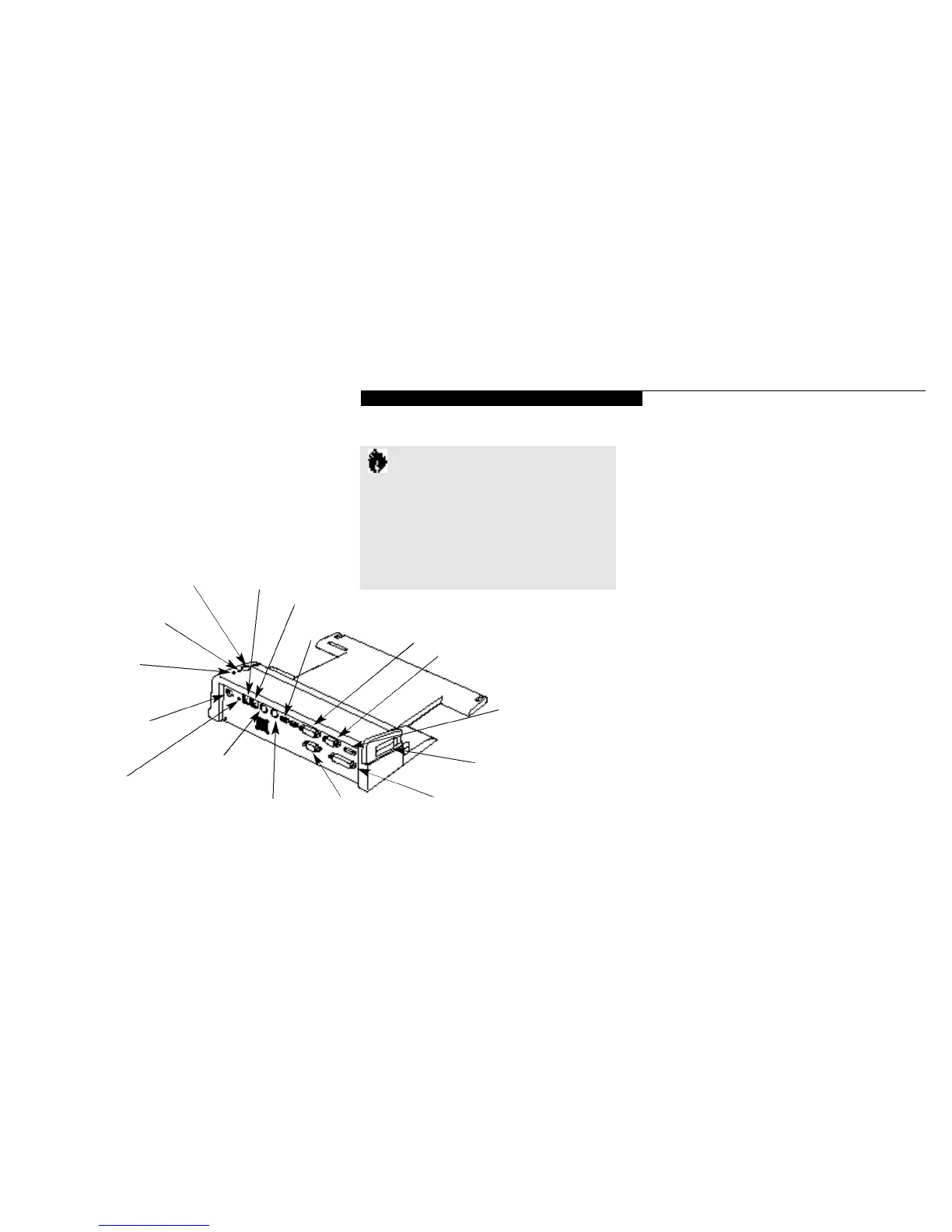

Figure 4-14 LANdock Rear View
Undock Request Button
PCCard Slot
External Monitor Port
External Floppy
Disk Drive Port
Headphone
Jack
MIDI/Joystick Port
Dual USB Ports
RJ-11 Jack
RJ-45 Jack
Ready to Undock LED
Docked LED
DC Power Jack
Serial Port
PS/2 Mouse Port
Parallel Port
PS/2 Keyboard Port
