Fujitsu AOU9RLS3 User Manual

- (01 - 22) -
WALL MOUNTED TYPE ASU9-15RLS3 WALL MOUNTED TYPE ASU9-15RLS3

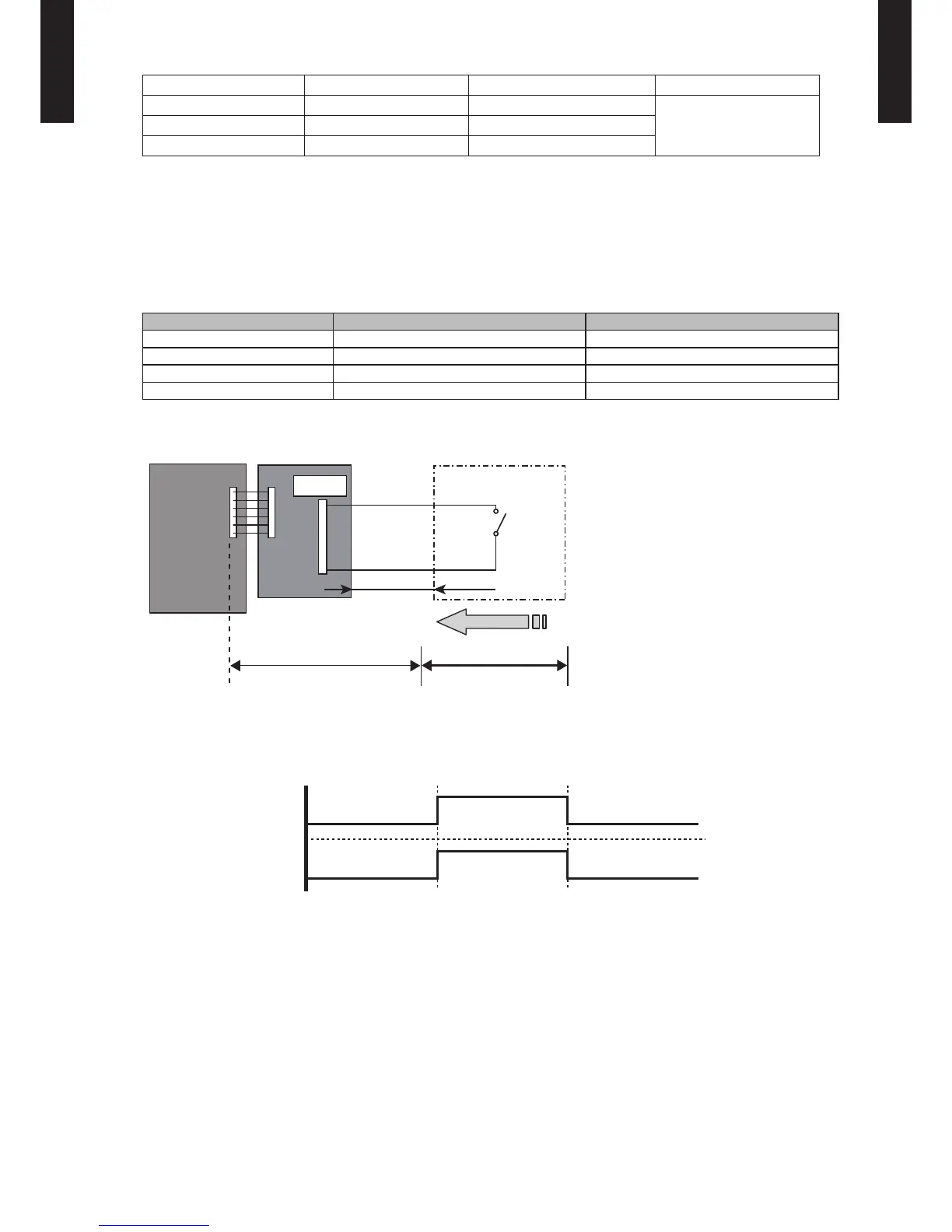

EXTERNAL INPUT & OUTPUT10.
Connector INPUT OUTPUT REMARKS
CNA01 Control input -
See external
input/output settings
for details.
CNB01 - Operation status output
CNB02 - Error status output
EXTERNAL INPUT10-1.
CONTROL INPUT (Operation/Stop or Forced stop)

The air conditioner can be remotely operated by means of the following on-site work.
"Operation/Stop" mode or "Forced stop" mode can be selected with function setting of indoor unit.
Unit operation is started at the following contents by adding the contact input of a commercial ON/OFF switch to a
connector on the external control PC board and turning it ON.
Unit operation Initial starting after turned power on Other than initial starting
Operation mode Auto changeover Mode at previous operation
Set temperature 75°F (24°C) Temperature at previous operation
Air ow mode AUTO Mode at previous operation
Air direction (swing) Standard air direction (swing OFF) Air direction at previous operation
Circuit diagram example
z
Signal
Field supply
Indoor
control PC board Communication kit
Optional parts
Connector
1
3
*33ft. (10m)
Connected unit
Ex.) Switch
* Make the distance from the PC board to the connected unit within 10m.
Contact capacity : 24VDC or more, 10mA or more.
Please use the non-polar relays and switches.
When function setting is "Operation/Stop" mode
z
Operation
Stop
ON
OFF
Input signal
Indoor unit
