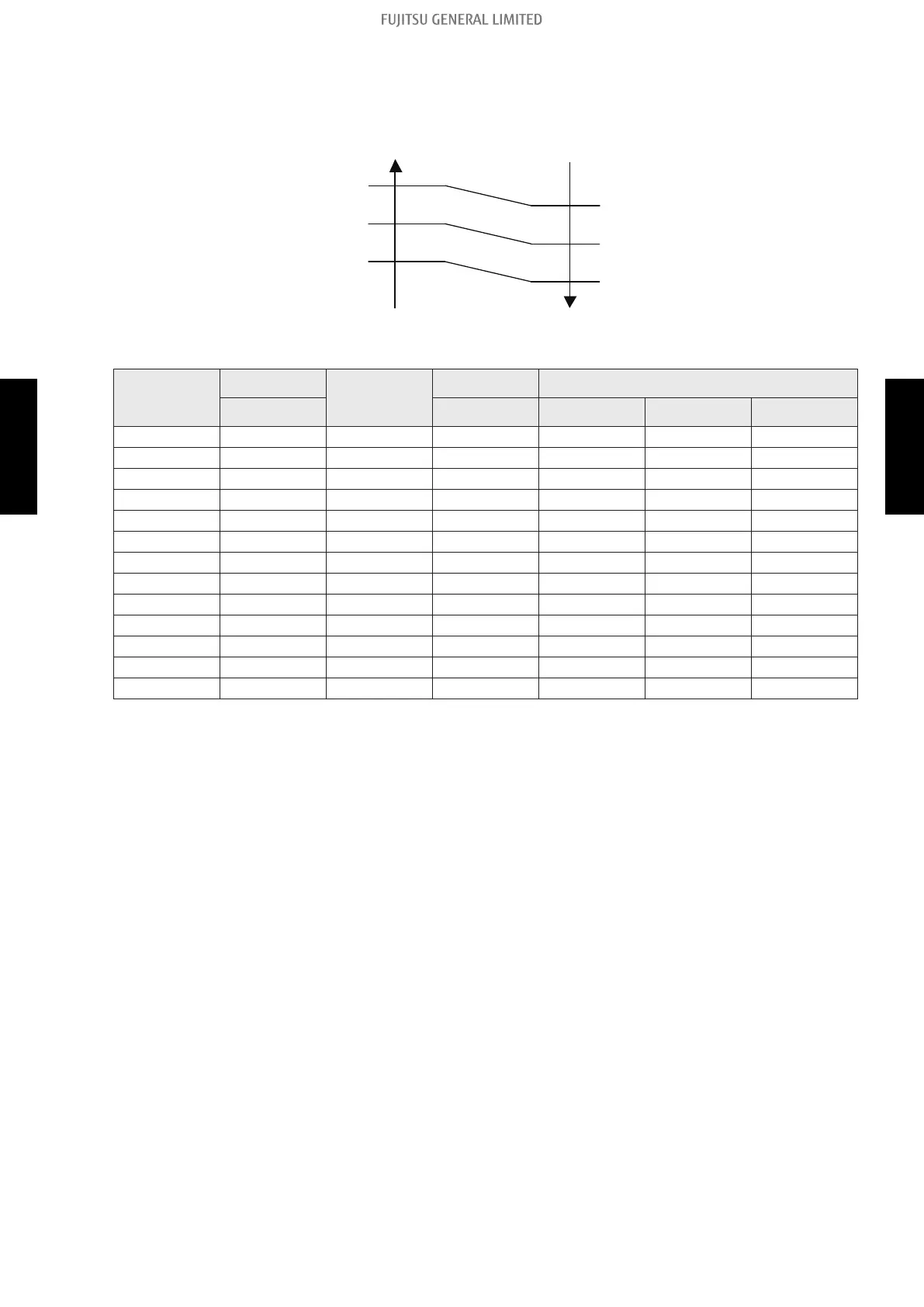

Fan speed is defined by outdoor temperature and compressor frequency.
• Outside air temperature zone selection
21°C
Outside air
temperature rises
Z zone
Y zone
F zone
G zone
Outside air
temperature drops
12°C
2°C
19°C
10°C
0°C
Unit: rpm
Fan step
Cooling
Heating
Dry Cooling or dry at low outdoor temp.
Y zone Y zone Z zone F zone G zone
S-HIGH2 — 1,100 — — — —
S-HIGH1 1,050 1,100 — — — —
HIGH 1,050 1,100 — — — —
10 — 1,100 — — — —
9 1,050 1,100 1,050 1,050 270 190
8 1,050 850 1,050 1,050 270 190
7 1,030 760 1,030 1,030 220 190
6 870 670 870 870 220 190
5 770 510 770 770 220 190
4 570 470 570 570 220 190
3 510 420 510 510 220 190
2 400 420 400 400 220 190
1 400 420 400 400 220 190
3-2. Outdoor fan control - (04-14) - 3. Fan control
