3. Outdoor unit parts list
3-1. Models: AOYG09KHCAN, AOYG12KHCAN, and
AOYG14KHCAN

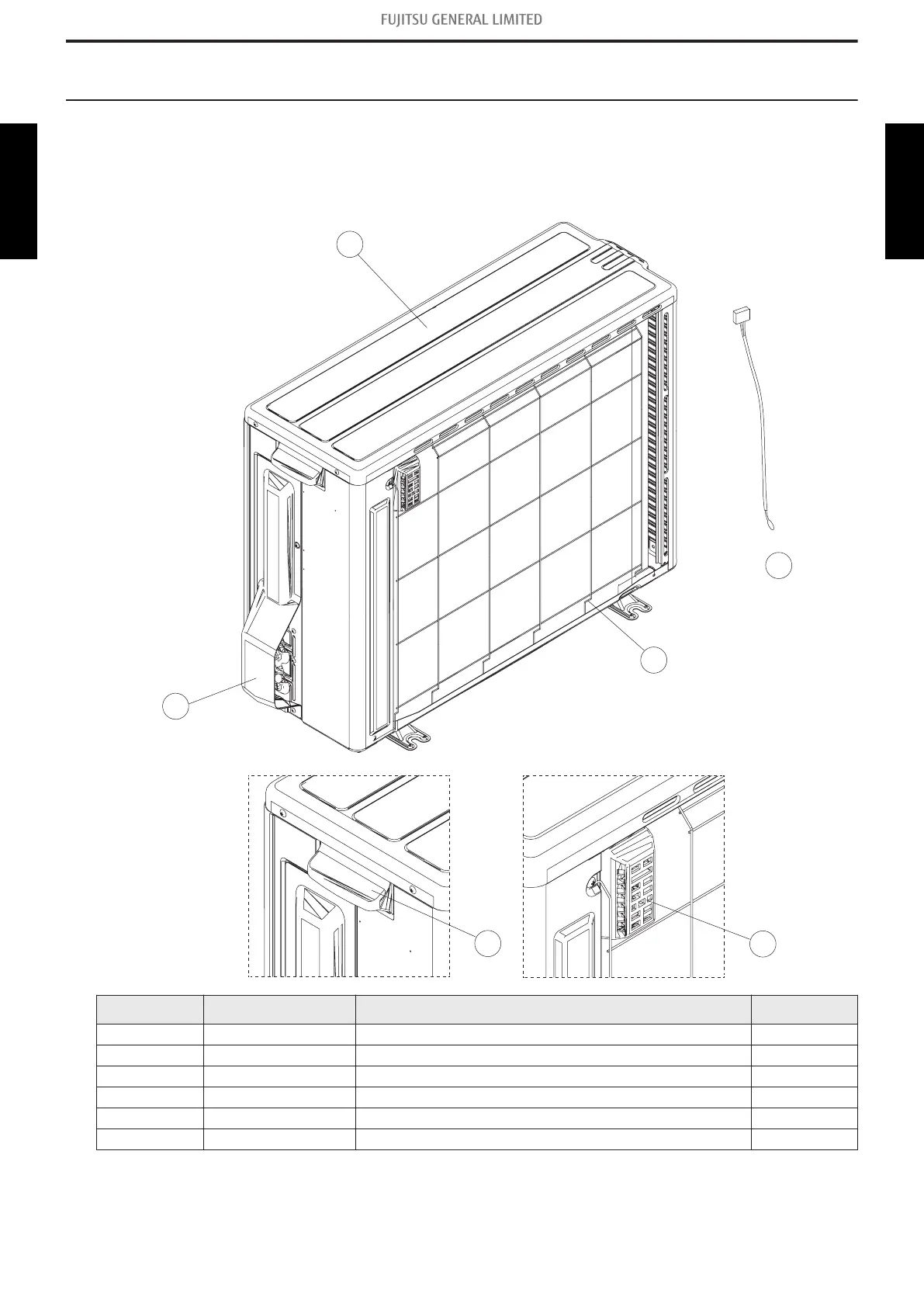

¢ Exterior parts
3
2
6
1
4
5
Item no. Part no. Part name Service part
1 9900565008 Thermistor (Outdoor temp.) ♦
2 9313954031 Thermistor holder ♦
3 9332492002 Protective net ♦
4 9317939188 Top panel assy ♦
5 9318499001 Switch cover assy ♦
6 9317588003 Grip ♦
3-1. Models: AOYG09KHCAN, AOYG12KHCAN, and AOYG14KHCAN - (02-8) - 3. Outdoor unit parts list
