Fresh air control output
Indoor unit type Connector
Compact cassette
CN6
Slim duct
Wall mounted —
Floor/Ceiling —
Floor —
Signal linked to air conditioner indoor fan on can be output.
* However, signal becomes off during cold air prevention control operation.

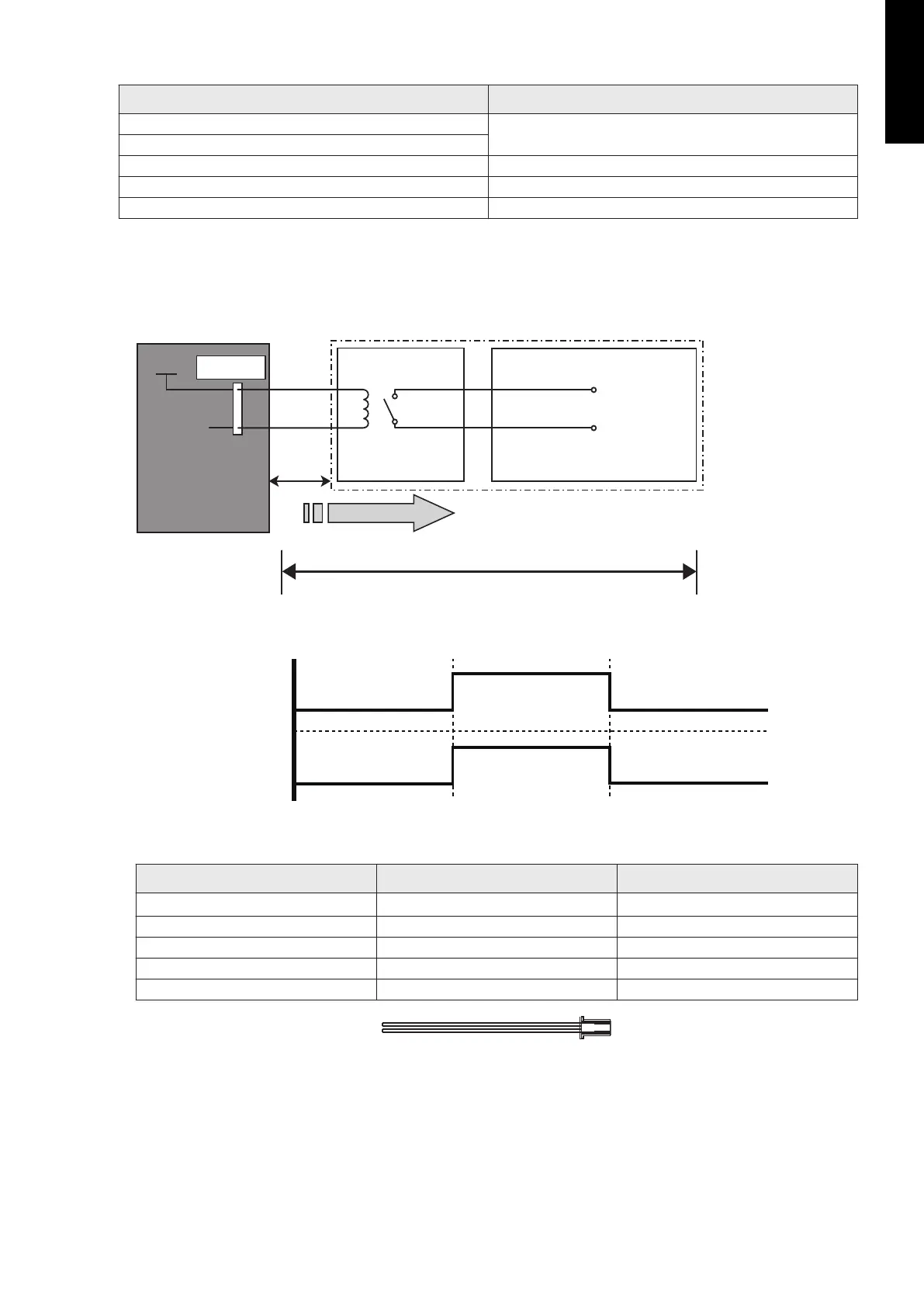

• Circuit diagram example
Locally purchased
Indoor unit
control PCB
Connector
1
12 V
On/Off
2
Signal
Relay
power
supply
Example: Fan
Connected unit
Example:
Relay unit
10 m*
– *: Make the distance from the PCB to the connected unit within 10 m.
– Relay spec.: Rated DC 12 V, 50 mA to less.
On
Off
Operation
Stop
Indoor fan
Output signal
• Optional part
Indoor unit type Part name Model name
Compact cassette Fresh air intake kit
UTZ-VXAA
*
Slim duct External control set UTD-ECS5A
Wall mounted — —
Floor/Ceiling — —
Floor — —
*: This wire is included in fresh air intake kit (UTZ-VXAA).
- 143 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
