Fujitsu AOYG36LBLA5 User Manual


Auxiliary heater output
Indoor unit type Connector
Compact cassette —
Slim duct CN10
Wall mounted —
Floor/Ceiling —
Floor —
Signal is output from connector when indoor fan and compressor turn on under heating operation.

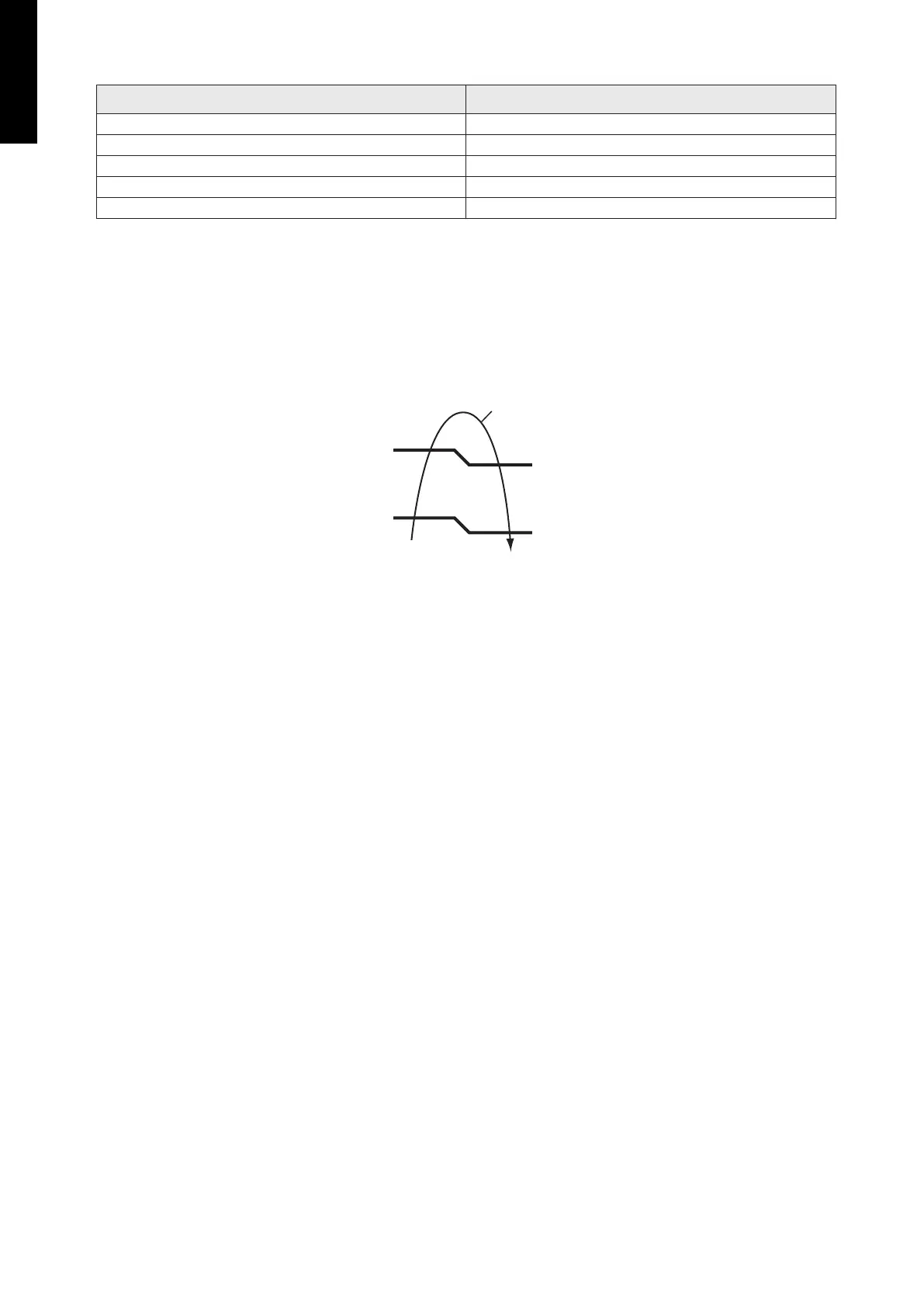

*Signal output performance specifications are as shown as follows:
Example: When Set Temperature (Ts) is 22 °C
• and room temperature (Tr) increase above 12 °C, signal output is on.
• and room temperature (Tr) increase above 21 °C, signal output is off.
• and room temperature (Tr) decrease below 19 °C, signal output is on.
• and room temperature (Tr) decrease below 10 °C, signal output is off.
Off
Off
On
Tr-Ts
Tr-Ts=-1 °C
Tr-Ts=-10 °C
Tr-Ts=-3 °C
Tr-Ts=-12 °C
• Fan delay setting (JM3)
This is used to continue indoor unit fan operation for 1 minute after thermostat "Off" in heating
mode.
1 minute delay control set by cutting jumper wire on PCB.
DESIGN & TECHNICAL MANUAL
- 144 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
