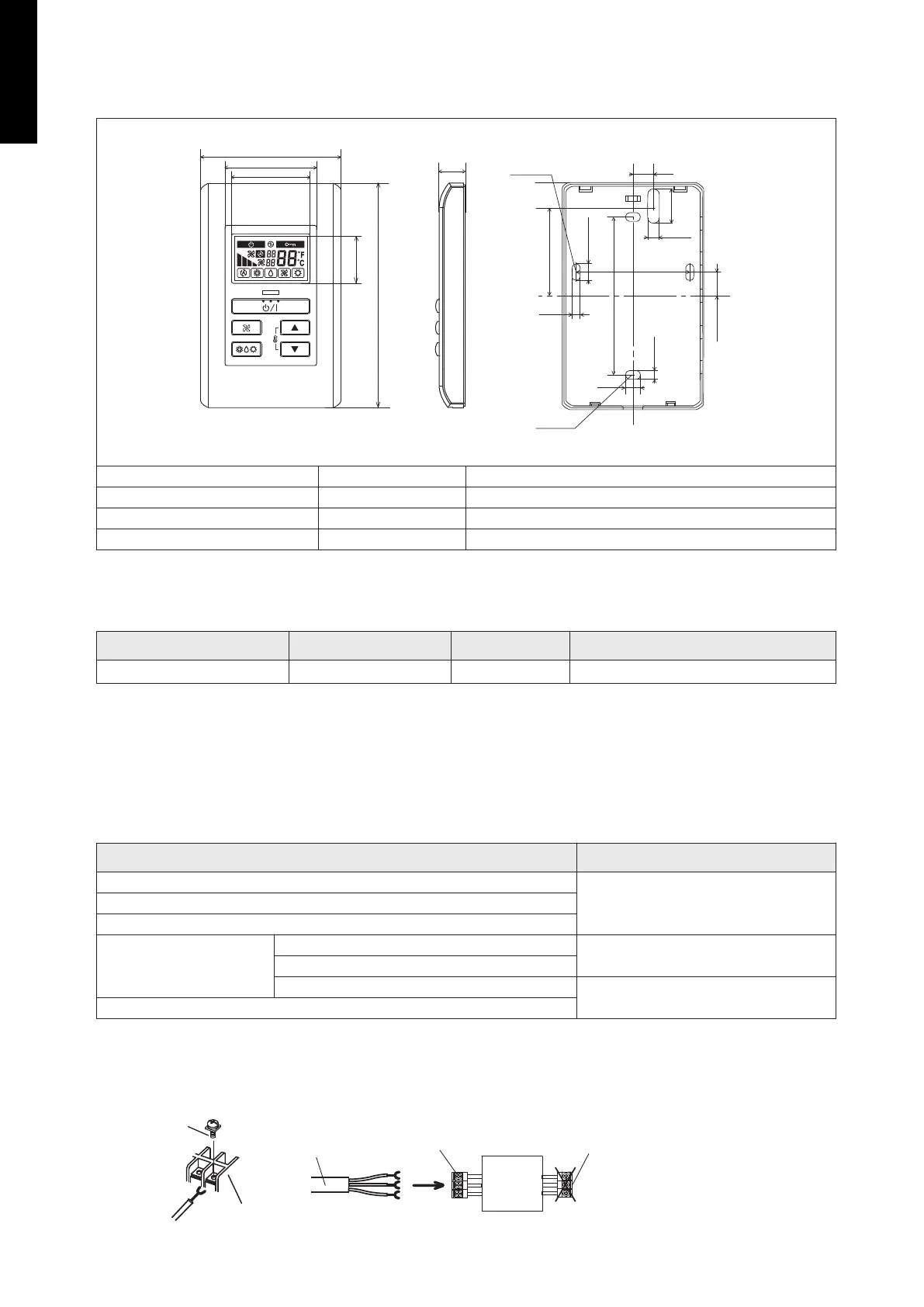

Specifications
Dimensions and other specifications on the wired remote controller are as follows.
Unit: mm
120
75
49
39
23.5
14
4
11
4.5
12.5
hole x 2
hole x 2
8
60
6
18
9
47.5
83.5
Front View Side View Rear View
Size (H × W × D) mm 120 × 75 × 14
Weight g 90
Cable length (accessory) m 10
Power V 12
 Wiring specifications
Use Size Wire type Remarks
Remote controller cable
0.33 mm
2
Polar 3 core Use sheathed PVC cable.
¢
Installation
 Connection pattern
NOTE: Connection pattern is different according to type of Indoor unit.
Indoor unit type Connection pattern
Compact cassette
Pattern ASlim duct, Mini duct
Floor/Ceiling
Wall mounted
LU
Pattern B
LM
LF
Pattern C
Floor
 Pattern A
Connect the end of remote controller cable directly to the exclusive terminal block.
PCB
M4 screw
Terminal block
Remote controller cable
Remote controller
terminal block
Outdoor unit or Power supply terminal
block or Remote controller terminal block
DESIGN & TECHNICAL MANUAL
- 192 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
