Fujitsu AOYG36LBLA5 User Manual


Function setting procedure
1. Connect the power supply of the outdoor unit.

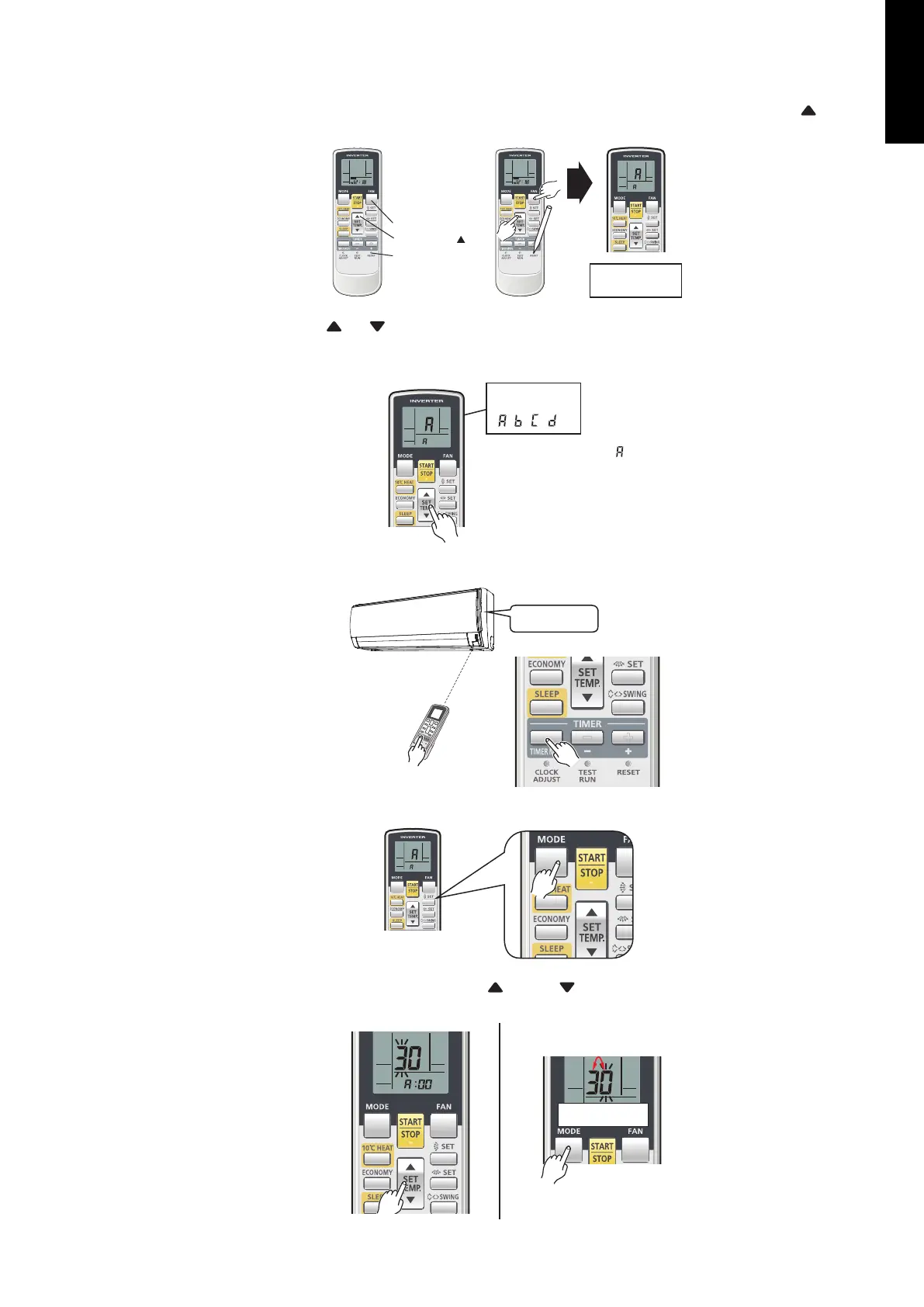

2. To enter the function setting mode, while holding down the FAN and the SET TEMP. but-
tons, press the RESET button.
Function setting
mode display
SET TEMP. ( )
RESET
FAN
3.
Press the SET TEMP.
or buttons to select the custom code that matches the setting
with the indoor unit. By selecting the appropriate custom code, the communication between
the indoor unit and the wireless remote controller become possible.
Custom code
(
--
-
)
The initial setting is " "
4. For confirming the custom code, press the TIMER MODE button to send the code to the in-
door unit.
2 short beeps
5. Press the MODE button to enter the function setting mode.
6. Select the function number by pressing the or the button.
Each time the MODE button is pressed, it switches between the left digit and the right digit.
Change digit
- 203 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
