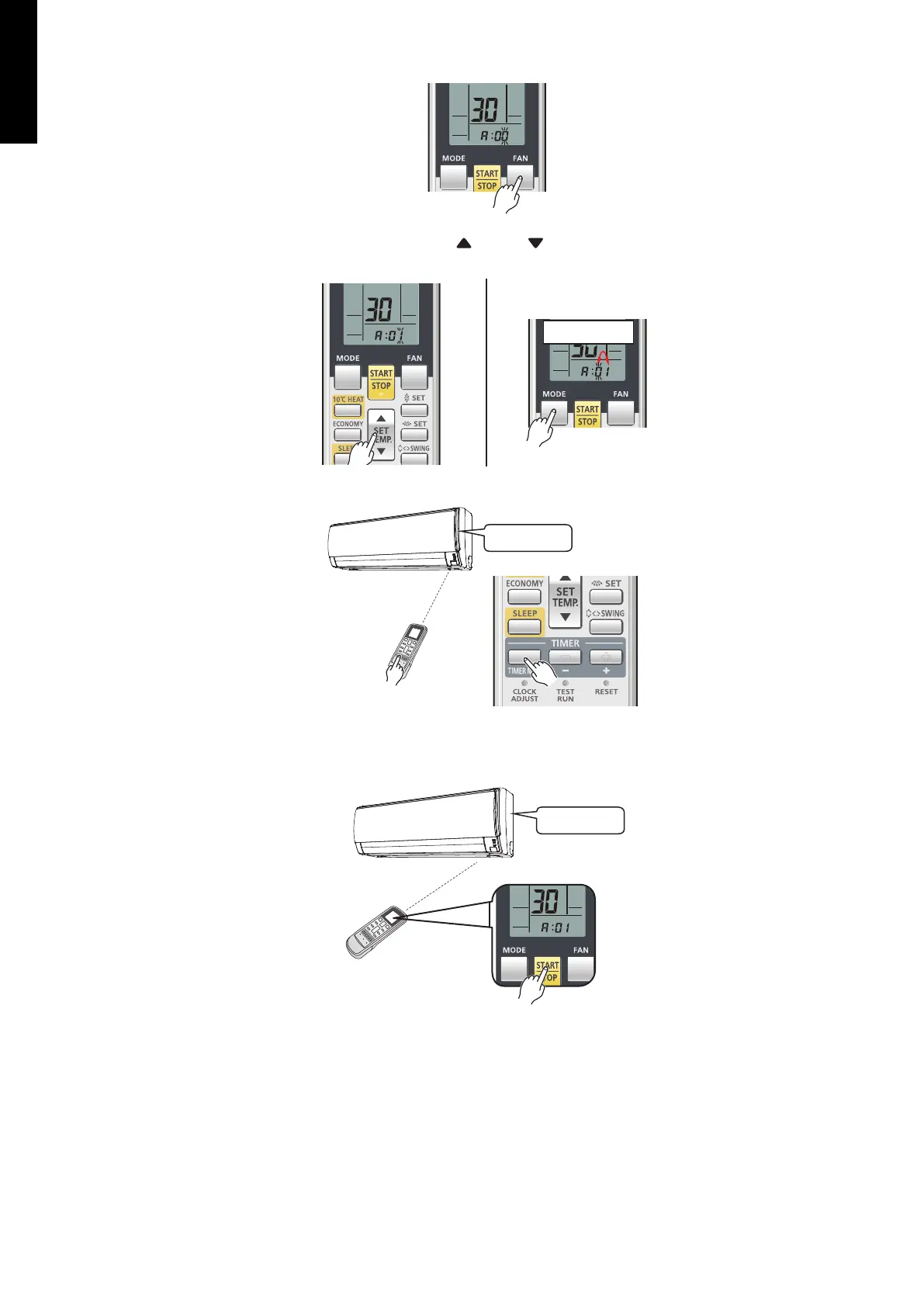

7. Proceed to number setting by pressing the FAN button.
To return to the function number selection, press the FAN button again.
8.
Select the setting number by pressing the or the button.
Each time the MODE button is pressed, it switches between the left digit and the right digit.
Change digit
9. Send the function mode information by pressing the TIMER MODE button once.
2 short beeps
10. Send the function setting information by pressing the START/STOP button once.
2 short beeps will be emitted from the indoor unit when the signal is received correctly. If
wrong code is set, no beep sound will be emitted.
2 short beeps
NOTE:
Press START/STOP button within 30 seconds after pressing TIMER MODE button.
Function details: Refer to Chapter 14-6. "Function details" on page 241.
DESIGN & TECHNICAL MANUAL
- 204 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
