Fujitsu AOYG36LBLA5 User Manual

¢
AR-REA2E

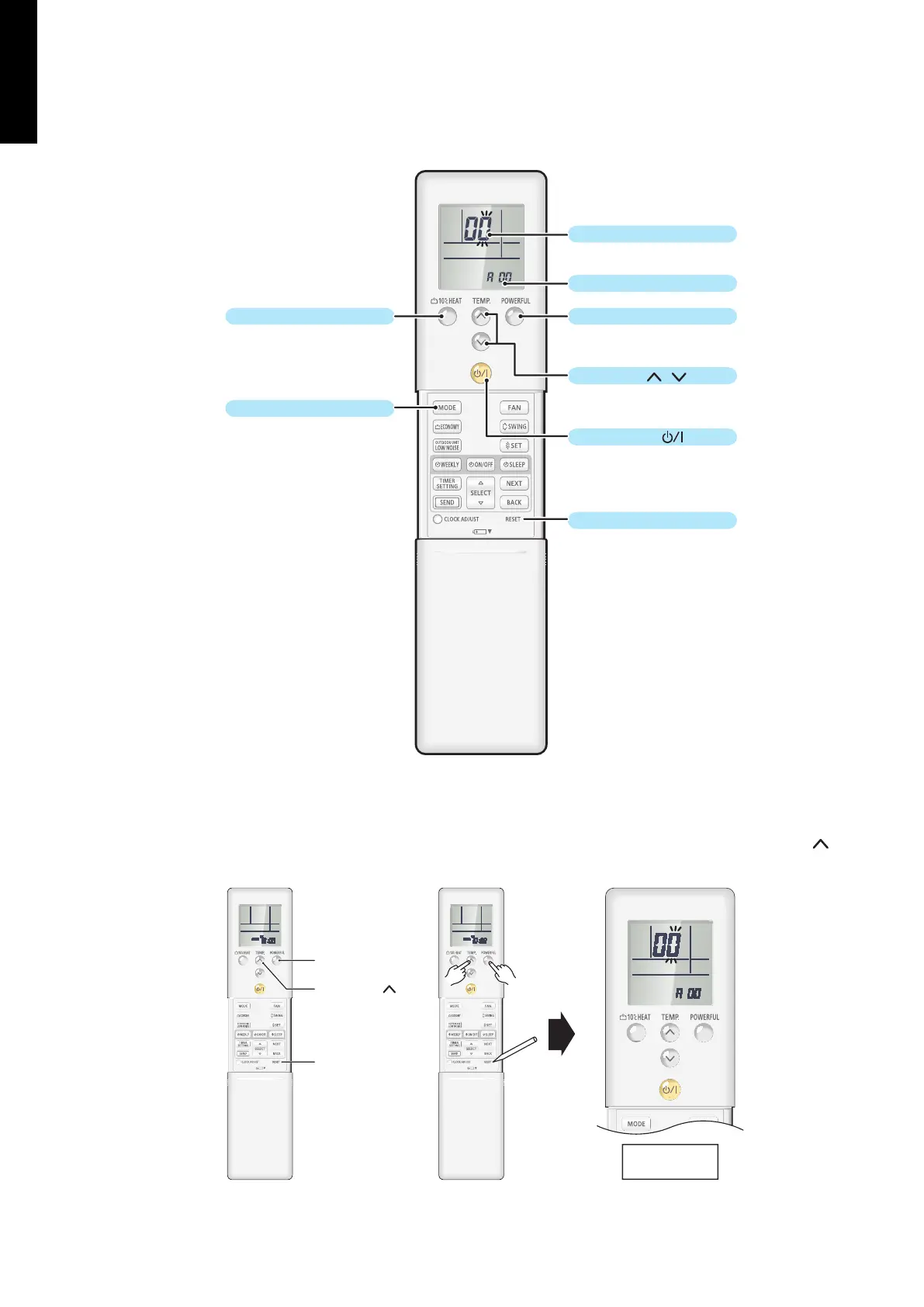

 Button name and function
During address setting mode, indoor unit reject the any operation command from remote con-
troller.
10°C HEAT button
Setting number
Function number
Refer to Function details
Refer to Function details
Switches between the setting number
(bottom line) and function number (top
line)
The displayed number Increases and
decreases
Changes the display digits
Transmits function setting
Transmits functi on m ode
POWERFUL button
SET TEMP. (
/ ) button
START/STOP ( ) button
RESET button
MODE button

Function setting procedure
1. Connect the power supply of the outdoor unit.
2. To enter the function setting mode, while holding down the POWERFUL and SET TEMP.
buttons, press the RESET button.
POWERFUL
SET TEMP.
( )
RESET
Function setting
mode display
DESIGN & TECHNICAL MANUAL
- 208 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
