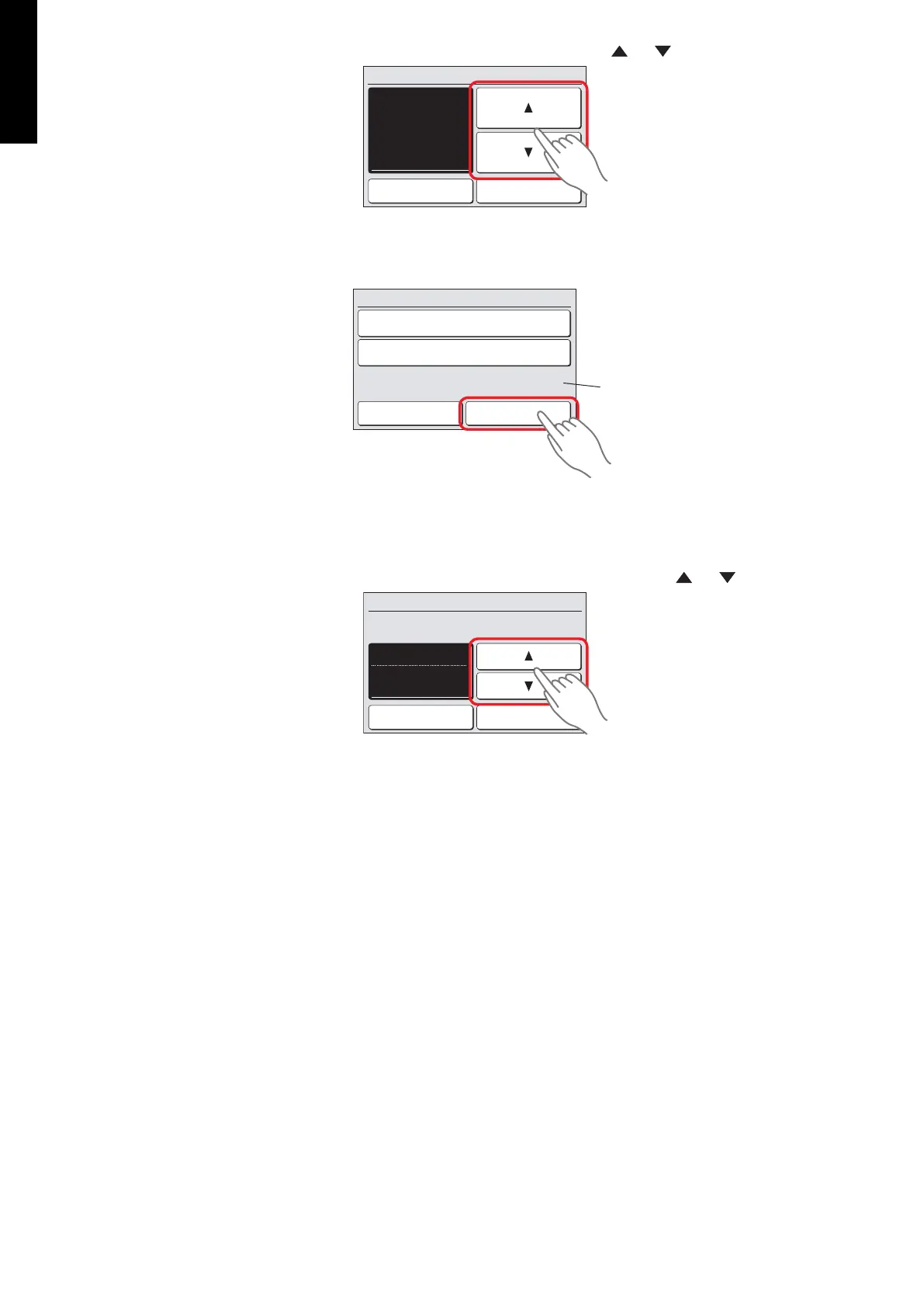

6. “Function No.” screen is displayed. Set the “Function No.” with or .
30
Function No.
Cancel OK
When the “OK” is touched, the display returns to the “Function Setting” screen.
7. Touch the “Function No.” on the “Function Setting” screen.
[002–01]
[30]
[00]
Address
Function No.
Setting No.
Function Setting
Back Setting
*1
NOTE: *1: When “All” is chosen by “5”, and different set up “Setting No.” from two or more in-
door units, “-” is displayed on “Setting No.”.
8. Setting screen of “Setting No.” is displayed. Set the “Function No.” with
or .
01
[002–01]
[30]
Function Setting
Cancel OK
Address
Function No.
Setting No.
Example: Function number: 30, Setting Number: 01
When the “OK” is touched, the “Function Setting” verification screen is displayed.
DESIGN & TECHNICAL MANUAL
- 232 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
