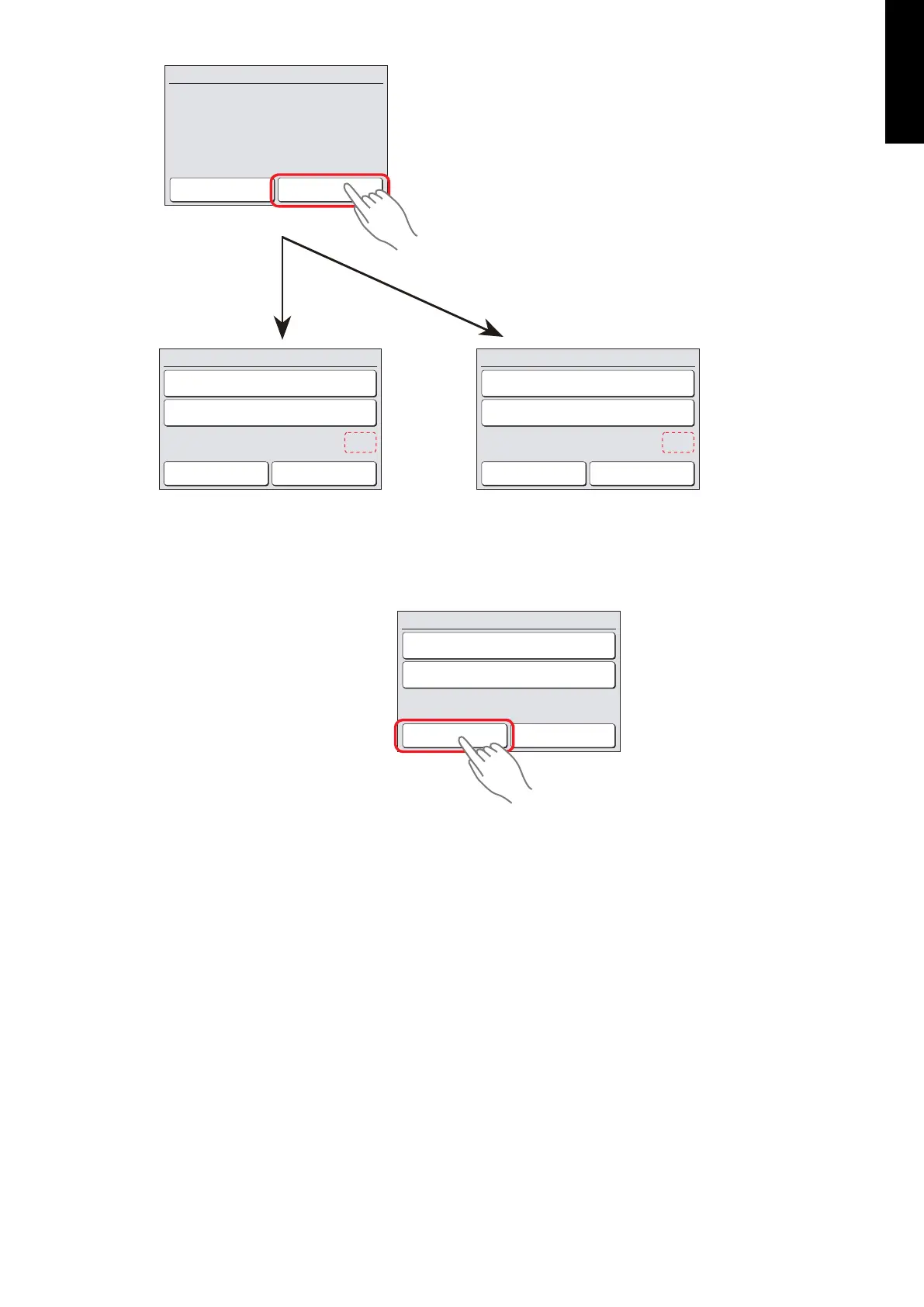

9. Touch the “Yes” of the verification screen.
No Yes
Function Setting
Function setting will be performed. OK?
[002–01]
[30]
[01]
Address
Function No.
Setting No.
Function Setting
Back Setting
[002–01]
[30]
[ – ]
Address
Function No.
Setting No.
Function Setting
Back Setting
In case of “ERROR”
In case of “OK”
When the data was normally set up
on the indoor unit
When the data was not set up
on the indoor unit ( [-] is displayed.),
set up the data again according
to the procedure in step 4 to 7 above
10. When the “Back” on the “Function Setting” screen is touched, the display returns to the
“Maintenance” screen.
[002–01]
[30]
[01]
Address
Function No.
Setting No.
Function Setting
Back Setting

Setting up each indoor unit
Repeat the procedure from step 1 to 6, and set up the indoor units requiring function setting.

Resetting the power after setting up function of all indoor units
NOTES:
• If the reset is not performed, function cannot be read correctly.
• After all the functions have been set, the circuit breaker needs to be switched off for at least 2
minutes.
– After the 2 minutes has passed, power can be restored.
– The set function is stored in the PCB and will remain in memory even when the power of
indoor unit is turned off.
However setting function is effective after disconnecting the power supply and then recon-
necting it.
• Record the latest configuration of the indoor unit function setting on a label, and put the label
on the unit so it can be used for after-sales service operations.
- 233 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
