Fujitsu AOYG36LBLA5 User Manual

¢
UTY-RSNYM

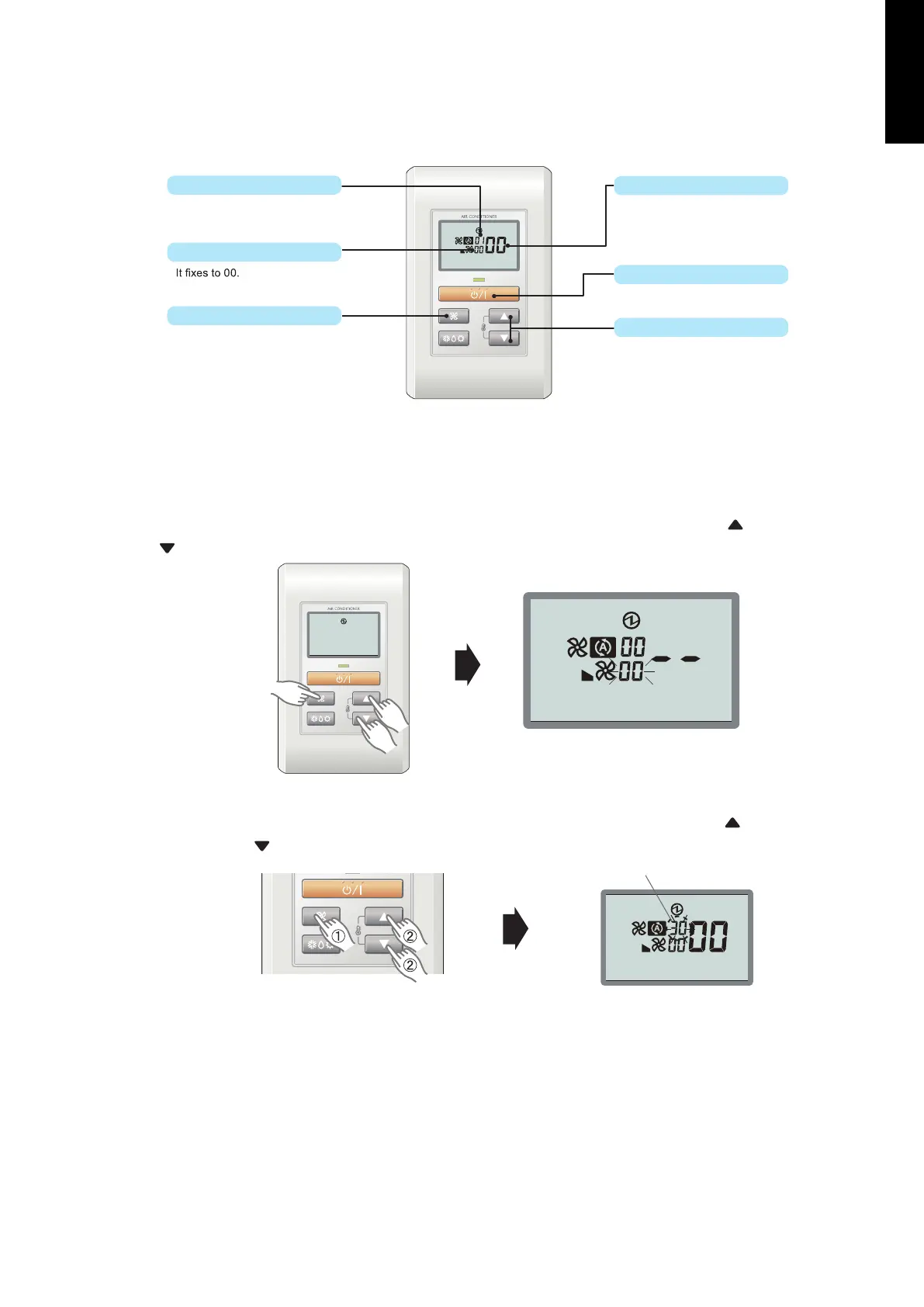

 Button name and function
During address setting mode, indoor unit reject the any operation command from remote con-
troller.
Function number
Refer to Function details
Remote controller address
FAN button
Each time this button is
pressed, the fan setting
changes among “Remote
controller address,” “Function
number” and “Setting number.”
Setting number
Refer to Function details
START/STOP button
Transmits function setting
SET TEMP. “

” and “

” button
Switches the various numbers.
 Function setting procedure
1. Connect the power supply of the outdoor unit.
2. Switch to the function setting mode.
To enter the function setting mode, hold down the 3 buttons of SET TEMP.
, SET TEMP.
and FAN at the same time for 5 seconds or longer.
Function setting mode initial display
3. Press the FAN button.
The Function number indicator flashes. Then, press either the SET TEMP. button or the
SET TEMP. button to set up the function number.
Function number
- 235 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
