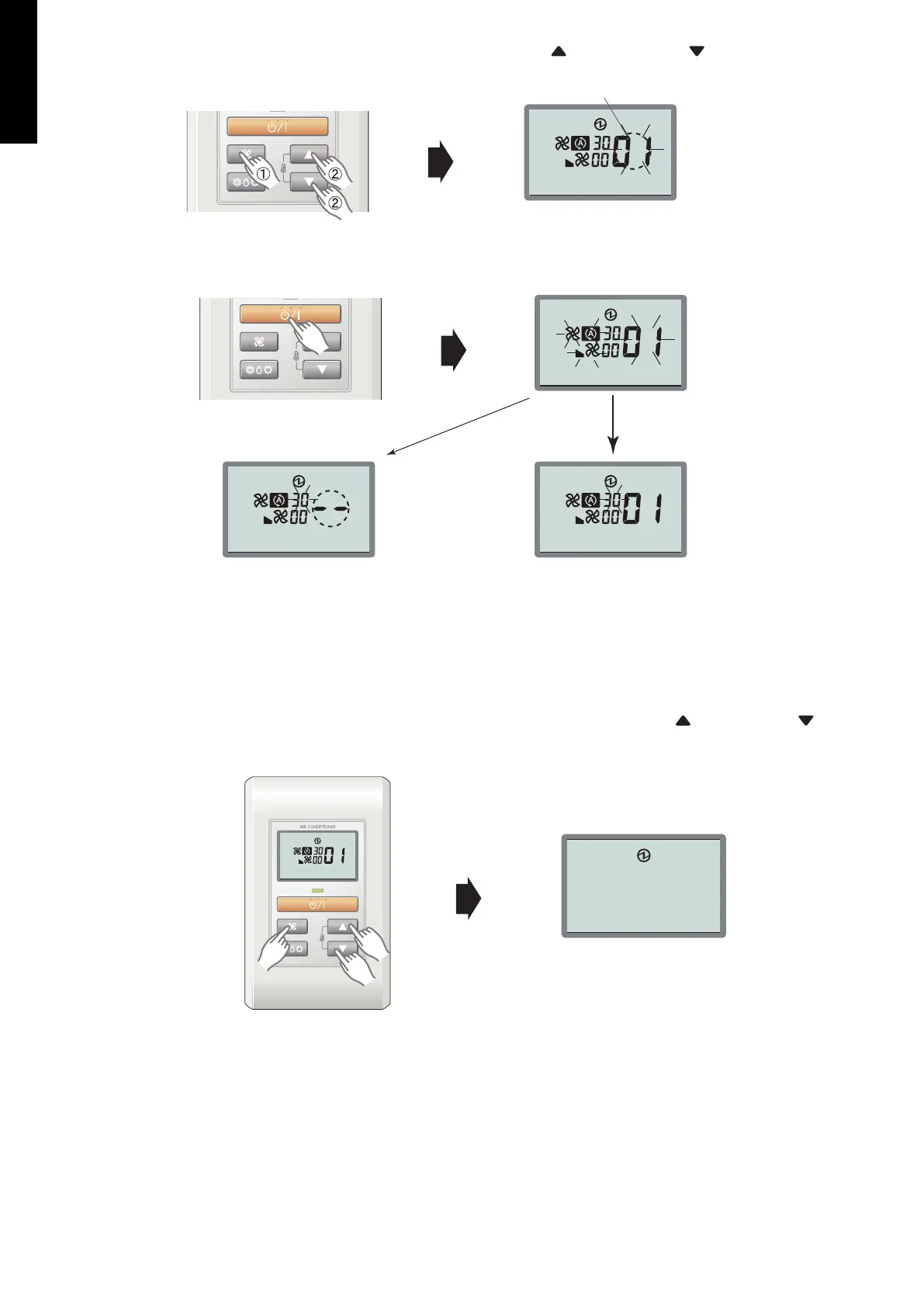

4. Select the setting number by pressing the SET TEMP. or SET TEMP. button.
The setting number indicator flashes during setting number selection.
Example) Function number : 30, Setting number : 01
Setting number
5. Confirm the setting by pressing the TIMER SET button.
The data will be transferred to the indoor unit.
Not good
Data is correctly set up on
the indoor unit.
● Data is not set up on the indoor unit
correctly (-- is displayed.)
● Set up the data again according to the
procedure in step 3, 4 above.
Good
Function details: Refer to Chapter 14-6. "Function details" on page 241.
6. Exit the function setting mode by pressing the 3 buttons of SET TEMP. , SET TEMP. ,
and FAN at the same time for 5 seconds or longer.
After exiting the function setting mode, the display returns to the normal mode.
Normal mode display
If no button is pressed within 60 seconds after buttons mentioned above are pressed, it will
automatically exit the function setting mode.
If you exit the function setting mode unintentionally during setting, enter the mode again ac-
cording to the procedure in step 2.
 Setting up each indoor unit
Repeat the procedures from step 1 to 6, and set up the indoor units requiring function setting.
DESIGN & TECHNICAL MANUAL
- 236 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
