Fujitsu AOYG36LBLA5 User Manual

¢

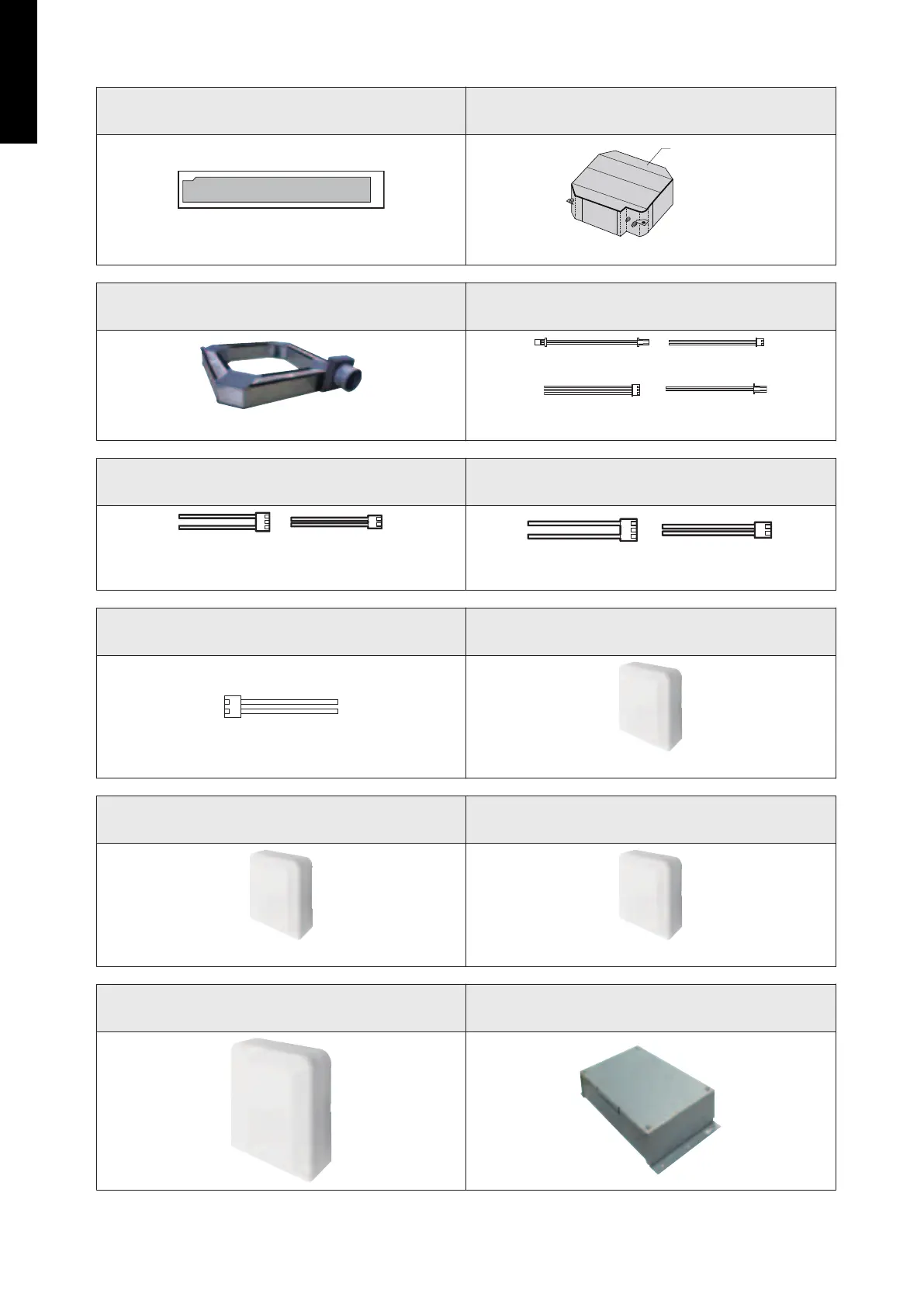

Parts
Air outlet shutter plate
Model: UTR-YDZB
Insulation kit for high humidity
Model: UTZ-KXGC
For compact cassette type
Insulation
kit
For compact cassette type
Fresh air intake kit
Model: UTZ-VXAA
External control set
Model: UTD-ECS5A
For compact cassette type
(×1) (×2)
(×1) (×2)
For slim duct type
External connect kit
Model: UTY-XWZX
External connect kit
Model: UTY-XWZXZ5
(
x 1
)(
x 1
)
For compact cassette type, wall mounted type (LF),
floor/ceiling type, and floor type
(
x 1
)(
x 2
)
For wall mounted (LU, LM) type
External connect kit
Model: UTY-XWZXZG
MODBUS converter
Model: UTY-VMSX
For mini duct type
For mini duct type
KNX converter
Model: UTY-VKSX
External switch controller
Models: UTY-TERX
For mini duct type For mini duct type
Split system converter
Model: UTY-VTGX
Split system converter
Model: UTY-VTGXV
DESIGN & TECHNICAL MANUAL
- 268 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
