4. After the check run is completed, results will be displayed. Fill the displayed results in the re-
sult table accordingly.

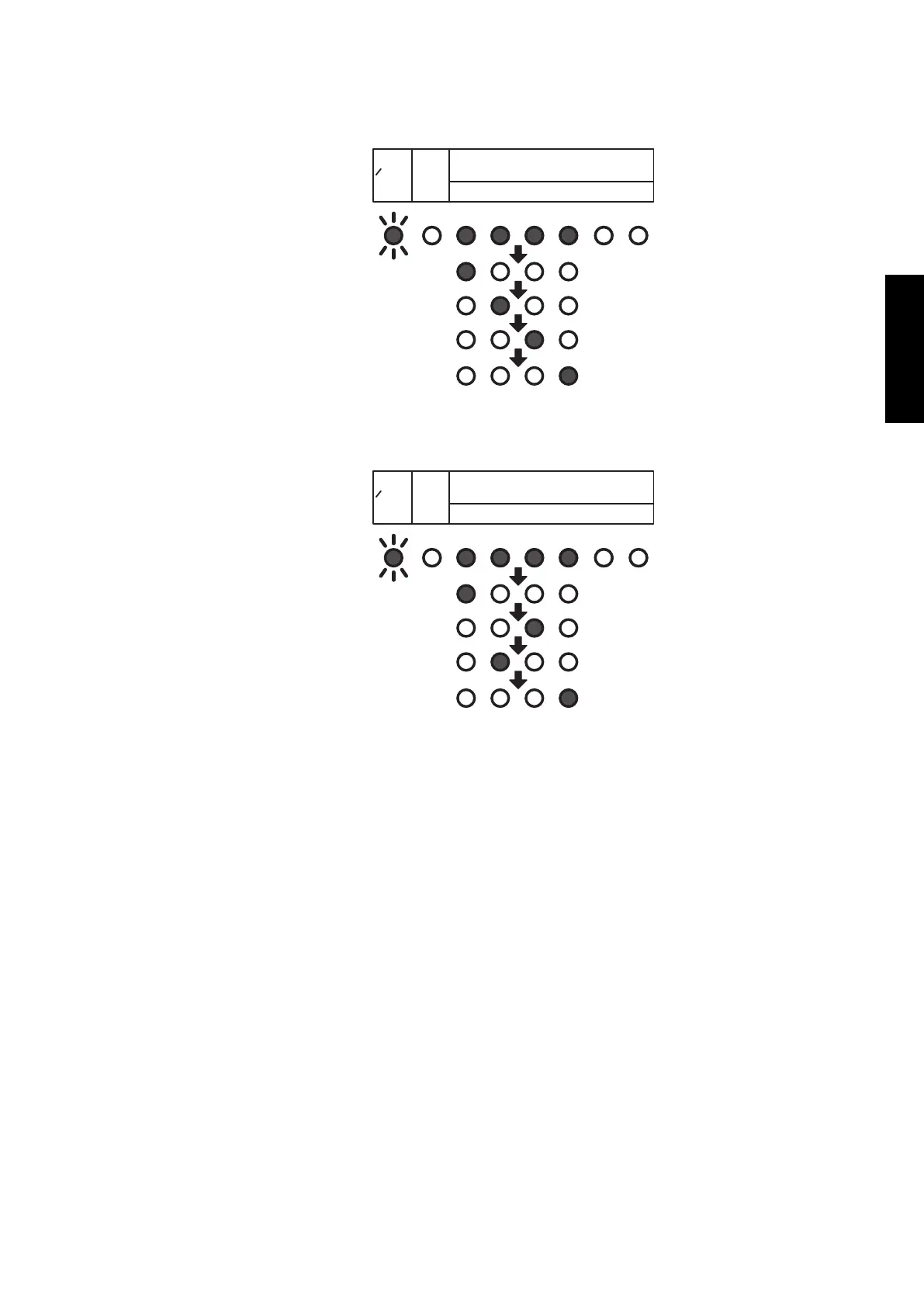

• If the connection is correct (Example: When 4 indoor units are connected)
After the number of connected units are displayed, the LED for each unit will light up in or-
der from A to D.
(2-blink)
(7 sec.)
(7 sec.)
(7 sec.)
(7 sec.)
FEDC
MONITOR
ERROR
BA
POWER
MODE
• If the connection is incorrect (Example: When connection of B and C of the 4 units
are reversed)
After the number of connected units are displayed, B and C will light up in reverse.
FEDC
MONITOR
ERROR
BA
POWER
MODE
(7 sec.)
(7 sec.)
(7 sec.)
(7 sec.)
(2-blink)
NOTES:
• Automatic wiring correction will not be completed if the power supply is disconnected
while displaying the results. To confirm the automatic wiring correction, be sure to carry
out step 5.
• If frost is formed on the outdoor unit while displaying the results, automatic defrost func-
tion will be operated. Proceed to step 5 after the defrost function is finished.
- 405 -
OUTDOOR UNIT AOYG45LBLA6

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
