Fujitsu AOYG36LBLA5 User Manual

[How to record the contents]
• Fill the displayed results according to the following example.
Example: When piping A to D is connected but the wires for B and C are connected in re-
verse.
<Displayed results>

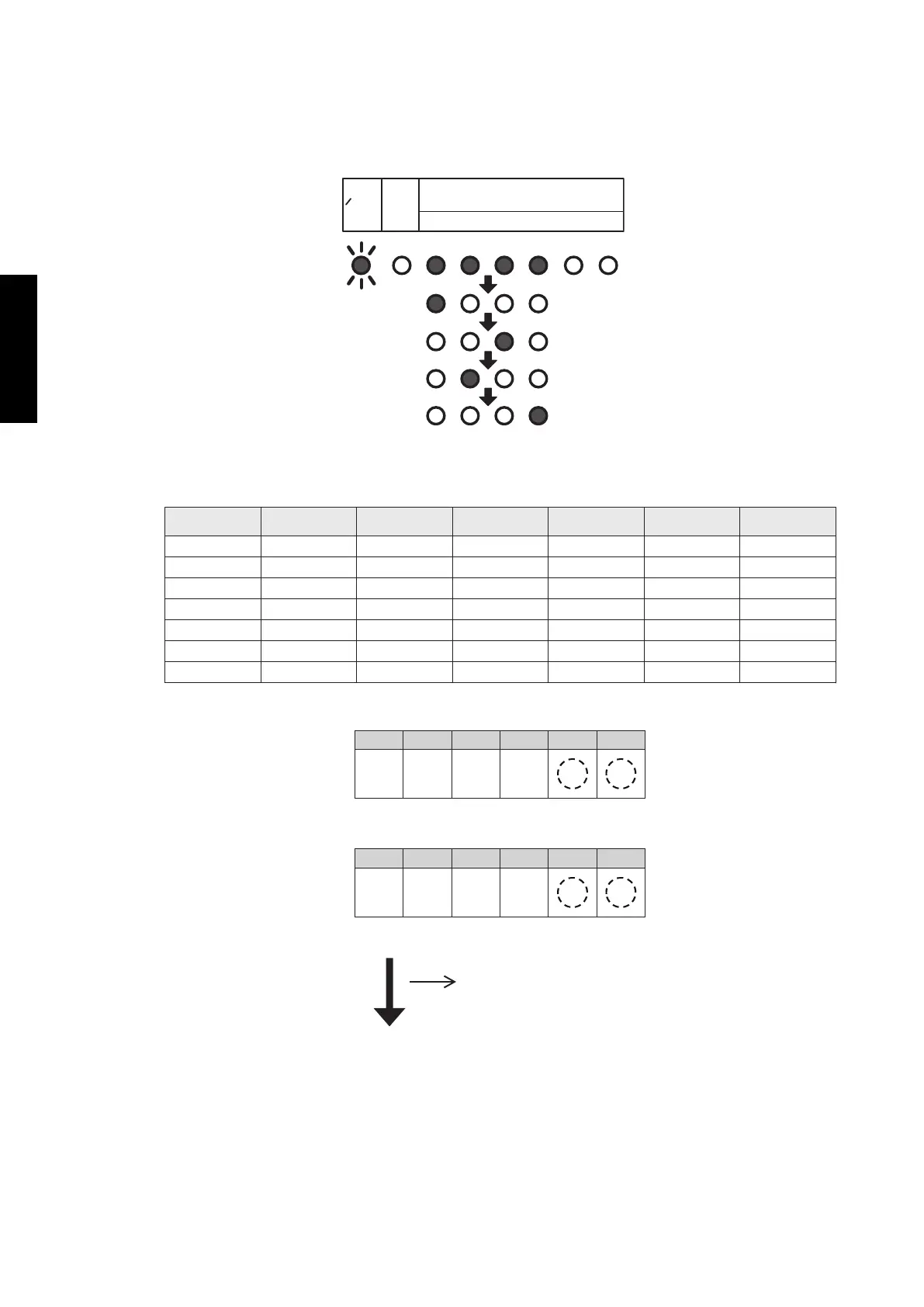

The LEDs will light up in 7 second intervals in the following order.
FEDC
MONITOR
ERROR
BA
POWER
MODE
(2-blink)
(7 sec.)
(7 sec.)
(7 sec.)
(7 sec.)
<Example of result table>
a. Please write a ● where the LEDs light up in the order that they light up.
A B C D E F
1 ● ● ● ● ◌ ◌
2 ● ◌ ◌ ◌ ◌ ◌
3 ◌ ◌ ● ◌ ◌ ◌
4 ◌ ● ◌ ◌ ◌ ◌
5 ◌ ◌ ◌ ● ◌ ◌
6 ◌ ◌ ◌ ◌ ◌ ◌
7 ◌ ◌ ◌ ◌ ◌ ◌
b. Based on the results of step (a), please record as follows.
• Trace the dotted circle with a pen if multiple places light up.
ABCDE F

• Write the order from A to D in which the LEDs lit up inside the circle.
ABCDE F

A
B
C
D
c. Select the correction method.
Correct the wiring manually.*2
Proceed to step 6.
Use the Automatic wiring correction function.*1
Proceed to step 5.
Write down the same results in the label on the reverse side of the service panel.
The results recorded are needed at the time of servicing.
DESIGN & TECHNICAL MANUAL
- 406 -
OUTDOOR UNIT AOYG45LBLA6

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
