Fujitsu ARU7RLF - Wall Mounted Type

4-3. Wall mounted type
¢
Models: ASU7RLF1, ASU9RLF1, ASU12RLF1, and ASU15RLF1
- 32 -

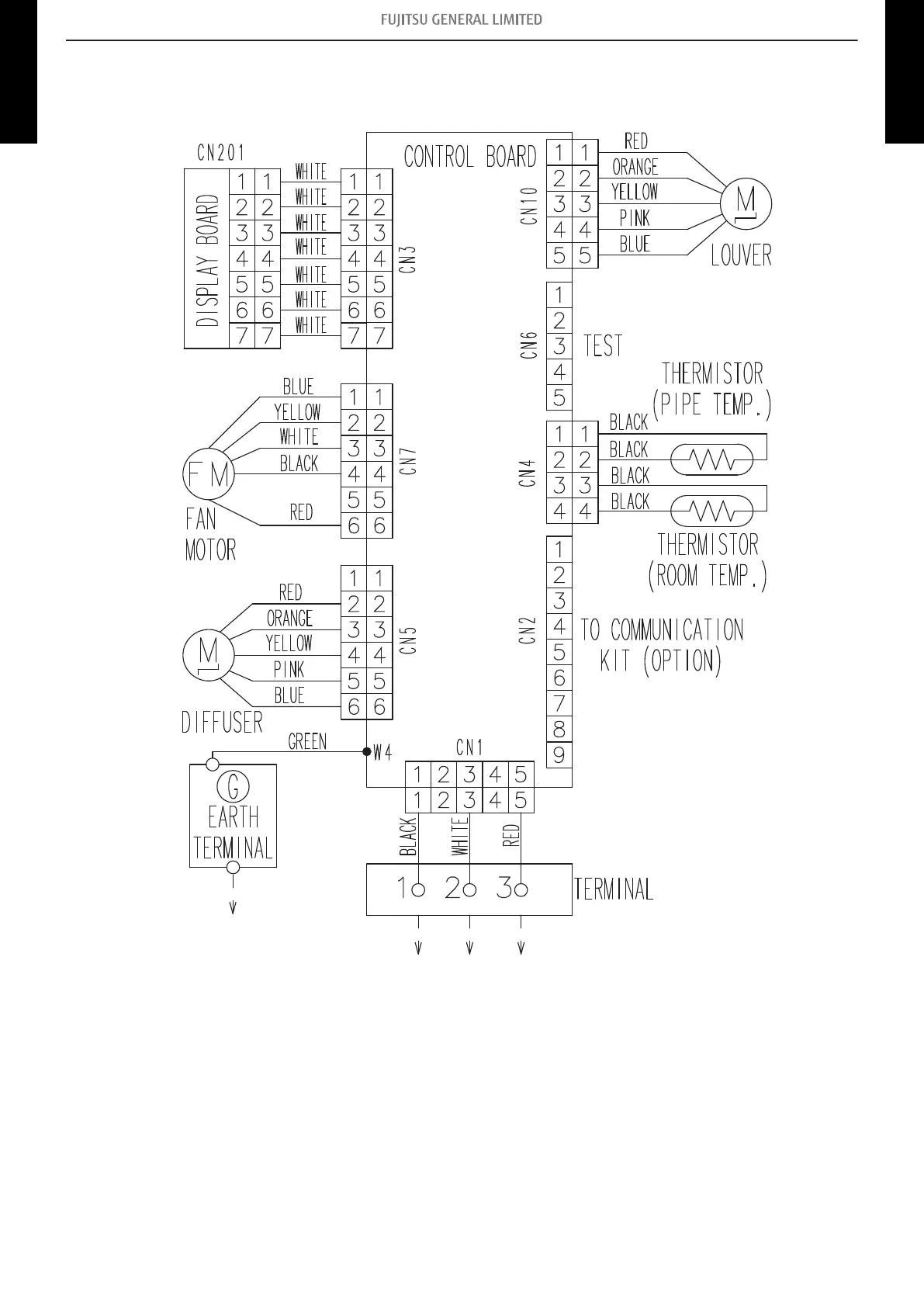

4-3. Wall mounted type 4. Wiring diagrams
MULTI TYPE 2, 3, 4 ROOMS TYPE MULTI TYPE 2, 3, 4 ROOMS TYPE
