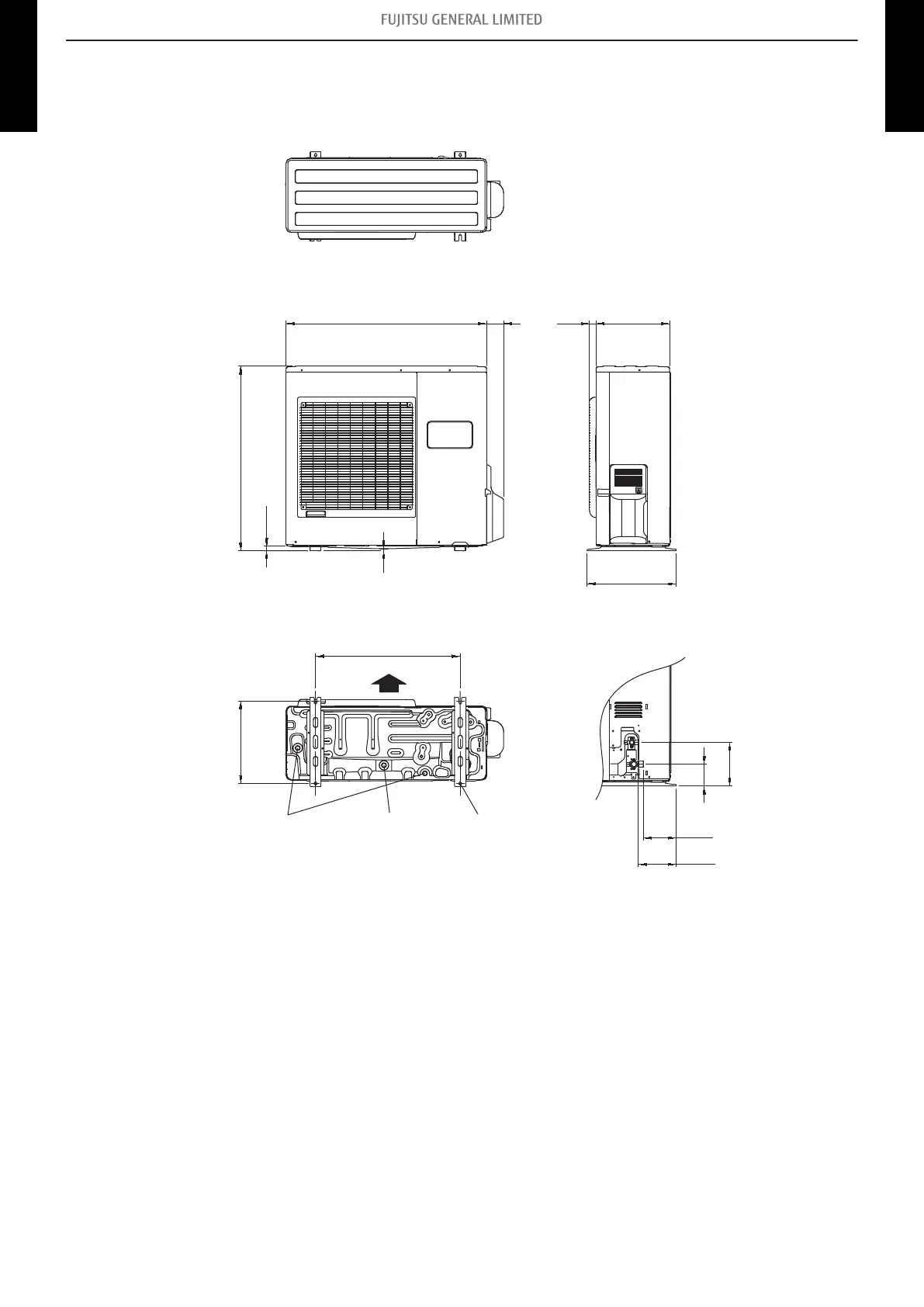

2-2. Outdoor unit
¢
Model: AOTG30KMTC
900
650
830
370
99
196
21
9
77
31 330
400
170
147
Top view
Front view Side view
Bottom view
Airflow
4-Ø12 mm hole
Drain cap
mounting places
Drain pipe
mounting place
Unit: mm
2-2. Outdoor unit - (01-5) - 2. Dimensions
