2. Function settings (For outdoor unit: AOTG34KMTC only)
Perform appropriate function setting locally according to the installation environment.
NOTE: Incorrect settings can cause a product malfunction.
CAUTION
•
Before setting up the switch buttons, discharge the static electricity from your body.
• Never touch the terminals or the patterns on the parts that are mounted on the PCB.
2-1. Local setting switch buttons

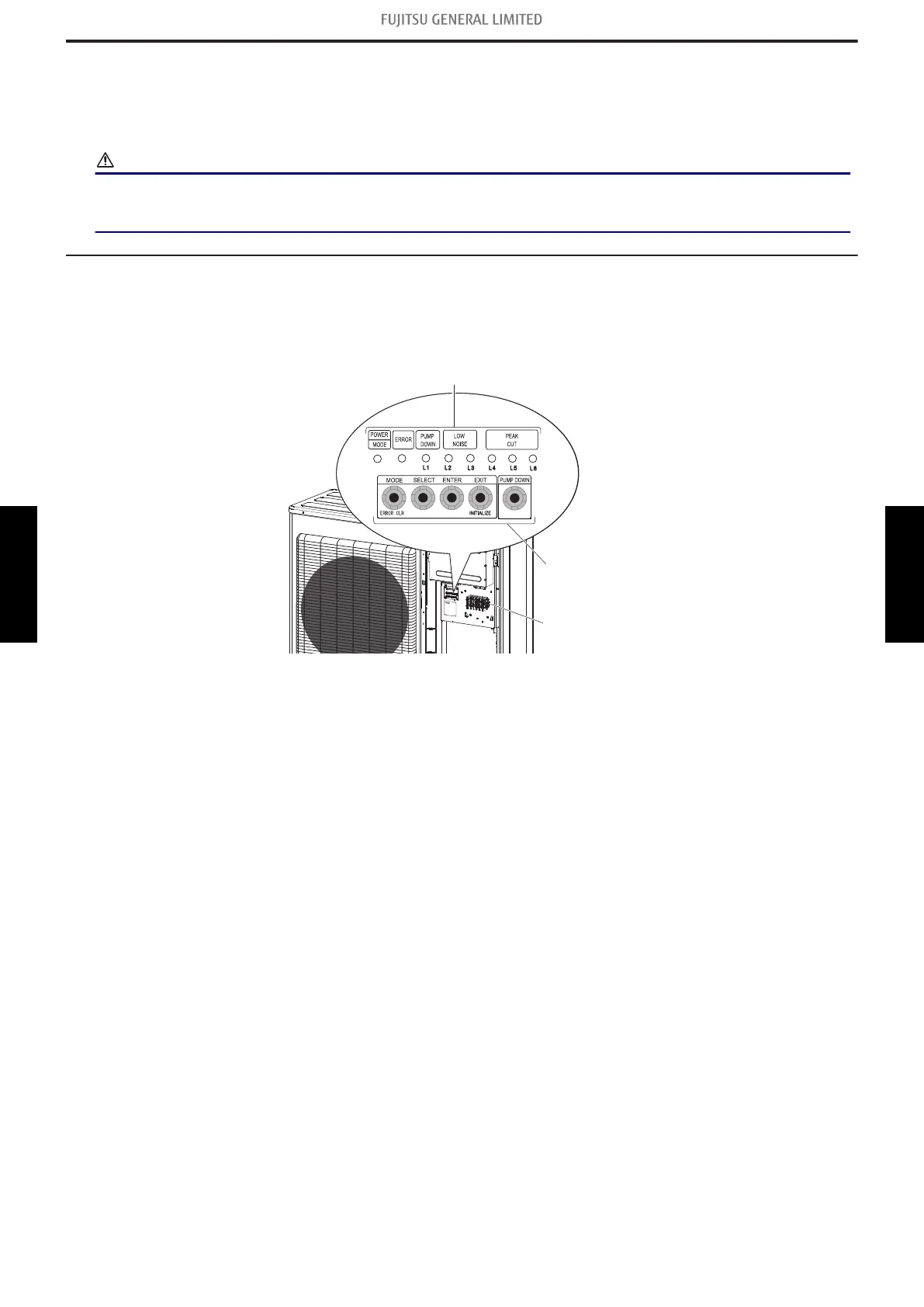

¢ Control PCB and switch buttons location
Control PCB of the outdoor unit is located as shown in the following figure.
LED lamps
Switch buttons
Terminal block
2-1. Local setting switch buttons - (05-10) - 2. Function settings (For outdoor unit: AOTG34KMTC only)
