Compressor status output
Signal on compressor operation status is generated when the compressor is running.

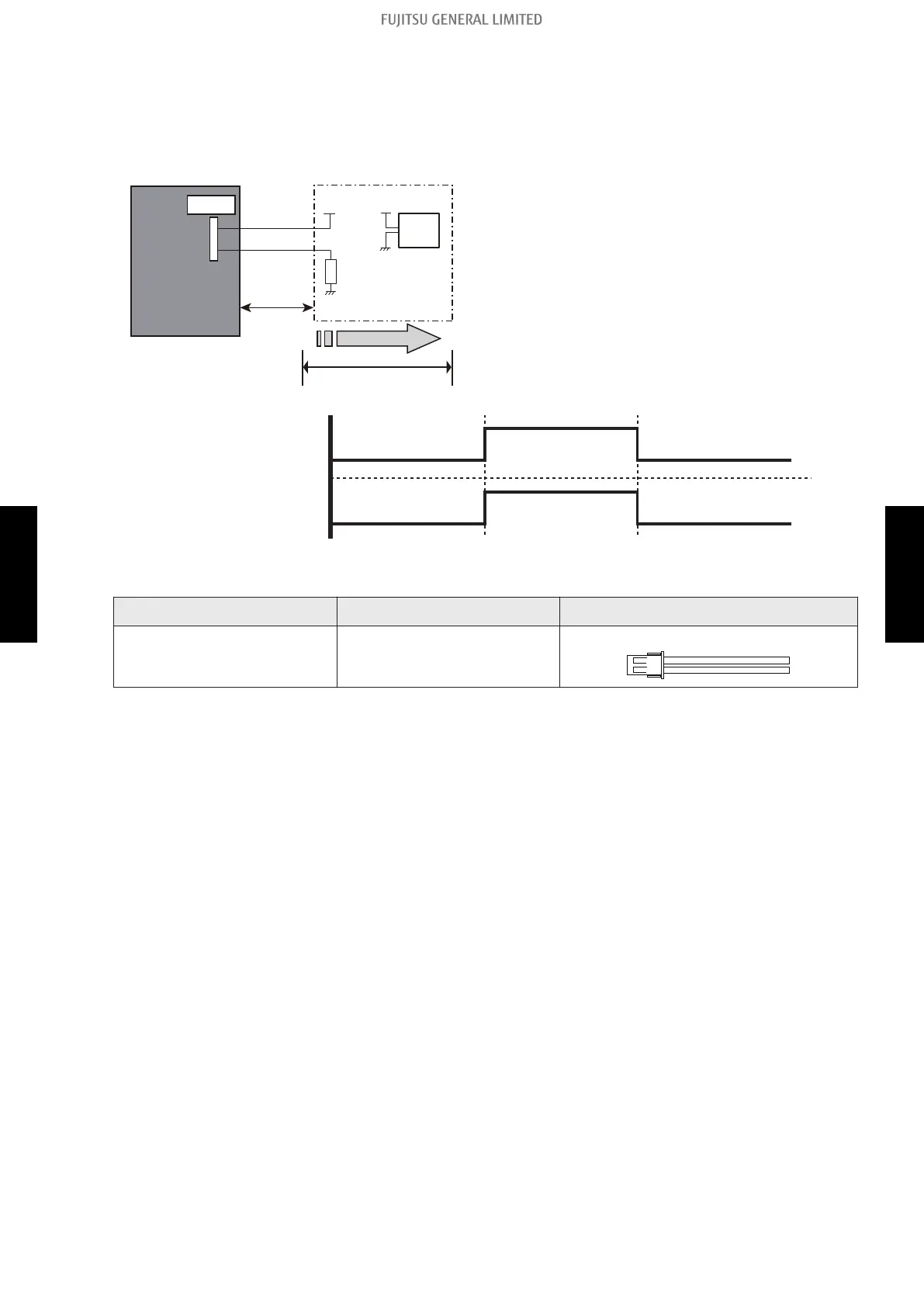

• Circuit diagram example
Signal
Outdoor unit
control PCB
Connected unit
Connector
1
2
Locally purchased
10 m*
Vcc
+
+
-
Load
Vcc
Power
supply
• 1: Power supply
Voltage (Vcc): DC 24 V or less
•
2: Load
DC 500 mA or less
• *: Make the distance from the PCB to the
connected unit within 10 m.
Operation
Stop
On
Off
Compressor
status
Output signal
• Optional part
Part name Model name Exterior
External connect kit UTY-XWZXZ3
External output wire
4-2. External output - (05-35) - 4. External input and output (For outdoor unit: AOTG34KMTC only)
